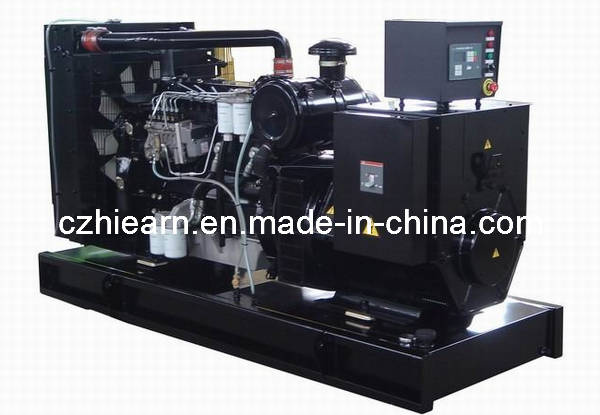

Cummins Diesel Generator Set (GF-20KW)
Model: GF-20KW
Frequency(Hz) 50/60 50/60 50/60 50/60
Max. Output(kw/kVA) 12/15.0 13.2/16.5 16.5/21 22/28
Rated output(kw/kVA) 10/12.5 12/15.0 15/18.75 20/25
Rated voltage(v) 400/230 400/230 400/230 400/230
Power factor(cos) 0.8 0.8 0.8 0.8
Rated currency(A) 18 22 27 36
Phase 3-Phase 4-wire
Starting system Electirc
Fuel tank capacity(L) with small fuel tank for the10KW, 12KW and 15KW
Continues work(hr) 5 to 6 hours 5 to 6 hours 5 to 6 hours
ENGINE Model 295D 2100D 2100D 495D
Cylinder Number 2 2 2 4
(L) 1.63 1.81 1.81 3.26
Borexstroke(mm) 95x115 100X115 100x115 95x115
Fule(g/kw. H) 258 263 263 258
DIMENSION Dimension(LxWxH)(mm) 1650x700x1100 1650x700x1100 1850x750x1330 1850x750x1330
Dry weight(kg) 630 650 760 770
20FT 12 12 12 12
|
ENGINE DATA |
|
Manufacturer/Model: |
DCEC Cummins 4B3.9-G1,4-cycle |
|
Air Intake System: |
Air natural cooled |
|
Fuel System: |
A model fuel pump |
|
Cylinder Arrangement: |
4 in line |
|
Displacement: |
3.9L |
|
Bore and Stroke: |
102×120(mm) |
|
Compression Ratio: |
16.5:1 |
|
Rated RPM: |
1500rpm |
|
Max.Standby Power at Rated RPM: |
27KW / 36.7HP |
|
Governor Type: |
RSV Mechanical(Std) / Electronic(Optional) |
|
Exhaust System |
|
Exhaust Gas Flow: |
4.27m3/min |
|
Exhaust Temperature: |
410 degree |
|
Max Back Pressure: |
10kPa |
|
Air Intake System |
|
Max Intake Restriction: |
5kPa |
|
Buring Capacity: |
1.98m3/min |
|
Intake Flow: |
136m3/min |
|
Fuel System |
|
100%(Prime Power) Load: |
228 g/Kw.h |
|
75%(Prime Power) Load: |
229 g/Kw.h |
|
75%(Prime Power) Load: |
240 g/Kw.h |
|
Oil System |
|
Total Oil Capacity: |
11L |
|
Oil Consumption: |
≤ 4g/kwh |
|
Engine Oil Tank Capacity: |
9.5L |
|
Oil Pressure at Rated RPM: |
345kPa |
|
Cooling System |
|
Total Coolant Capacity: |
21L |
|
Thermostat: |
82-95 degree |
|
Max Water Temperature: |
104 degree |
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
