Cummins Series Diesel Generator Set Industrial Diesel Generator (GF1-65kVA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

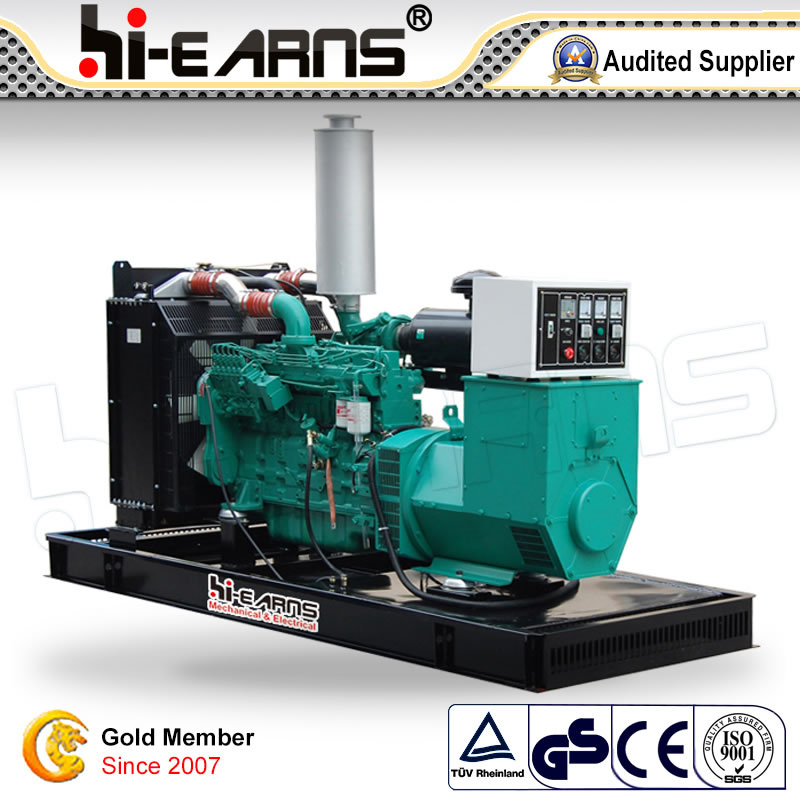

65KVA open frame cummins generator set(GF1-65KVA)
1)Cummins engine, Stamford/Engga/Marathon alternator
2)Low fuel consumption
3)Good quality and after service
4)Silent type or openframe type are choosed by you
5)Also different famous water-cooled diesel engine can be choosed by you like

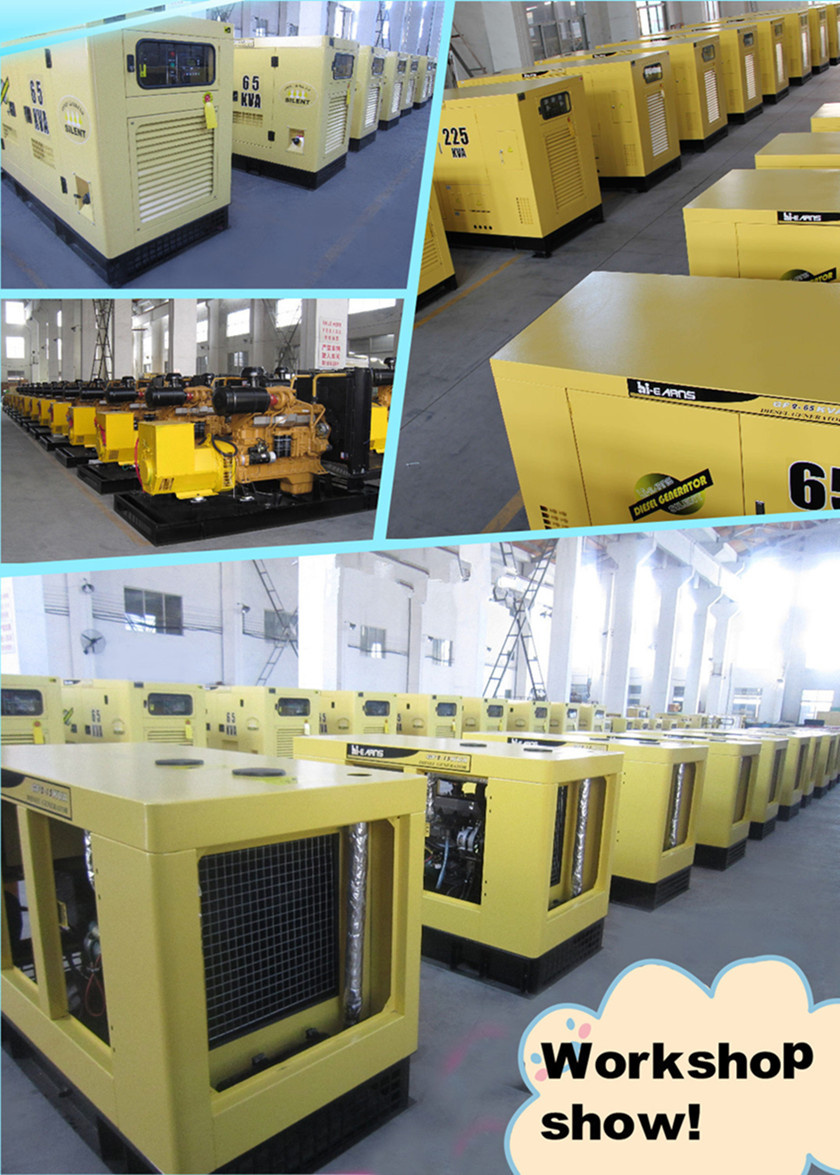

Workshop show:

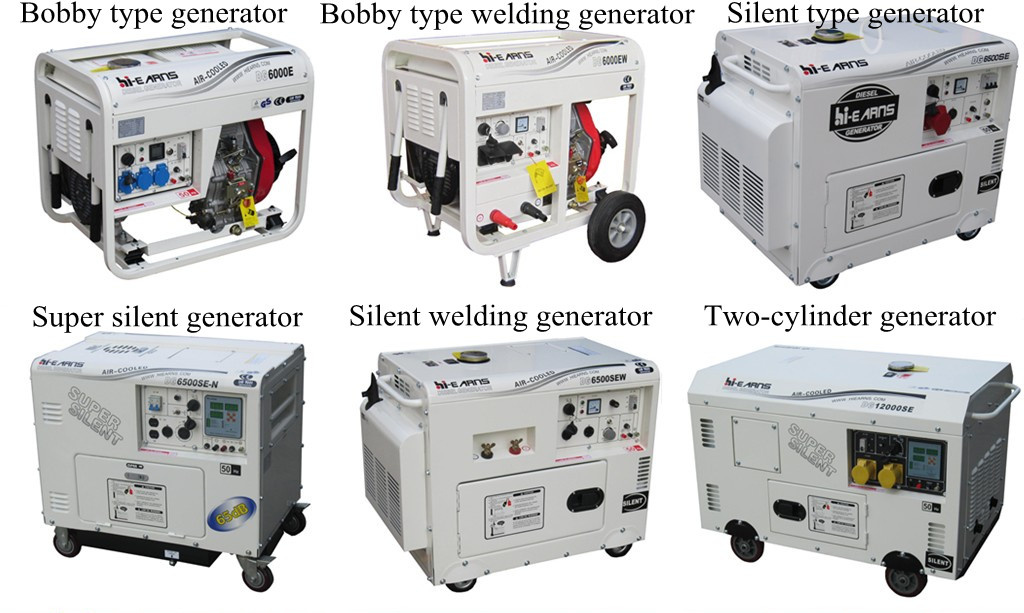

Air-cooled diesel generator main product:
We are professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
| MODEL | GF- 65KVA |
| Standby Power (50HZ ) | 54KW / 68KVA |
| Prime Power (50HZ ) | 50KW / 63KVA |
| Voltage | Frequency | Phase | P.F | Standby Amps | Standby Ratings | Prime Ratings |
| 440/254 | 50 | 3 | 0.8 | 89 | 54/68 | 50/63 |
| 415/240 | 50 | 3 | 0.8 | 94 | 54/68 | 50/63 |
| 400/230 | 50 | 3 | 0.8 | 97 | 54/68 | 50/63 |
| 380/220 | 50 | 3 | 0.8 | 103 | 54/68 | 50/63 |
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility
power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. |
| Prime Power(PRP) : Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528);A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. |
| ENGINE DATA |
| Engine Type / : | DCEC Cummins 4BTA3.9-G2,4-cycle |
| Air Intake System : | Turbo,Water/Air DC |
| Fuel System : | AD type fuel pump AD |
| Fuel Consumption ( ≤ g/kw.h) | ≤ 216 |
| Cylinder Arrangement : | 4 in line |
| Displacement : | 3.9L |
| Bore×Stroke × : | 102×120(mm) |
| Compression Ratio : | 16.5:1 |
| Rated RPM : | 1500rpm |
| Max.Standby Power at Rated RPM : | 65KW / 88.4HP |
| Governor Type : | Electronic Speed Control System |
| Max Water Temperature : | 100 |
| ALTERNATOR DATA |
| General Data |
| Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 standards. GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS 1359 . |
| Alternator Data |
| Number of Phase : | 3 |
| Connecting Type : | 3 Phase and 4 Wires,"Y" type connecting |
| Number of Bearing : | 1 |
| Power Factor : | 0.8 Lag |
| Protection Grade : | IP23 |
| Altitude : | ≤ 1000m |
| Exciter Type : | Brushless,self-exciting |
| Insulation Class,Temperature Rise | H/H |
| Telephone Influence Factor(TIF) : | < 50 |
| THF : | < 2% |
| Voltage Regulation,Steady State : | ≤ ±1% |
| Alternator Capacity : | 62KVA |
| Alternator Efficiencies : | 88.80% |
| Air Cooling Flow : | 0.216m3/s |
| Dimension & Weight |
| Open Type | Soundproof Type |
| Overall Size :1.80(m)×0.75(m)×1.45(m) | Overall Size :2.40(m)×1.00(m)×1.45(m) |
| Weight : 930 kg | Weight : 1450kg
|
| Prod Model: |
GF1-65KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Model: |
Dcec Cummins 4BTA3.9-G2 |
| Engine Power: |
88.4HP |
| Engine Speed: |
1500rpm |
| Engine Cylinder: |
4 in Line |
| Generator Output: |
65kVA |
| Stroke: |
Four Stroke |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Portable |
| Output Type: |
AC Three Phase |
