1. Cummins marine generator OEM
2. One year warrenty
3. CCS, BV approved
4. Reliable quality & competitive price
5. 24V DC start motor
|
Technical data |
|
Genset Model |
CCFJ200YW |
|
Prime Power |
200KW |
|
Rated Voltage |
400/230V |
|
Frequency |
50Hz |
|
Power Factor |
0.8 |
|
Dimension (L× W× H) (mm) |
2580*980*2290 |
|
Genset weight (kg) |
3100 |
|
Diesel Engine |
|
Brand |
Cummins |
|
Number of Cylinders |
6 |
|
Rotating Speed |
1500RPM |
|
Cycle |
Four stroke |
|
Aspiration |
Turbocharged after water-cooled |
|
Bore× Stroke(mm) |
140*152 |
|
Displacement(L) |
14 |
|
Speed Governor |
Electrical |
|
Cooling System |
Water-cooled |
|
Compression ratio |
0.8 |
|
Fuel Consumption at 100% Load |
208g/kwh |
|
Starting Method |
DC24V Electrical starting |
|
Alternator |
|
Brand |
Marathon |
|
Model |
MP-H-200-4 |
|
Number of Phase |
3 |
|
Connecting Type |
3 Phase and 4 Wires |
|
Protection Grade |
IP23 |
|
Exciter Type |
Brushless, Self-exciting |
|
Insulation Class |
H |
|
The components of the genset |
|

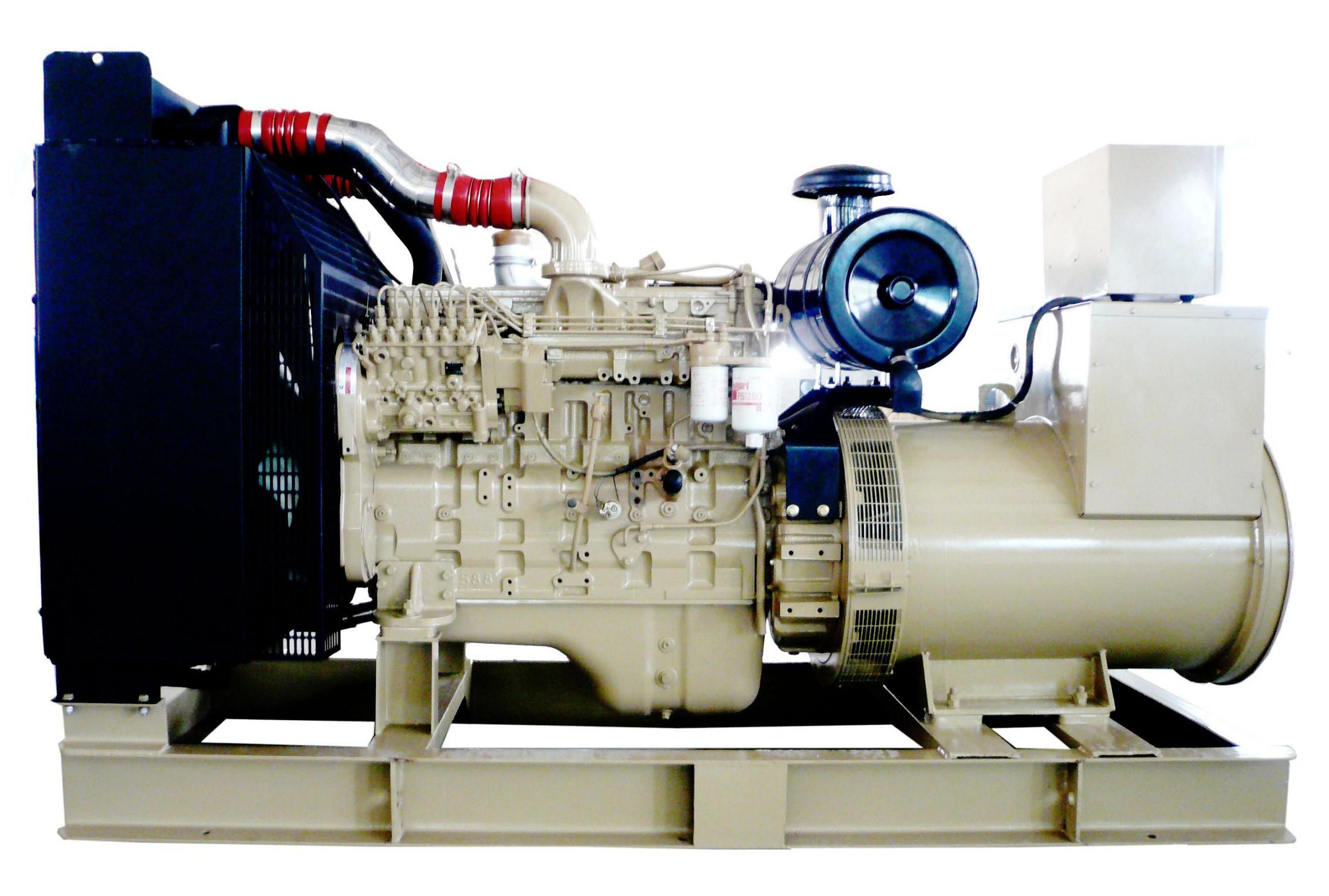

(1) Cummins Diesel Engine; (2)Marathon Alternator; (3) Control Panel |
|
Control Panel |
|
The control panel is AMF control panel, with the display of voltage, current, frequency, water temperature, oil pressure. The genset with low oil pressure, high water temperature, over speed, over load protection function |
