Cummins Diesel Generator Genset

Cummins Diesel Generator Genset
Price: US $ 15000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Power World Machinery Equipment Co., Ltd.
Showroom Product Company Profile

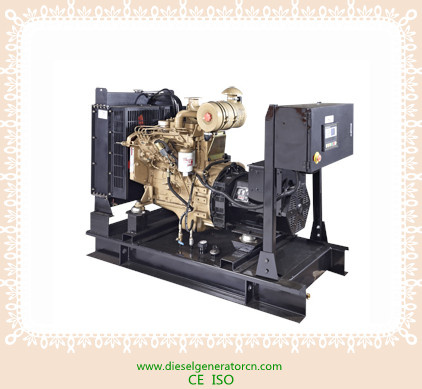

Cummins Diesel Generator Genset

POWER WORLD Cummins Diesel Generator powered by CUMMINS engine power ranging from 20kw -1000kw. These CUMMINS power diesel engines range very adequately cover a wide variety of automotive applications, including pick up trucks, medium and heavy-duty trucks, buses, also industrial and construction equipment, generator sets, marine and agricultural machinery.

As the largest foreign diesel generator engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd ( produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd( produce B, C, L series engine) and produce CUMMINS engines with globally uniform quality standard.
We pride ourselves in providing the best CUMMINS diesel generators available in the world market today.

Cummins Diesel Generator main features:
Cummins water cooled diesel engine
Eletric starter& Charger altimeter 24V DC
Electronic governor
Single bearing alternator,
1500rmp, 50Hz or 1800rmp, 60Hz, 400/230V
Exciter/Voltage reg-Torque Match as standard
3-circuit breaker
Welding steel bas with vibration block base
Silencer
Starting storage battery
Contract plastic film for package
Manual and machinery description
Open type, soundproof/weatherproof canopy are optional.
Power World CUMMINS Generator Set Technical Data (50HZ)
Genset Type  Frequency 50Hz Power Factor0.8  (delay)400V  3Phase 4Wire Rate Fuel Consumption Cummins Series Engine Model(1500rpm) Engine Open frame Dimension(mm) L *W*H N.W. (kg)
Prime Power Standby Power Diesel (L/h)
(KW) (KVA) (KW) (KVA)
PC22 20 25 22 27.5 5.5 4B3.9-G2 1850 *850*1100 900
PC33 30 37.5 33 41.25 9 4BT3.9-G2 1850 *850*1100 1000
PC45 40 50 45 56 12 4BTA3.9-G2 1850 *850*1100 1100
PC55 50 62.5 55 68 14 6BT5.9-G2 2150 *850*1100 1200
PC64 58 72.5 64 80 17 6BT5.9-G2 2150 *850*1100 1250
PC77 70 87.5 77 96 19 6BT5.9-G2 2280 *850*1100 1300
PC82 75 93.75 82 102.5 21 6BT5.9-G2 2280 *850*1100 1350
PC88 80 100 88 110 23 6BT5.9-G2 2280 *850*1100 1400
PC100 90 112.5 100 125 26 6BTA5.9-G2 2400 *830*1120 1550
PC114 104 130 114 142.5 30 6BTAA5.9-G2 2400 *830*1120 1700
PC132 120 150 132 165 36 6CTA8.3-G 2650 *950*1300 2100
PC154 140 175 154 192.5 40 6CTA8.3-G2 2650 *950*1300 2150
PC165 150 187.5 165 206 42 6CTA8.3-G2 2650 *950*1300 2200
PC176 160 200 176 220 44 6CTAA8.3-G2 2650 *1150*1300 2300
PC200 200 250 220 275 50 6LTAA8.9-G2 3000*980*1530 3100
PC220A 200 250 220 275 55 MTA11-G2A 3150*990*1777 2800
PC220B 200 250 220 275 55 NT855-GA 3000*980*1530 3100
PC250 228 285 250 312.5 65 NTA855-G1A 3100*980*1530 3200
PC275 250 312.5 275 343 70 NTA855-G1B 3150*980*1530 3250
PC280 250 312.5 280 350 70 MTAA11-G3 3000*1000*1600 3000
PC286 260 325 286 357.5 72 NTA855-G2A 3150*980*1530 3300
PC310A 280 350 310 387.5 76 NTA855-G2A 3150*980*1530 3400
PC310B 280 350 310 387.5 78 NTA855-G4 3150*980*1530 3500
PC330A 300 375 330 412.5 83 NTAA855-G7A 3220*1380*1550 3600
PC330B 300 375 330 412.5 83 KTA19-G2 3300*1250*1800 4200
PC360 320 400 360 450 86 NTAA855-G7A 3300*1380*1550 3700
PC400 360 450 400 500 97 KTA19-G3 3550*1250*1800 4350
PC440 400 500 440 550 107 KTA19-G4 3550*1250*1800 4800
PC500 450 562.5 500 625 117 KTAA19-G5 3750*1920*2300 5000
PC520 460 575 520 650 123 KTAA19-G6 3750*1920*2300 5400
PC550A 500 625 550 687.5 130 KTAA19-G6A 3750*1920*2300 5400
PC550B 500 625 550 687.5 140 KT38-G 4600*1630*2320 8600
PC620 560 700 620 775 156 KTA38-G2 4650*1630*2320 8950
PC660 600 750 660 825 167 KTA38-G2 4650*1630*2320 8950
PC704 640 800 704 880 170 KTA38-G2A 4650*1630*2320 9250
PC800 728 910 800 1000 194 KTA38-G2A 4600*1630*2320 9450
PC880 800 1000 880 1100 212 KTA38-G5 4850*1830*2400 9650
Power World CUMMINS Generator Set Technical Data (60HZ)
Genset Type  Frequency 60Hz Power Factor0.8  (delay)400V  3Phase 4Wire Rate Fuel Consumption   Cummins Series Engine Model(1800rpm) Open frame Dimension(mm) N.W. (kg)
Prime Power Standby Power Diesel (L/h) Engine
(KW) (KVA) (KW) (KVA) L *W*H
P22C-60 20 25 22 27.5 6 4B3.9-G2 1600 *830*1300 950
P26C-60 24 30 26 32.5 7.2 4B3.9-G2 1800 *830*1300 950
P36C-60 32 40 36 45 9.6 4BT3.9-G2 1800 *830*1300 1000
P45C-60 40 50 45 56 12 4BT3.9-G2 1850 *830*1300 1000
P55C-60 50 62.5 55 69 14 4BTA3.9-G2 1950 *830*1300 1250
P60C-60 56 70 60 75 16 4BTA3.9-G2 2150 *830*1430 1300
P77C-60 70 87.5 77 96 19 6BT5.9-G2 2150 *830*1430 1350
P88C-60 80 100 88 110 23 6BT5.9-G2 2350 *950*1430 1350
P100C-60 90 112.5 100 125 26 6BT5.9-G2 2350 *950*1430 1400
P110C-60 100 125 110 137.5 30 6BTAA5.9-G2 2650 *950*1600 1750
P132C-60 120 150 132 165 36 6BTAA5.9-G2 2650 *950*1600 1800
P154C-60 140 175 154 192.5 40 6CTA8.3-G2 2650 *950*1600 1900
P176C-60 160 200 176 220 44 6CTA8.3-G2 2650 *950*1600 2000
P200C-60 180 225 200 250 48 6CTAA8.3-G2 2650 *950*1600 2200
P220C-60 200 250 220 275 54 NTA855-G1 2850 *9501600 2600
P250C-60 228 285 250 312.5 62 NTA855-G1 2850 *950*1600 2750
P275C-60 250 312.5 275 344 70 NTA855-G1 2850 *1000*1600 2900
P310C-60 280 350 310 387.5 76 NTA855-G2 3000 *1000*1600 3100
P330C-60 300 375 330 412.5 83 NTA855-G3 3000 *1000*1600 3250
P360C-60 320 400 360 450 90 NTA855-G3 3000 *1000*1600 3250
P400C-60 360 450 400 450 97 KTA19-G2 3400 *1200*1900 4000
P440C-60 400 500 440 550 107 KTA19-G3 3400 *1860*1900 4300
P500C-60 460 575 500 625 118 KTA19-G4 3400 *1200*1900 4800
P560C-60 500 625 560 700 132 KTAA19-G5 3800 *1860*1900 5000
P600C-60 560 700 600 750 150 KTAA19-G7 4000 *1700*2100 5400
P660C-60 600 750 660 825 167 KT38-G 4600 *1650*2400 8600
P750C-60 680 850 750 937.5 185 KTA38-G2 4600 *1800*2400 8950
P800C-60 728 910 800 1000 194 KTA38-G2 4600 *1800*2400 8950
P920C-60 840 1050 920 1150 212 KTA38-G4 4800 *1800*2400 9650
P1000C-60 900 1125 1000 1250 230 KTA38-G4 4800 *1800*2400 9650

Prod Model: PowerWorld
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Self-Starting Diesel Generator
Power World Machinery Equipment Co., Ltd. is a manufacturer in shenzhen, China. We are specialized in manufacturing diesel generator set of which power is from 8KW/10kVA to 2000KW/2500kVA, with the best staff and the frist-rate work environment, we can supply the high-quality and competetive price products to our customers home and abroad.

We have developed a good cooperation with some world famous engine and alternator manufacturers, such as the USA Cummins, Britain Perkins, DongFeng Cummins, ChongQing Cummins, Lovol-Perkins, Deutz, Daewoo, Huachai(China), Shangchai(China). In 2000, Power World has been approved as the authorized OEM partner of Britain Perkins in China.

In 2001, Power World passed the certificate of ISO9001: 2000 international quality system. "share in cooperation, deal in honesty" is our strong working principle, Power World is looking forward to establishing business relationship with you!
