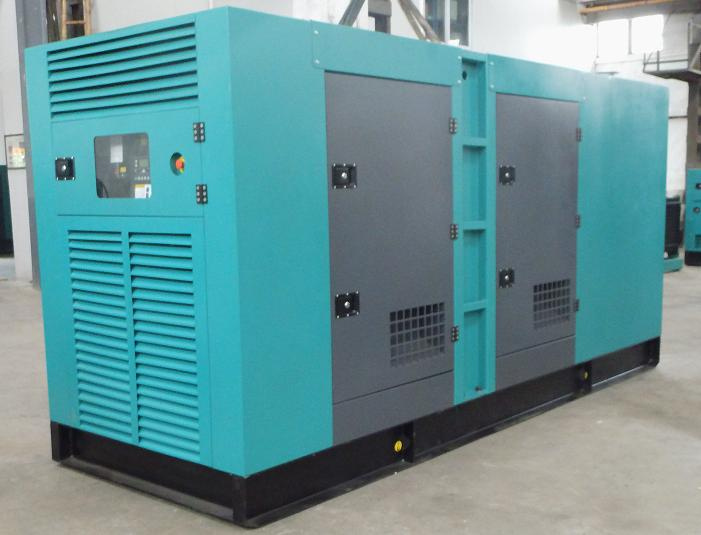

Cummins 500kVA Diesel Electric Generator with Good Price List for Sale
Price: |
US $ 1set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1set |
Pay Type: |
L/C,T/T |
Engine of generator power plants: diesel electric generator
Brand: Cummins
Model: KTAA19-G4
Origin: Manufactured by Chongqing Cummins Engine Co., Ltd
Start Model: DC24V electric start
Steady Speed Droop:≤1%
6 cylinders ,in-line,4 stroke
AC generator head:
Brand: Leadtech
model: LTG274J
Matertials:100%copper
Freqency&Speed:50HZ,1500RPM
Insulation&Protection:H, IP22
Rated Voltage: 230/400V
Frequency regulation: ≤±0.5 %(stable)
Voltage regulator: standard AVR
brushless,self-excited,AC synchronous, single bearing
Auto start control system:
Brand:Smartgen 6110 or Smartgen 6120(with ATS) optional. Customers can also select other brand such as HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 etc.
(1)Widely used in all types of generator automatic control system for compact structure,advanced circuits,simple connections and high reliability.
(2)LCD display,automatic control, Chinese and English display interface. Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.
(3) Function:high water temperature, low oil pressure, low speed and over load protection,etc.
ATS(Automatic Transfer switch)
It's widely used in hospital,airport,hotel,school and other emergency power supply equipments.
Once the main power failure, the control panel will received the signal to start the genset within 5 seconds, ATS will switch to the load wires to connect genset power supply,and the whole process takes less than 15 seconds. After the main power recovered 30 seconds, ATS automatically switch the load wires to connect main power supply,the genset will stop after running 180 seconds
Vibration Insulator:
Rubber paad mounting isolate base from engine/generator assembly Rubber pad mountings isolate base from engine/generator assembly make it stable:
Silencer
Intermal high-efficent prevent silencer. which can reduce the niise in outlet smoking vent

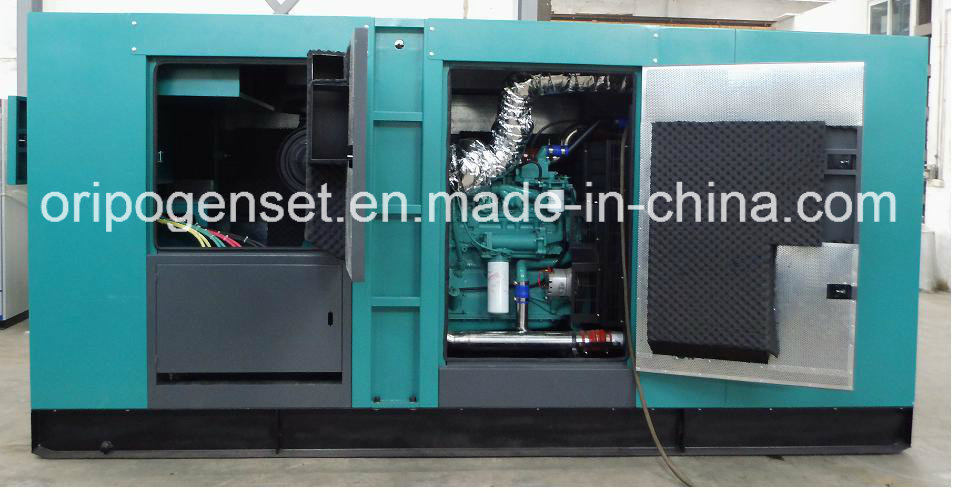

Super Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Our main products include various generator sets from 8KVA-1340KVA, such as style of open type, soundproofing, Rainproof,trailer, vehicle mounted, marine and other normal generator sets, auto transfer switch panels (ATS) and auto parallel connection switch panels. Our products are widely used in factories, buildings, marketplaces, hotels, railways, airports and ports
Our engines are from Cummins, , Shangchai-China and Weichai-China. Equipped alternators are from Stamford, Marathon, Leroysomer, Leadtech Etc.GENSET TYPE | open/sound proof/weather proof/trailer/container |
Genset output power range | 23kva-2000kva |
Rated voltage | 220/380V,230/400V,240/415V,120/240V 240/416V,254/440V,266/460V,277/480V |
Frequency | 50/60HZ |
Power factor | 0.8 |
Rated speed | 1500/1800rpm |
Aspiration | Natural/turbocharged |
Cooling system | Water cooled |
Governor type | Mechanical/electrical |
Starting system | 24V DC electric starting |
output type | AC three phase/single phase |
Motor | Brushless & self-excited |
R.R.I.Suppression | BS EN 61000-6-4/BS EN61000-6-2 |
What is prime power,and what is standby power?
Prime Power : Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqvISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power : The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload allowed, utility parallel or negotiated outage operation capability is available at this rating.
Prod Model: |
OCL500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Portable |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
