Nitrogen offers a wide range of applications such as purging, firefighter, creating inert atmosphere, carrier gas, blanketing, packing, filling, plastic molding, so on and so forth.On -site nitrogen generation is a favorable choice for many manufacturers as it is an easy and reliable way for them to save money and give free control over the nitrogen gas use.Our company offers on-site nitrogen generation based on the principle of Pressure Swing Adsorption.Actually, PSA nitrogen gas generators are usually used in applications where the purity of nitrogen is higher than 99.5% with oxygen content is lower than 0.5%.
Technological Process
Nitrogen Generators from our company are designed and manufactured based on the principle of Pressure Swing Adsorption(PSA).Ambient air, having being compressed and purified to remove oil, water and dust, enters the adsoption swing adsorping device with two adsorption towers filled with carcon molecular sieve(CMS).The compressed air flow to the adsorption tower from the bottom to up.In the process, oxygen molecular is adsorbed, while nitrogen flows out of the upper side of adsorption tower and then enters then buffer tank for impure nitrogen.After a period of time, the CMS in the adsorption tower is saturated by the oxygen adsorbed.At this time, regeneration is needed.It is realized by stopping adsorbing step and reduce pressure in the adsorption tower.Adsorption and regeneration are conducted alternatively in the two adsorption towers to ensure the consecutive output of nitrogen gas.

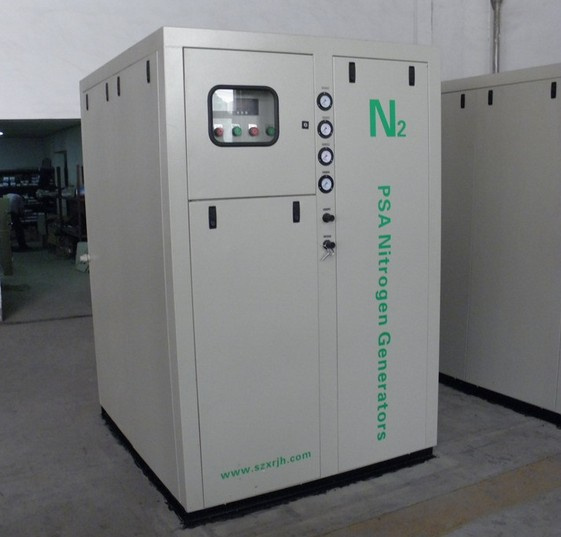

The advantages and characteristics of Containerized PSA nitrogen generator
1 Fast start up, qualified nitrogen can be produced within 15 to 30 minutes.
2 full automation, no personnel is needed to be on the spot in the whole process.
3 high-efficient CMS filling , more tighter,more solider, longer service life.
4 pressure, purity and flow rate can be regulated to satisfy customers' different needs.
Wide application scope:
Nitrogen produced by this PSA generator can be used as the protective gas in heat treating process;Chemical industry production, nitrogen filled for purification in all kinds of storage tank and pipeline;Gas for production of rubber and plastic products;Oxygen exclusion and keeping food fresh in food industry package;Purification and blanket gas in beverage industry;Nitrogen filled for package and exclusion of oxygen for container in pharmaceuticals industry;As protective gas in the process of producing electronic component and semiconductor in electronic industry.Purity, flow rate and pressure are stable and can be regulated to satisfy the different customers'needs.
Delivery Details:
Packaging details:Standard export packaging
Delivery details:within 60-90days after receipt of the deposit
Model |
Capacity
(Nm³/h) |
Feed Gas |
Product Gas:Nitrogen Gas |
Pressure
(Mpa) |
Dew point
(ºC) |
Residual oil
(ppm) |
Dew point
(ºC) |
Purity
(%) |
Pressure
(Mpa) |
Temperature |
|
XRFD98 |
5-2000 |
0.7-1.0 |
≤-17 |
≤0.003 |
≤-40 |
≥98 |
0.6-0.9 |
Ambient Temperature |
|
XRFD29 |
≥99 |
|
XRFD295 |
≥99.5 |
|
XRFD39 |
≥99.9 |
|
XRFD49 |
≥99.99 |
