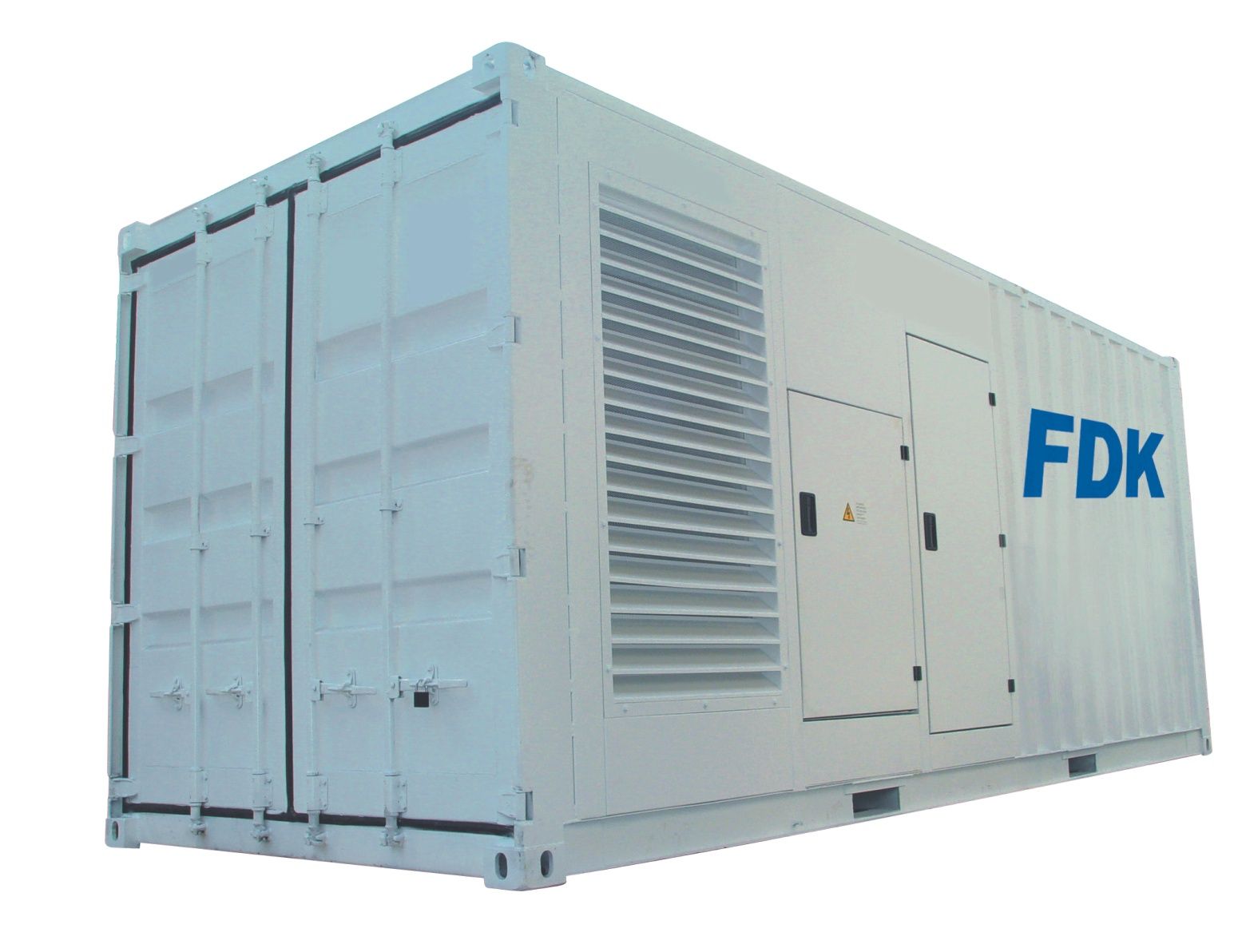

Container Generator (FCG800SP)

Container generator features:
High-prevent-corrosion materials;
Stainless steel lock and hinge;
Zinc-planting/stainless steel button;
Steel fabric, the surface was traded with phosphorus, and then sprayed with polyester powder;

Container generator easy to maintain;
The door was installed on both sides of the soundproof canopy; The door was supported by pneumatic spring-loaded doors; Outlet of lubrucants and cooling water drain-pipe was installed outside the box

Security protective measures;
The observation window of control screen can be installed on hte door of the switch
Movable nature, easily identifiable hoisting aperture;
Better protection devices for cooling fans and batteries;
First open the sidedoor then add fuel and replacement batteries; Silencer system is completely inside the soundproof;

Container generator engine and alternator parameters:
Cooling Mode: Water cooled with water tube and fan
Rotaiton: 1500rpm 50HZ Over-speed Capacity: 120%
Overload Capacity: 110%
Wave Distort: Less than 10%
Electric System: 24V
Volt Fluctuation: <0.5% Volt/Freq fluctating: ≤ %1/0.5
Type: H-class insulation, IP22 protection, direct coupled, brushless, synchronous.

Controller System: GCM338
1). Controller has automatic engine shut down protection capability with LED indicator for low oil, high engine temperature overspeed and failure to start
2) Control panel contain voltmeter, ampere meter, tachometer, hour meter, frequency meter, circuit breakers, fuel level indicator, engine temperature gauge, charging gauge and MCCB
