| Price: | US $ 15000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
Coal Gasifier Power Generator Mine coal Gas Generator
Coal / mine gas generator specification :
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: coal, lignite,mine gas, coal bed methane...
Coal / mine gas generator parameter :
Model Number | LHCG10-700 |
Brand Name | Lvhuan |
Rated Power | 10-700 kw |
Rated Speed | 1000/1500rpm |
Rated Frequency | 50/60 Hz |
Rated Voltage | 400/230V |
Phase | AC 3 phase 4 wire |
Starting system | 24V DC electric motor |
Cooling method | water cooler |
Lubricant method | passive and splash |
Isolation class | H |
Protection | IP23 |
Power Factor | 0.8 lagging |
Exciting method | Brush less |
Voltage Stability | ≤±2% |
Voltage Transient | ≤±10% |
Voltage Stable time | ≤1 s |
Engine Capacity | 1.81-71.45L |
Cylinder Number | 2-16 |
Cylinder Diameter | 100-190mm |
Range | 115-210mm |
Heat consumption | ≤9.8mj/kw.h |
Oil consumption | ≤1.63g/kw. |

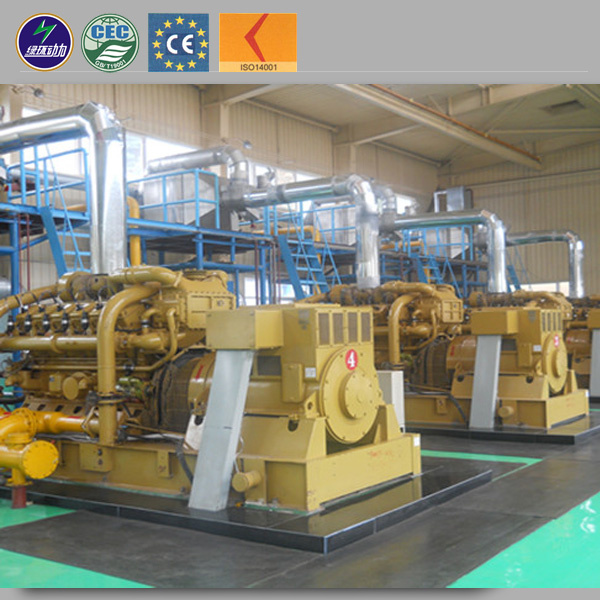

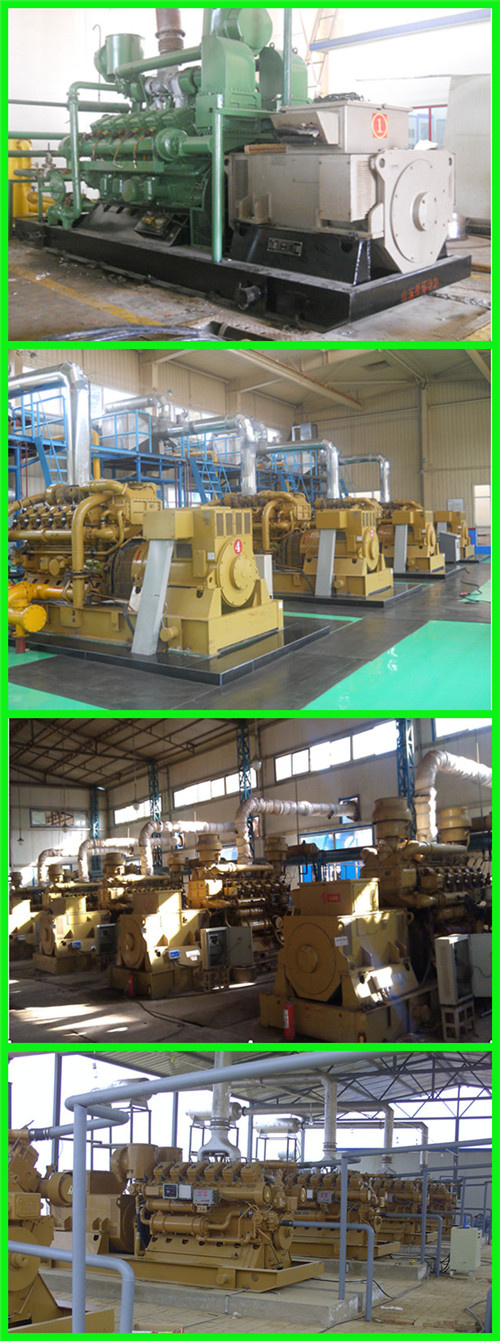

Coal / mine gas generator photos:
Coal / mine gas generator features:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Coal / mine gas generator Supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Our company overview:
Visitors form oversea:
RFQ:
1.How to choose the right model? A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power. The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
| Prod Model: | coal gas Generator |
|---|---|
| Markets: | North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Title: | Power Generator Mine Gas Generator |
| Coal Gas Generator Applied Voltage: | 110-480V,6.3kv,10kv |
| Coal Gas Generator Fuel: | Syngas |
| Coal Gas Generator Frequency: | 50/60Hz |
| Speed: | 1000rpm |
| Voltage Regulation Mode: | Automatic |
| Exciting Mode: | Brussless |
| Coal Gas Generator Warranty: | 12 Months |
| Installation Abroad: | Yes, Guide Installation |
| Generator Type: | CHP |
| Gas Source: | Coal Gas, Mine Gas |
