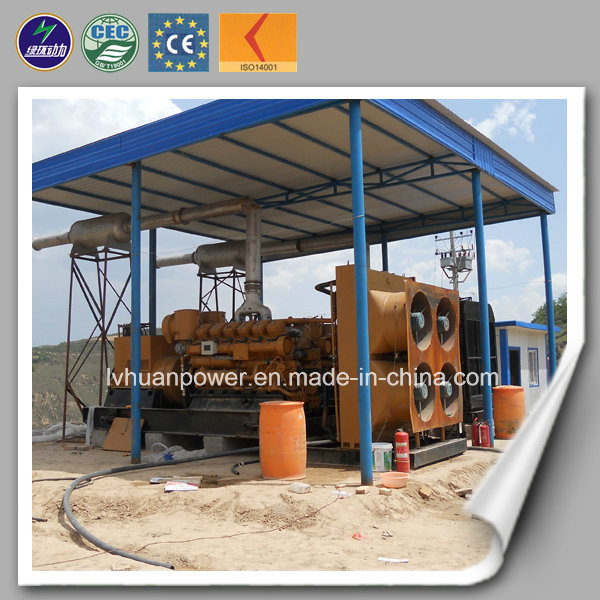

Coal Bed Gas Power Generator with CE & ISO

Coal bed gas generator

Worksite requirements for coal bed gas generator
The worksite needs to meet following basic requirements:
A) Ambient temperature between -40º C~45º C;
B) Relative humidity less than 90%(35º C);
C) Site elevation not higher than 2000m;
D) For outdoor installation, simple rain shelter is required.
The engine is high, /low temperature cycle requires the use of softened water. Cooling water should be used in slightly alkaline cleaning water, not compounds containing corrosive, such as chlorides, sulphates or acid etc...Its main index requirements are as follows:
Hardness: 0.7~5.3me/L; Chloride ion content: <150mg/L; PH≤ 7~8.5

Fuel gas requirement for coal bed gas generator
The genset will be able to output at its full power with fuel gas with the specification as below:
1m from genset's pressure regulating valve of inlet
1. Gas temperature≤ Local temperature + 15º C(≤ 40º C is better)
2. Gas Pressure can be adjusted from 3-20 kPa, the changing pressure rate ≤ 1kPa/min.
3. H2S≤ 200mg/Nm3
4. If the CH4 covers less than 30%, the total content of CH4 & O2 should not less 28%, the O2 content should not less than 16%
5. Diameter of Particulate matter≤ 5μ M, particulate content≤ 30mg/Nm3.
6. Moisture content≤ 40g/Nm3


Why you chioce Shandong Lvhuan Power equipment Co., Ltd. Coal bed gas generator?

1. Over 15 years produced gas/diesel generator experience;

2. Main products including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc. Products arrange
From 5kw-3000kw;

3. Our workshop covering more than 40000 square meters, techincal engineer and afterservice more than 100 persons.

4. CE, ISO9001: 2008, ISO2001: 1400 etc. Certificats approve and passed many patents.

5. Export many countries in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia, Philippine, Indonesia, and with some Africa countries etc.

6. We have some cooperative partners: Like water removal system, H2S removal system, gasified equipment, recovery system exhaust heat, CCHP system etc. So can offer
You complete project proposal if you like.

Coal bed gas generator Service:
1. Pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.

(2)According to the situation of site we can supply you many drawings like power station floor plan,
Engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.

2. Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.

(2)We will debug the generator set till it can generate power successfully.

(3)We will also supply a technical training to the operators. Or you can send your staff to
Our company. We can train them till they can operate.

3. After-sale service:
(1)in our company, different people is in charge of different area, we will response periodically and support you technical service free of charge,

(2)For the quality problem, we will service for you free of charge during the guarantee period.

(3)One year guarantee period and lifetime service.

(4)we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.
