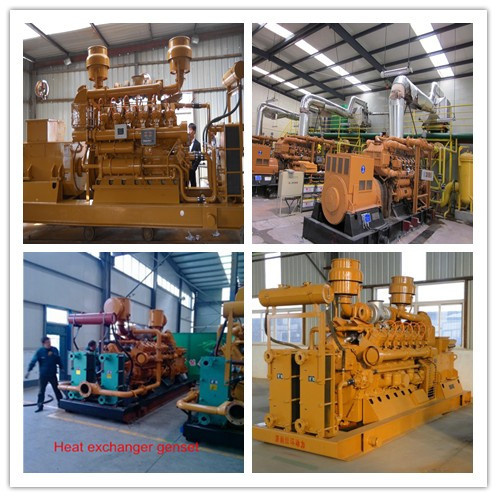

CHP Biomass Generator Set with CE and ISO (750kVA)
Worksite requirements:
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required. Fuel gas requirement: The genset will be able to output at its full power with fuel gas with the specification as below:
1m distance away from genset's pressure regulating valve of inlet
Temperature of biomass≤40ºC;
Pressure of biomass 5~20kPa, velocity of pressure≤ 1kPa/min;
H2S≤200mg/Nm3;
NH3≤20mg/Nm3;
Coke tar content≤20mg/Nm3;
Impurities particle size≤5μm; impurity content≤30mg/Nm3;
Moisture Content of biomass ≤40g/Nm3;
biomass calorific value≥4.2MJ/Nm3. Purification of biomass gas have a significant impact on machine life and continuous running time!Warrantees:One year or 1000 running hours which comes first from genset delivery date.Operator training:Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China, customer needs to cover round flying ticket, hotel cost, food, transportation in China. Manufacturing lead time:The delivery period is within 30 days after order releasing; Packing & shipping:1) Genset would be covered with plastic film cover (dust-proof purpose only);
2) Control panel, batteries, electric cables are packed with plywood boxes;

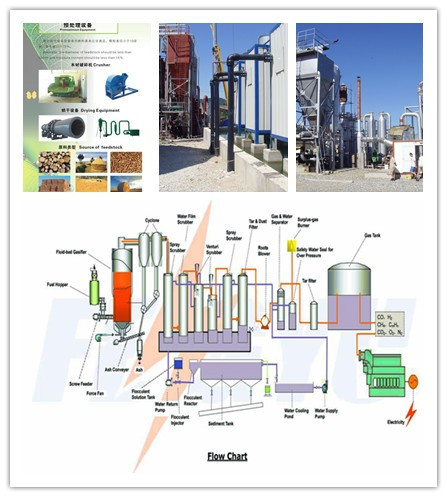

3) Exhaust pipes, engine mufflers are put in the container without packing.Feedstock unit consumption of biomass gasification power generation
1.Rice husk:1.6-1.8kg/kwh
2.Crop stalk:1.5-1.8 kg/kwh
3.straw :1.6-1.7 kg/kwh
4.aw dust:1.3-1.4 kg/kwh
5.Wood chip:1.3-1.5 kg/kwh
6.Coconut fiber dust:1.6-2.0 kg/kwh
7.Palm bunch:1.7-1.9 kg/kwh
| Manufacturer |
| Shandong Lvhuan Power Equipment Co., Ltd |
| Engine type |
| G12V190ZLT |
| Working principle |
| 4-stroke, with turbocharger, intercooler and electronic air/fuel mixer, spare plug ignition, forced water cooling |
| Configuration |
| Vee 60 |
| No. of cylinders |
| 12 |
| Bore | mm | 190 |
| Stroke | mm | 210 |
| Total displacement | L | 71.45 |
| Rated speed | rpm | 1000 |
| Mean piston speed | m/s | 8.4 |
| Stable speed with no load , r/min | rpm | 600 |
| Rated power | kW | 500 |
| Fuel gas consumption | MJ/(kW@h) | 11 |
| Lubricant consumption | g/(kW@h) | ≤1.0 |
| Exhaust temperature |
| ≤550 |
| Maximum jacket water temp. |
| ≤85 |
| Lubricant temperature |
| ≤90 |
| Pressure at main oil gallery | kPa | 400-800 |
| Oil pressure at turbocharger | kPa | 200-400 |
| Stable speed drop | % | 0-5 (adjustable) |
| Cooling method |
| Forced water cooling |
| Lubricating method |
| Pressure and splashing |
| Filling capacity of cooling water | L | High temp. circulation: 220
Low temp. circulation: 110 |
| Filling capacity of lube oil | L | 180 |
| Cylinder serials number | Flywheel on left (bird view) | 1 – 2 – 3 – 4 – 5 - 6
7 – 8 – 9 –10 –11 -12 |
| Ignition method |
| Spark Plug Ignition (digital) |
| Ignition order |
| 1-8-5-10-3-7-6-11-2-9-4-12 |
| Starting method |
| 24VDC electric motor |
| Direction of Rotation | Facing flywheel | Counterclockwise |
| Power output end |
| Flywheel output |
| Length | mm | 2692 |
| Width | mm | 1560 |
| Height | mm | 2170 |
| Weight empty | kg | 5900 |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
