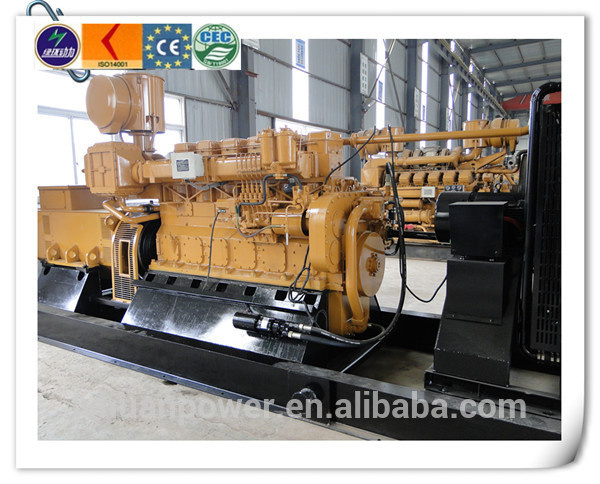

China High Efficiency Natural Gas Generator Set 300kw with 6190 Engine Lvhuan
1.Lvhuan gas genset is a new green environmental product which meets demands of world environment protection and market.
With domestic advanced technology, our genset possesses features of speedy start, easy to operate, complete models, etc.
2.We have a sales staff can speak in Russian, If you from Russia, Kazakhstan , Ukraine, Belarus, Uzbekistan, and other countries,you can visit our Russian website: www.lvhuanpower.ru. Contacts:
3. Parameters:
Model Number (Engine Type) | LHNG300 |
Brand Name | LVHUAN |
Prime Power/Standby Power | 240KW/300KW |
Rated Speed | 1000/1200RPM |
Rated Frequency | 50/60Hz |
Rated Voltage | 400V/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1s |
Heat consumption | ≤11mj/kw.h |
Lubricant consumption | ≤1.0g/kw.h |
Engine Capacity | 32 L |
Cylinder Number | 6 |
Cylinder Bore | 190mm |
Stroke | 210mm |
Starting System | DC 24V electric motor |
Cooling method | water cooler |
Lubricant method | Passive and flying lubricant |
Isolation class | H |
Protection | IP23 |
Alternator | Siemens |
Power Factor | 0.8 lagging |
Exciting method | brushless |
Colour | your choice |
Certificates | ISO 9001:2008, CE |
Warranty | 1 year or 1000 running hours arrives first |
Type | Open |
Control system | Automatic alarm system |
Size | 5300x1970x2170mm |
Weight | 8200kg |
4. Worksite requirements:
The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required.
5. Gas requirements:
1m from genset's pressure regulating valve of inlet
1)Temperature of natural gas ≤40ºC;
2)Pressure of natural gas 80~200kPa, velocity of pressure≤ 1kPa/min;
3)H2S≤20mg/Nm3;
4)the ratio of CH4 in natural gas not less than 70%
5)Impurities particle size≤5μm; impurity content≤30mg/Nm3;
6)Moisture Content of natural gas ≤40g/Nm3;
6. About us:
Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.
We are located in the new and high-tech development zone of Zhangqiu, Shandong Province covering an area of over 40,000 square meters with more than 260 well educated and experienced employees who are the propulsion of our business. The strong capacity of our technical stuff, advanced craft, complete plants and equipments, the strictly quality control, most importantly, the cooperation with the relative university and research institution; all these make us always aheaded among generator manufacturing enterprises all over the country.
Purification of biomass has a significant impact on machine life and continuous running time!
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
