Production Description
Reverse osmosis is a kind of membrane separation technology developed since the 1980s. It mainly uses the osmosis principle of semi-transparent membrane. A pressure that is called reverse osmosis. The device that is composed of reverse osmosis components is called reverse osmosis device.
Working Principle
1.A semi permeable membrane in a reverse osmosis system only allows certain things to pass through.
2.This membrane passes water easily but also prevents many other contaminants from passing by trapping them.
3.Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals.
4.The water in the less concentrated solution tries to dilute the more concentrated solution.
5.Water will pass through the membrane from the lower concentration side to the greater concentration side.
6.The osmotic pressure (see diagram) created by the difference in water levels, will counter the diffusion process forming an equilibrium between the two sides.
Features
1.Raw water TDS≤500(design as per your raw water condition)
2.Produced water TDS≤5-10 (design as per your raw water condition)
3.water temperature 5°C~45°C
4.Rate of desalination≥98%-99%
5.Recovery rate: 50-60<%
6.Output Capacity(M³/H):1-10
NO. |
Product Name |
Functions |
| 1 | Multi-media Filter | remove the suspended solids; gluten particles in the water; reduce the turbidity of water
|
| 2 | Activated-carbon Filter | remove the pigment,smell; reduce biological organisms in the water;ideal equipment for drinking water |
| 3 | PP Filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um |

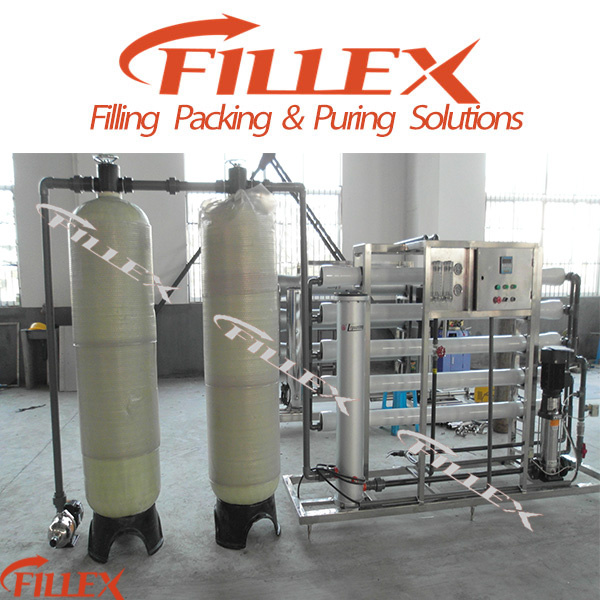

| 4 | RO(reverse osmosis) System | remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts |
After Sales Service
? One year warranty for the whole system
? Free equipment installation and debugging
? Free production technology and process configuration
? All-day technical support by e-mail or by video tools
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex has 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
--PET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
--1-2 & 3-5 Gallon Jar Bottle Water Plant
--Beverage Filling Line Auxiliary Equipment(Carbonator, UHT Sterilizer, Turned-up Bottle Sterilizer, Spray Cooler&Bottle Warmer, Homogenizer, CIP System etc)
--Bottle, Kind of Container Labeling & Post Packing Solutions
--Water Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
