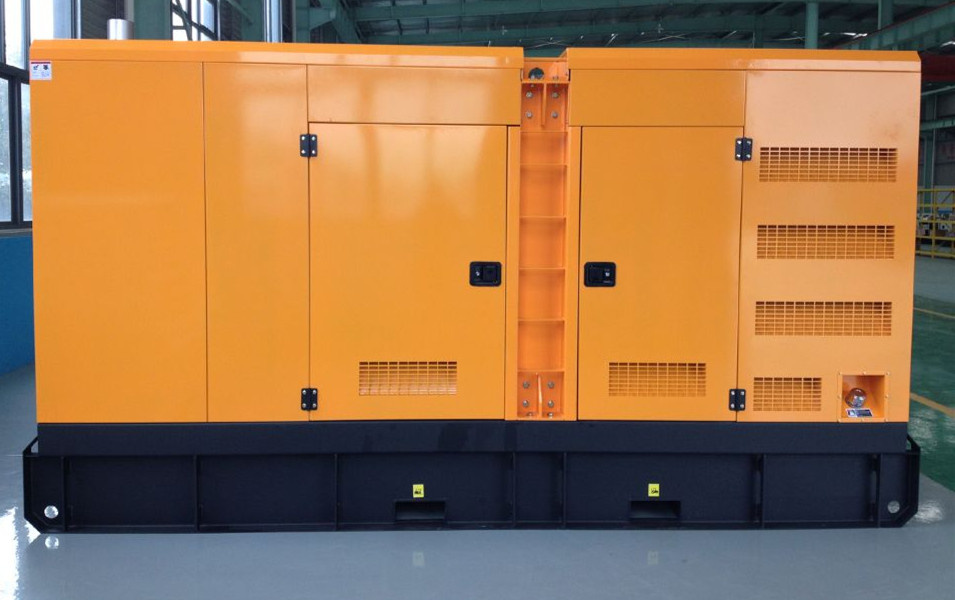

Top supplier 50Hz 240kw/300kVA Cummins Silent Generators Price (GDC300*S)
Performance Feature
Engine and alternator shall be mounted on a same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy for operation, installation and maintenance.
World most famous brand diesel engine.
CUMMINS, PERKINS, Volvo PENTA, DOOSAN, DEUTZ, LOVOL, WUXI POWER, GOOGOL, CSR.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
Advanced and reliable controller: Key start, Auto start, AMF & Remote control by PC with RS232 / 485.
Full range protect function and alarm shutdown feature.
Comply with GB/T2820-97, ISO8528 national standard and ISO9001 quality standard.
Alternator Feature
Brushless, 4 poles, rotation magnet.
IP21-23 enclosure is standard for all industrial alternators.
The insulation system is Class H.
Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
Wide range of flange adaptors and single bearing disc coupling.
Standard 2/3 pitch windings avoid excessive neutral currents.
Optional accessories available for easy paralleling with mains or other generators.
Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.
AVR auto voltage regulator, auto exciter, auto adjustment.
Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.
Control System
GCS6410 is an Automatic Mains Failure module which is designed to monitor the mains utility and on failure automatically starts the generator and transfers the load. On return of the mains utility the controller automatically returns the load to the mains and stops the generator after a cool down period.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD or LED's.
Ture RMS measuring
Configuration of parameters by front panel push buttons or communication software
RS485, RS232, or USB port for remote communication.
Configurable fuel output energise to stop or energise to run.
6 configurable inputs.
3 configurable outputs.
2 analogue inputs configurable for different senders for oil pressure and engine temperature.
With ATS control.
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Optional Accessory
Circuit breaker, Starting battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply. Fuel-water separator, Daily fuel tank, ATS & parallelin system, Soundproof canopy and Moving trailer.
Quality Warranty Period
All equipment is guaranteed for a period of 1000 hours running or 12 months from the date when the generator set has been delivered from the factory.
Integrated Power Solutions
Emergency rescue system solutions for mobile power.
Uninterrupted backup power system solutions for villa.
Complex commercial real estate solutions for backup power systems.
Power and pneumatic Integration solutions for mining.
Precision manufacturing and industrial enterprise backup power systems solutions.
Pulp and paper plant backup power systems solutions.
Star hotel and high-level office backup power solutions.
Large data memory center and high-speed generator sets power systems solutions.
Automatic high-speed Integration parallel and the power grid system solutions.
| Gensets model | GD300*S |
| Prime power | 240KW/300KVA |
| Standby power | 264KW/330KVA |
| Rated Voltage | 230/400V |
| Rated frequency(HZ) | 50HZ |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 2420x900x1250 |
| Genset Weight(kg) | 1150 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | NTA855-G1A |
| Number of Cylinders, Cylinder arrangement | 6 ,Vertical in-line |
| Cycle | Six stroke |
| Standby Rated Output kW | 30 |
| Aspiration | Turbocharged, Air / Air Cooling |
| Fuel System | Direct injection |
| Bore×Stroke (mm×mm) | 100x 105 |
| Displacement (Liter) | 3.707 |
| Speed Governor | M |
| Cooling System | Forced Water Cooling Cycle |
| Fuel Consumption at 100%/75%/50% Load (L/h) | 8.1/6.3/4.7 |
| Starting Method | DC12V electrical starting |
| 3. Specification of alternator |
| Alternator brand | GODLIKE |
| Alternator model | JDG314D |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | <50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±0.5% |
| Transient State Voltage | ≤-15%~+20% |
