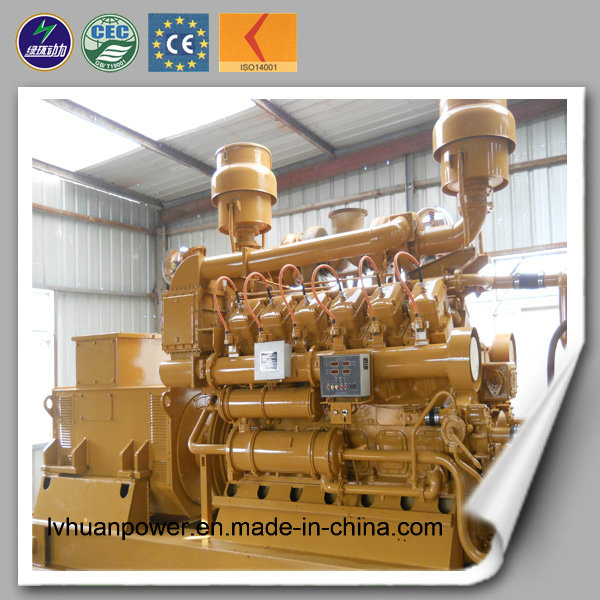

CE approved 500kw biomass generator
Biomass Generator Core Features:
Manufacturer supply
Power sypply range: 500kw
Continious supply range: 400kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
Biomass Generator specification:
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Biomass-- made of ( Crops: Straws of rice, wheat, bean, cotton, husk etc. Weeds, algae etc. Animal wastes and spoils. Organic exist in waste water and rubbish etc. )
Biomass Generator Required gas condition:
Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40º C
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
8. Moisture content ≤ 40g/Nm3
9. Heat value ≥ 4.2MJ/Nm3
Biomass Generator features:
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.
Biomass Generator supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Automatic control system for Biomass Generator
1. Manual control panel: This mode can not only provide start/stop fundamental function, but also can supervise the sunning situation if the generator set bu showing ass the technical data. Based on the alarm system and protection function, the generator can run more steady and reliably.
2. Long distance control system: The generator can be controlled in a long distance. We fix start time-lapse relay and stop time-lapse relay on the panel, so the system is easier to operate and it can run more reliable.
3. Automatic control panel and automatic loading switch: Freestanding control cabinet with ATS and automatic start control function available form us. It's easy to operate and suitable for the central control of electric equipment.
A. National grid power and self-generated power can be switched freely by ATS with protection.
FAQ:
1. How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2. What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power.
The capacity depends on gas energy.
E. G 1.0 Cubic meter natural gas produce about 3.0kw/h
3. What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation, repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
Biomass Generator parameter
| Model Number | LHBMG500 |
| Brand Name | Lvhuan |
| Rated Power | 500 KW |
| Rated Speed | 1000 rpm |
| Rated Frequency | 50/60 Hz |
| Rated Voltage | 400/230V |
| Applied voltage | 380V/220V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | H |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brush less |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Generator engine specification: |
| Engine capacity | 71.45L |
| Cylinder Diameter | 190mm |
| Range | 210mm |
| Heat consumption | ≤9.8mj/kw.h |
| Oil consumption | ≤1.63g/kw.h |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
