CE approved 300KW natural gas CNG LNG Biogas Generator
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3. CE, ISO14001: 2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat.
5. Turnkey project as your need.
Container type biogas power plant specification:
Rated Power: 10-600 KW
Continuous power:8-480kw
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Required gas condition:
Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40º C
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Impurity particle size ≤ 5μ M, impurity content ≤ 30mg/Nm3
8. Moisture content ≤ 40g/Nm3
9. Heat value ≥ 4.2MJ/Nm3
Container type biogas power plant Work site requirements:
The work site needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required.
Machine supply details:
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Cutting - edge of our generator
1. Pure copper water tank for best cooling effect
2. Famous component brand to ensure overall quality
3. Expansion fitting combined with shrinking fitting give high tightness to the system4. Safety guarantee form electromagnetic valve as well as back-fire relief valve
5. Residual heat CHP recycle system available for choice.

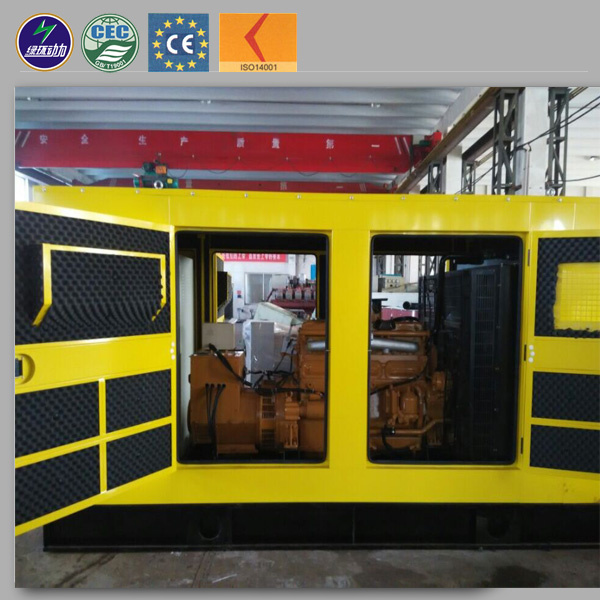

Optional part---Silent canopy for generator:
Features of generator silent canopy:
1. Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device. The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3. Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Automatic control system for generator
1. Manual control panel
2. Long distance control system
3. Automatic control panel and automatic loading switch
4. Control Panel of parallel operation
FAQ:
1. How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2. What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5- 3.0kw/h power. The capacity depends on gas energy.
E. G 1.0 Cubic meter natural gas produce about 3.0kw/h
3. What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts with charge. We offer one set of consumption spare parts with machines.
5. How is the service?
A: We offer installation, repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after sale service are all trustable, you can name it.
Any questions, please contact me freely.
| Model Number | LHBG10-50 |
| Brand Name | Lvhuan |
| Rated Power | 10-50 KW |
| Rated Speed | 1000 / 1500 rpm |
| Rated Frequency | 50/60 Hz |
| Rated Voltage | 400/230V |
| Applied voltage | 380V/220V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | H |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brush less |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Generator engine specification: |
| Engine capacity | 1.81-6.45L |
| Cylinder Diameter | 135mm |
| Range | 150mm |
| Heat consumption | ≤9.8mj/kw.h |
| Oil consumption | ≤1.63g/kw.h |
| Range | 150mm |
| Heat consumption | ≤9.8mj/kw.h |
| Oil consumption | ≤1.63g/kw.h |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
