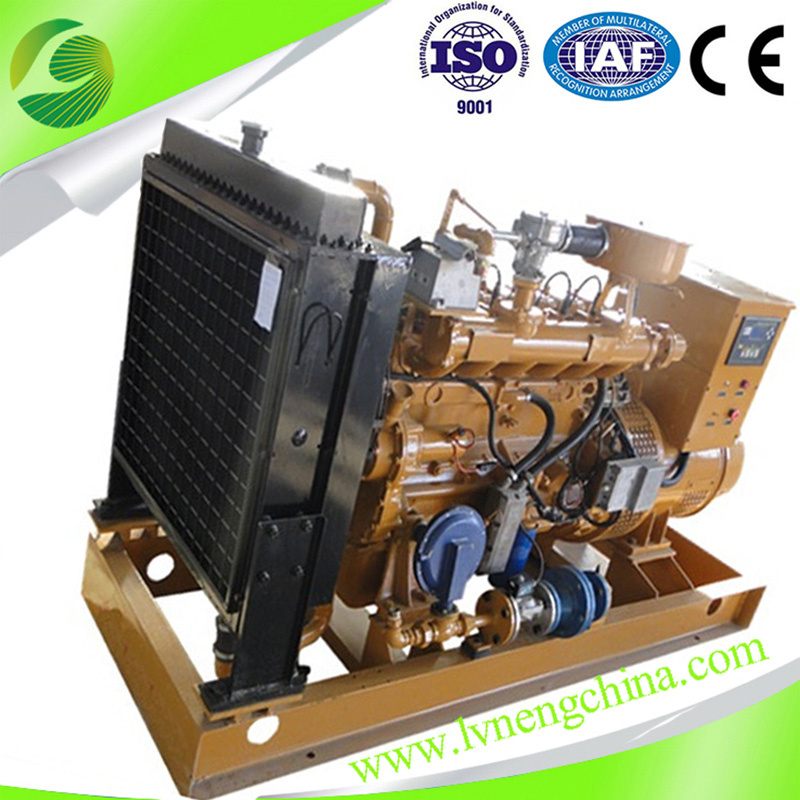

CE and ISO approved natural gas generator 500 kw
We produce natural gas generator, biogas generator,biomass generator, syngas generator and diesel generator for more than 10 years and our generators are running allover the world.
Please see below info of natural gas generator, if you have any questions,please contact me freely.
Natural gas generator applied field:
1. Oil field
2. Industrial Zone
3. Petroleum chemical plant
4. Used as standby power in case of emergency
5. Supply power to oil well
Natural gas generator specification and parameters:
Rated Power: 500 KW ( 625KVA)
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: Natural Gas (CNG,LPG), oilfield associated gas
Natural gas generator required gas condition:
Within 1meter from gas intake valve of generator
1. The ratio of methane(CH4) in natural gas ≥ 70%
2. Pressure of natural gas 80 ~ 200kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 20mg/Nm3
4. Moisture content ≤ 40g/Nm3
5. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Cutting - edge of our natural gas generator
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Service form us:
1. Installation and maintaining service abroad
2. Best sale service for machine using time
3.CE, ISO14001:2004 certificate
4. Turnkey project with CHP/CCHP system and recovery system of exhaust heat
5. Other service needed form your side.
Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD
Company.
Optional part---Silent canopy for natural gas generator :
1.Regular low noise control within 75dB(A) ( at 7 meters), super low noise with in 70 dB(A)(at 7 meters)
2. Double layers bottom frame with shock absorbing device.The oil tank, battery and muffler are assembled together. Easy to deliver and install.
3.Glass window and emergency button to make it easier to operate and inspect the working situation of generator.
Automatic control system for natural gas generator
1.Manual control panel: This mode can not only provide start/stop fundamental function, but also can supervise the sunning situation if the generator set bu showing ass the technical data. Based on the alarm system and protection function, the generator can run more steady and reliably.
2.Long distance control system: The generator can be controlled in a long distance. We fix start time-lapse relay and stop time-lapse relay on the panel, so the system is easier to operate and it can run more reliable.
3.Automatic control panel and automatic loading switch: Freestanding control cabinet with ATS and automatic start control function available form us. It's easy to operate and suitable for the central control of electric equipment.
A. National grid power and self-generated power can be switched freely by ATS with protection.
Other Specification
Payment: TT(30%+70%), TT30%+LC 70%, LC%
Installation service provided if you need
Inspection:100% inspection before shipment in person or third party
Model Number | LNNG 8-500 |
| Brand Name | Lvneng |
| Rated Power | 8kw - 500KW |
| Rated Speed | 1000 / 1500 rpm |
| Rated Frequency | 50 /60 Hz |
| Applied Voltage/ rated voltage | 220v / 380V - 230V / 400V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V electric motor |
| Cooling method | Circulating water cooling |
| Lubricant method | pressure and splash |
| Power Factor | 0.8 lagging |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Cylinder No., diameters and stroke | 2-12 pcs 100-190mm, 115-210mm |
| Voltage regulation mode | automatic |
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
