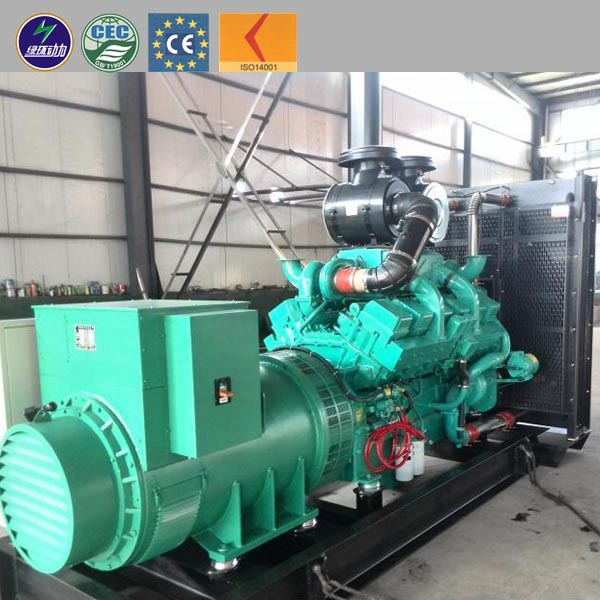

High Efficient CE ISO 500kw Cummins Natural Gas Generator
Core Features:
Manufacturer supply
Engine brand:Cummins
Guarantee: engine global warranty
Power supply range:30kw - 625kw
Continuous supply range: 24kw -500kw
Standard component and assembly
Multi-option of control panel
With CE and ISO certificate
Natural gas generator specification:
Power factor: 0.8
Rated Voltage and Rated Frequency: 400V/230V, 50/60HZ
Voltage Stabilized Regulation: ≤ ± 1.5%
Frequency Fluctuation Ratio: ≤ ± 1%
Insulation Class: H
Fuel: natural gas, CNG,LNG,methane.
500KW Cummins genset description:
| Model Item | LHCummins 500 |
|
| Rated power (KW/KVA) | 500/626 |
| Rated Voltage (V) | 380/220 |
| Frequency (Hz) | 50 |
| Rated speed (Rpm) | 1500 |
| Power factor | 0.8(lagging) |
| Engine model | GKT38 |
| Alternator model | LSA49.1S4A |
| Control Canopy | ComAp |
| Controlling way | Automatically |
| Inspiration | Natural |
| Cooling system | CHP system |
| Starting system | 24VDC Electric motor |
| Governoring | Electronic |
| Insulation Class | H |
| Voltage Stabilized regulation | ≤±1.5% |
| Voltage Instantaneous regulation | ≤±20% |
| Voltage Recovery time(S) | ≤1 |
| Voltage Fluctuation ratio | ≤1% |
| Voltage Wave aberration ratio | ≤5% |
| Frequency Stabilized regulation | ≤1%(adjustable) |
| Frequency Instantaneous regulation | -10%~12% |
| Frequency Recovery time(S) | ≤7 |
| Frequency Fluctuation ratio | ≤1% |
| Generator Insulation class | H |
| Noise level(dB) | ≤95 |
500kw Cummins engine description:
| Brand | Cummins |
| Engine model | GKT38 |
| Type | Inline, four stroke, electronic-control spark plug ignition, water-cooling, wet cylinder jacket, premix proper ratio of air and gas before combustion |
|
|
| Rated Speed | 1500RPM |
| Rated Power (KW/KVA) | 530 / 660 |
| Type | Inline, 6 cylinder, water cooling, natural inspiration |
| Cylinder Type | Wet Type |
| Number of cylinders | 12 |
| Bore (mm) | 159 |
| stroke (mm) | 159 |
| Displacement | 37.8 |
| Compression ratio | 9:1 |
| Dry weight(kg) | 2000 |
| Dimension (mm)(LXWXH) | 4300X1700X2360 |
Natural gas generator features:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Natural gas generator Supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Visitors form oversea:
Our certificate:
RFQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce1.5-3.0kw/h power.
The capacity depends on gas energy.
E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
