Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available
Basic Info.
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Micro-Computer Control Automatic Diesel Generator
Output Type: AC Single Phase
Export Markets: Global
Additional Info.
Trademark: HAIFU POWER
Packing: Iron Bracket or Veneer Case
Standard: GB/T2820-97
Origin: China
HS Code: 8502110000
Production Capacity: 500sets/Month
Product Description

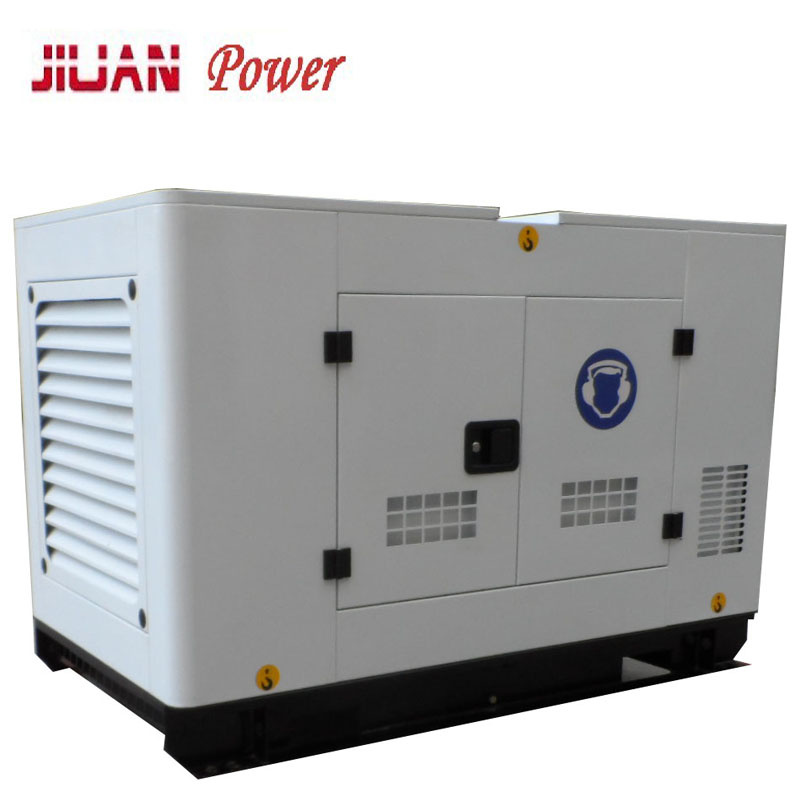

24KW/30kVA Yangdong Silent Generator(US EPA Tier 4)
Generator/Diesel Generator/Diesel Generator Set/Generating Set/Diesel Generating Set/Power Generator/Silent Generator/Soundproof Generator/Diesel Genset/Genset
1, Yangdong EPA Approved Diesel Engine(Tier 4)
2, Stamford/Leroy-somer/Marthon Alternators
3, EPA Approved
4, 1-Year Warranty
General Data Sheet
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World most famous brand diesel engine. UK origin Perkins series engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options.
|
Generator Set Model |
CDY-30kva |
|
Generator Set Power |
24kw/30kva |
|
Generator Powered by YANGDONG Engine |
|
Diesel Engine Model |
Y4100G |
|
Engine Characters |
Water-cooled, in line, 4-cycle, direct injection, 1500rpm |
|
Bore x Stroke (mm) |
90x100 |
|
Rated Output |
30kw/38kva |
|
Fuel Consumption (g/kw.hr) |
262 |
|
Lube Consumption (g/kw.hr) |
2.72 |
|
Compression Ratio |
18 |
|
Starting |
Electric (12V) |
|
ALTERNATOR MODEL |
LEADTECH 184G |
|
Rated Power |
25kw/31kva brushless with AVR |
|
Voltage (V) |
220/380V 230/400V 240/415V 127/220V |
|
Current (A) |
28 |
|
Frequency (Hz) |
50 |
|
Power Factor |
0.8 |
|
Brush/Brushless |
Brushless |
|
Dimensions (LxWxH) mm |
S: 1800x960x1100 |
|
Gross Weight (KGS) |
600 |
|
20FT |
12 PCS |
|
Controller |
Smartgen 6110 or Deepsea 7320 |
|
Standard |
Muffler |
|
|
Battery 80A*1 |
|
Model |
Engine Model |
Power |
Cylinder No. |
BorexStroke (mm) |
Displacement (L) |
Fuel Consumption (g. kw/h) |
Dimension (mm) |
Weight (kg) |
|
KW |
KVA |
|
HF08YD |
YD385ZLD |
8 |
10 |
3 |
85*90 |
1.532 |
210 |
1600x730x1180 |
530 |
|
HF10YD |
YD385ZLD |
10 |
12.5 |
3 |
85*90 |
1.532 |
210 |
1600x730x1180 |
560 |
|
HF12YD |
YD385ZLD |
12 |
15 |
3 |
85*90 |
1.532 |
210 |
1600x730x1180 |
650 |
|
HF16YD |
YD480ZLD |
16 |
20 |
4 |
80*90 |
1.809 |
215 |
1650x800x1200 |
680 |
|
HF20YD |
YND485ZLD |
20 |
25 |
4 |
85*95 |
2.156 |
215 |
1850x800x1200 |
800 |
|
HF24YD |
YND485ZLD |
24 |
30 |
4 |
85*95 |
2.156 |
215 |
1850x800x1200 |
850 |
|
HF30YD |
YSD490ZLD |
30 |
37.5 |
4 |
90*100 |
2.54 |
215 |
1850x800x1200 |
880 |
|
HF36YD |
YSD490ZLD |
36 |
40 |
4 |
90*100 |
2.54 |
215 |
1850x800x1200 |
910 |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
