Professional generator/OEM factory in Guangzhou
Stock available
SGS SONCAP
10kVA, 60kVA, 100kVA. 150kVA, 200kVA, 250kVA, 300kVA. 600kVA are available
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: JIUAN
Model Number: CDC150kVA
Output Type: AC Three Phase
Speed: 1500/1800rpm
Frequency: 50/60Hz
Rated Power: 150kVA
Rated Voltage: 110V
Rated Current: 91A @ 380V

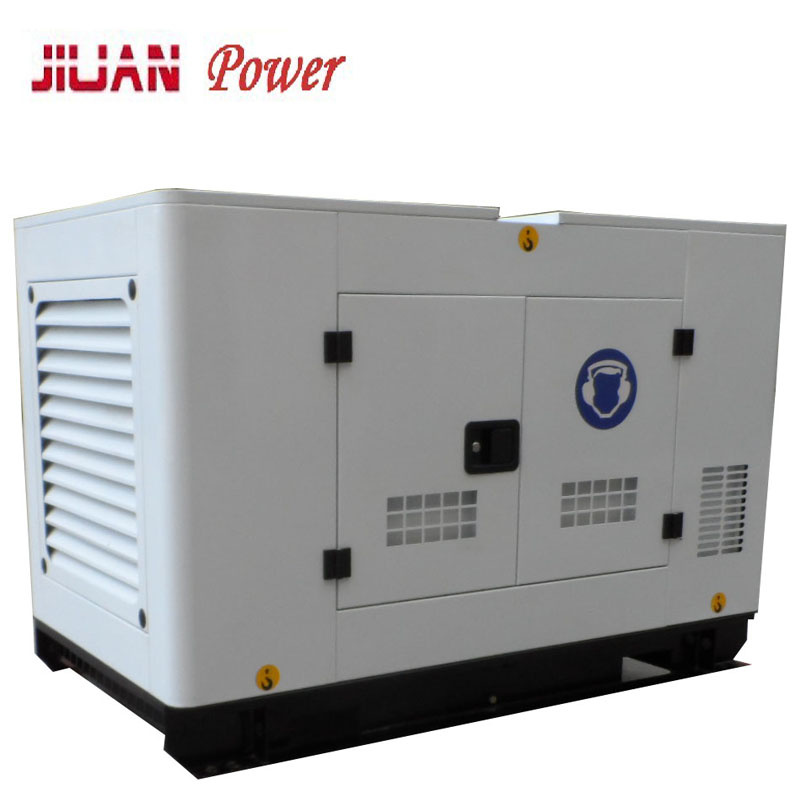

Diesel Generator: Cummins Generator 150kVA
Cummins Generator 150kVA
Diesel Generator factory in Guangzhou
Generator Noise: SUPER SILENT 65 dB(A) at 7 meters
Generator Engine: 6CTA8.3-G2
Generator Engine Displacement: 3.9 LG
Generator Alternator: Brushless with AVR
Generator fuel tank: 50 L
Generator fuel consumption: 13 L/H at full loading
60kVA Generator controller: Smartgen 6110/6120
Packaging & Delivery
Packaging Details: Standard Export Packing (Ironframe or pollywood)
Delivery Detail: 10days
Specifications
Cummins Generator Diesel
1. Power 20-1200kVA
2. Auto or manual start
3. Silent, super silent or open frame type
4. OEM factory
Cummins Generator 150kVA
CUMMINS OEM Factory in City GUANGZHOU
CUMMINS Generator (Cummins diesel generator) power range 20-1200kVA
JIUAN Generator production range as follows:
Diesel Generator Set open type or silent type (soundproof type)
Generator Diesel Engine: Cummins, Perkins, Perkins Lovol, Deutz, WeiChai, Yangdong, Quanchai, ISUZU etc.
Generator with alternator: Stamford, Marathon, Leroy Somer etc.
Rated output: 5kVA - 2000kVA
Rated frequency 50/60 Hz
Rated voltage 230/400, 220/380, 110V, according to customers
Power factor: 0.8(lag)
Super Silent type Noise level at 7m ≤ 65DB
Excitation Mode: (Brushless) Self-excitation and constant voltage (AVR)
Starting system: Electric start 12V/24V
Protection System: High water temperature protection, Engine oil alarm, Over load Protection
Overfrequency protection, Emergency stop
Control System: Digital Control Panel; Meter Panel
|
MODEL |
CD-C134kw/168kva |
|
Powered by Cummins Engine |
|
Prime Power (60HZ) |
134kw/168kva |
|
Standby Power (60HZ) |
145kw/180kva |
|
Power Factor |
0.8 (Lagging) |
|
Phase Wires |
3-phases 4-Wires |
|
Start Model |
Electric |
|
Protection |
Low oil-pressure, High water temperature,
Over-speed, Over-current |
|
Engine Model |
Cummins 6CTA8.3-G2 |
|
Cylinders |
6 |
|
Cylinder Arrangement |
L |
|
Bore x Stroke(mm) |
114X 135 |
|
Compression Ratio |
16.5:1 |
|
Speed |
1800rpm |
|
Cooling Method |
Water – cooled |
|
Starting Method |
24V DC electrical start |
|
25% Full Load Diesel Consumption (L/H) |
13 |
|
50% Full Load Diesel Consumption (L/H) |
21 |
|
75% Full Load Diesel Consumption (L/H) |
31 |
|
100% Full Load Diesel Consumption (L/H) |
42 |
|
Engine Displacement (L) |
8.3 |
|
Inspiration (L) |
Turbocharged Intercooler |
|
Lube Volume (L) |
24.3 |
|
Coolant Volume (L) |
28 |
|
Noise (Db) |
≤ 95 |
|
Alternator Model |
Stamford copy 274E |
|
Alternator Power |
134kw/168kva |
|
Voltage |
380v/220v |
|
Protection |
IP23 |
|
Voltage Regulation |
±4% |
|
Insulation Class |
H |
|
Voltage Control |
AVR |
|
Net Weigh (KGS) |
2150 |
|
Dimensions (L x W x H) mm |
2800*1200*1800 (S) |
|
40FT Container |
4 units (S) |
|
Optional |
ATS (auto transfer switch) |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
