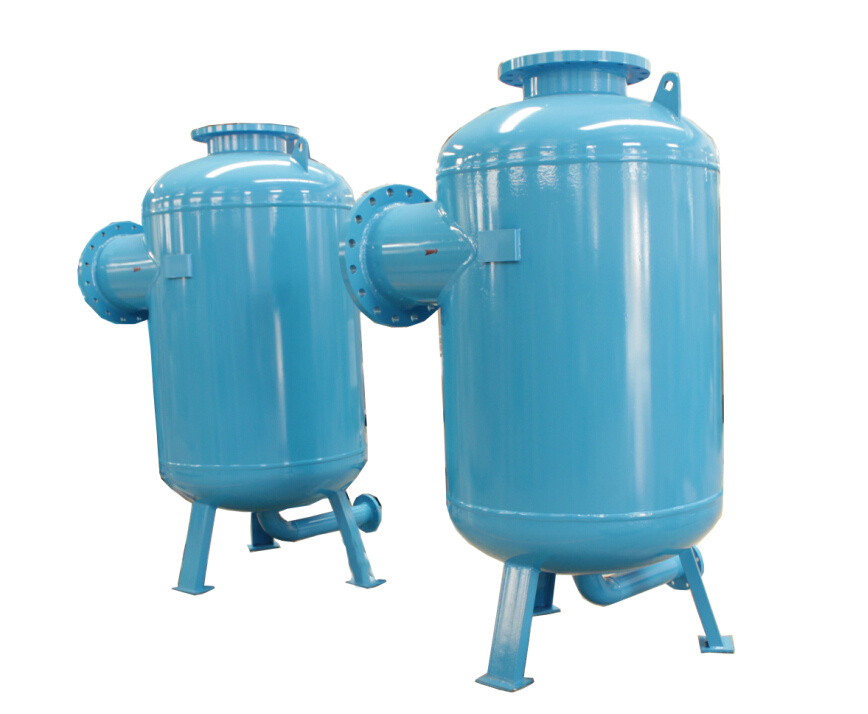

Carbon Steel Slurry Mud Separation Cyclone Water Filter

Carbon Steel Cyclone water Filter Slurry Mud Separation


Product Description:

Hydrocyclone is a continuously device that utilizes centrifugal force to accelerate the
settling rate of particles. It is one of the most important devices in the minerals industry,
 its main use in mineral processing being as a classifier, which has proved extremely
 efficient at fine separation size.






Product characteristics:
1,Structure is relatively simple, low cost, easy to install and operate. Large capacity, small floor space, versatile,
adaptable, without power, maintenance-free.

2,Compared with mechanical decontamination, expand tube, buffer tank and other grit removal equipment, it has
 its own characteristics: small size, large capacity, investment and operating costslow. In the device against the
inner wall of the intake position with swirl and deflector shield, favor the formation of cyclone; strong impact,
extended equipment life.

3,There is a guide plate in the interior wall of Swirl chamber and precipitation,which is helpful for the formation
of
 cyclone settlement, so impurities will be led into the dirt trap as soon as possible. When there is sudden
increase for pressure in the system, set the case of sewage water faster prevents impurities reveal, remains
good
sedimentation effect.

4,There is a stainless steel filter and water blocking laps on the bottom of outlet, decentralized water filters,
slowing the flow rate, and further retention of suspended impurities in the water; the water in the filter below the
water layer forming a stable rotation, suspended impurities gradually gathered around. They assembled into a
loose circle of small groups under water blocking, flow into dirt trap along the inner wall.



Working principle
Cyclone sand filter is designed and manufactured on the screening principle that solid particles in the fluid swirling and flowing in the sand filter. It is a new separation device which combines filtering device, when the water flow is under certain pressure, it flows from the inlet tangentially enters the sand filter, and generates violent whirlpool, since the sand and water is different in density, under the comprehensive action of centrifugal force, centripetal force and fluid drag force, the low density water rises and discharged from the water outlet, high density sand discharges from the sewage outlet at bottom of the device. Individual particles joint floating along the water flow will be filtrated by the second stage filtering device, so as to realize the purpose of sand removal.



Scope of application
1. Mainly applied to water quality treatment and control for the raw water and water supplying, such as: River water, well water desanding, coal washing water, mineral separation, solid-liquid separation, gas and liquid immiscible liquid separation.
2. It can be widely applied to the water source heating pump system, a heating water, central air conditioning cooling water, chilled water, steel, power, chemical and other industrial and mining enterprises, tap water, sea water, surface water, ground water.






Technical parameters:

Model of sand filter	Flow rate (T/h)	Water inlet (mm)	Water outlet (mm)	Ø diameter of cylinder (mm)	A1 (mm)	B1 (mm)	B2 (mm)	H1 (mm)	H2 (mm)	H3 (mm)
YLXC–40I	25	40	25	273	220	113	220	640	140	860
YLXC–50I	40	50	25	273	220	108	230	680	140	910
YLXC–65I	50	65	25	325	220	124	240	780	140	1030
YLXC–80I	60	80	40	325	220	118	250	830	180	1095
YLXC–100I	100	100	40	377	220	134	260	920	200	1205
YLXC–125I	160	125	50	377	320	122	300	980	200	1310
YLXC–150I	200	150	50	478	380	150	360	1010	200	1410
YLXC–200I	250	200	50	620	440	200	430	1065	200	1550
YLXC–250I	300	250	65	720	500	225	520	1170	200	1750
YLXC–300I	500	300	65	820	580	274	590	1375	250	1990

Installation Precautions

1. Hydrocyclone sand separator should be installed in the main pipe of water supply network and fixed on the
base, we need to add a bypass between the inlet and outlet.

2. In order to ensure smooth water flow in front of the device should be installed intake and intake period equal
diameter of straight pipe length equivalent to 10 to 15 times the diameter of the intake.

3. The equipment should be installed around the reserve has enough space for maintenance.

4.During normal operation, the need to open the inlet and outlet valves, close the drain valve and bypass valve.

5.depending on how much sand content of regular source of water decontamination platoon sand, open the
 drain valve at the sewage, water can flow out until the sewage process does not affect the normal use of water.

6.After sewage, close the drain valve.

7. If lack of sand discharge pressure, close the valve at the outlet.
