Changsha Kingkar Eco-Technologies Co., Ltd
Specifications
1. High efficiency, large productivity
2. Prompt Delivery
3. ISO9001&CE
4. OEM Service
Gas generator Multi-functions:
1. Burn with other fuels together for boilers, cooking stoves, melting metals. 2. Gas welding and flame spray painting
3. Thermal processing of jewelry, especially good for platinum as oxy-hydrogen flame contains no carbon
4. Fine cutting, fusion, repair and local thermal processing of delicate metal parts.
5. Direct fusion of fine copper wire and enameled wire
6. Be applicable to continuous casting templet in the steel factory
7. Removals of carbon deposit in the combustion chamber of internal combustion engine such as cars
8. The thermal processing of glass and quartz glass
9. Surface polishing of organic glass
10. Computer wire peeling
11. Cutting metals by oxygen flame
Gas generator Preface:
Oxyhydrogen Generator separates water into a mixed Oxygen and Hydrogen gas.
Full working pressure is reached in 20~30 seconds, creating a convenient form of combustible energy due to the flammability of Hydrogen and combustion-supporting nature of Oxygen. Once activated, the transient temperature can reach between 800 to 3, 000 degrees centigrade.
This can be used extensively for cutting steel, welding, brazing, and heat treating.
QUALITY ANALYSIS:
1. The electrolysis power: Have a high efficiency power, with stable and reliable electrolytic current.
The gas output is stable and adjustable, high-capacity power supply designed can ensure hydrogen energy machine twenty-four hours long uninterrupted work.
2. Electrolytic cell: Use high temperature and acid engineering materials to achieve a modular design. Good corrosion resistance, high efficiency gas production to ensure the long-term use of cell shape and not leaking.
3. Clean water and gas separation: Adopt high speed rotating water vapor separation technology and condensing gas separation technology. The gas is pure and clean, flame characteristics is first class.
4 Liquid connection fittings: Connecting parts are made of stainless steel hard pipe connections to prevent liquid leakage occurs. Even in the tempering, it won't rush off connecting tubes.
5. Maximum Safety
A. Steady, reliable fuel delivery. Fuel is available immediately after machine is switched on. No volatile fuel tanks which can rupture or explode.
B. Multiple safety devices, including overheating and in-sufficient water cut
Off switches, will automatically turn off power to ensure the safety of both equipment and user.
6. High Mobility
A. Our generators come equipped with wheels to facilitate moving the generators to the job, not the other way around.
B. Our generator immediately generates fuel as needed, eliminating the need for dangerous awkward gas tanks.
C. Fuel can be used for long periods of time without overheating peripheral equipment
7. High Temperature & Calorific value
8. Low Heat Dispersal
Use of this fuel provide a more focused heat source with less heat loss, maintaining a more comfortable, safer, lower fatigue working environment.
Technical Data Sheet of Kingkar oxy-hydrogen generator in boiler combustion:
Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
Voltage(V) | 380 ±10%,50/60Hz,three phase |
Rated capacity(KVA) | 9 | 15 | 22 | 31 |
Working pressure(Mpa) | ≤0.2 |
Relative humidity(%) | ≤90 |
Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
Cooling way | Air cooling |
Insulation class | F |
power protection grade | IP2S |
Flame temperature(T) | 800-3200 adjustable |
Working medium | Filtered water or deionized water or soft water |
Working | continuous |
environment temperature(T) | 0-40 |
Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Mr.Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.

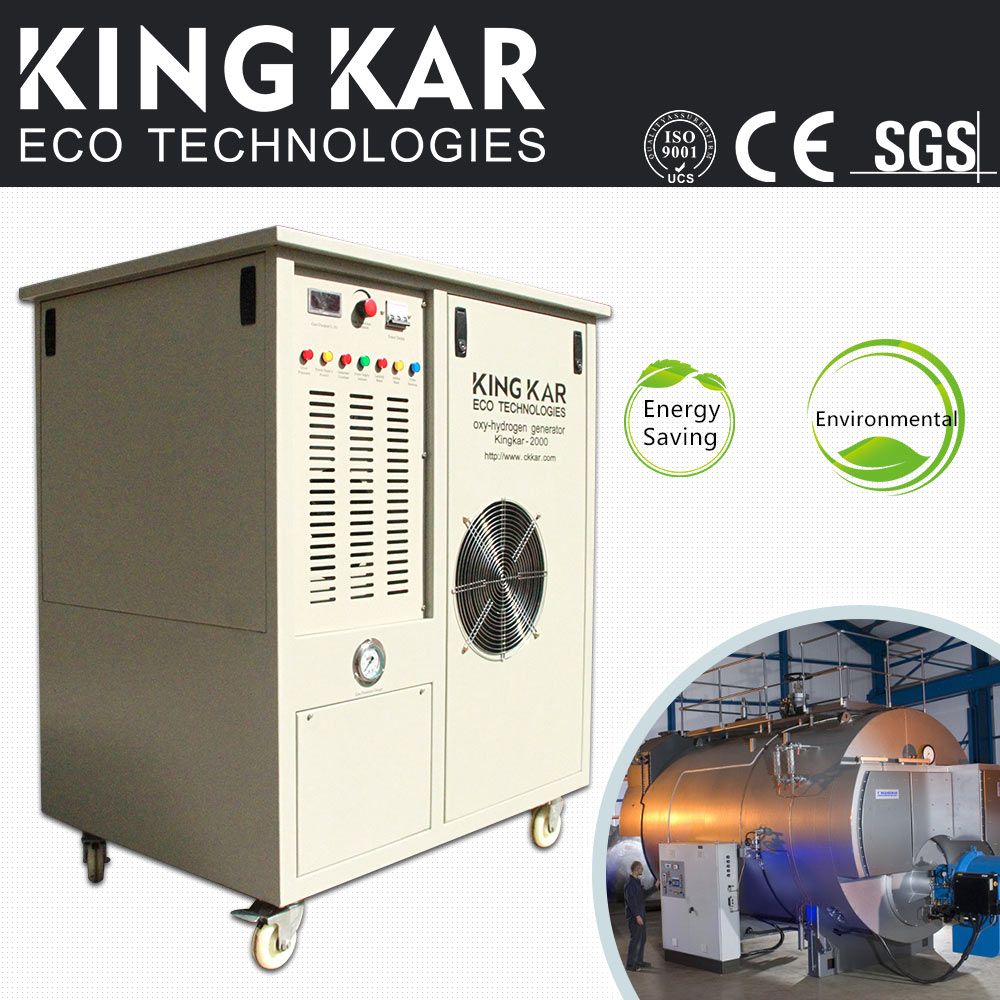

KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
