| Price: | US $ 148000/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

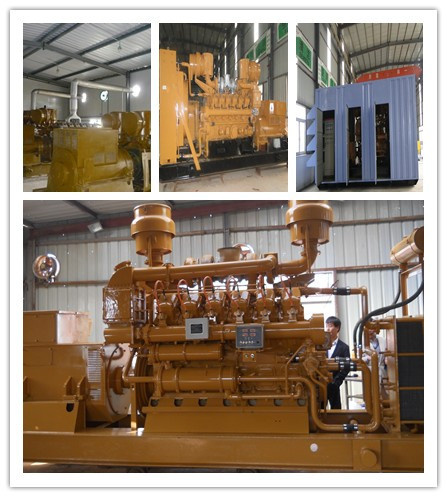

Biomass genset with CE and ISO certificate (500kw)
Biomass generated/made from:
1. Crops: straws of rice, wheat, bean, cotton, husk etc. weeds, algae etc.
2. Animal wastes and spoils.
3. Organic exist in waste water and rubbish etc.
Description of biomass gas and generating principle:
There are 3 mainly ways to generate power (biomass gas) form biomass: gasify generating, burning generating (burning directly) and CHP (Combined Heat and Power) technology.
After being gasified, the biomass gas mainly contains: CO, H2, CH4, CO2, O2, and N2.
The lowest heating value is 5~6 MJ/Nm3.
Efficiency of gasification: 1kg dried material can generate 2Nm3.
The conversation rate is more than 85%.
Thus, 1kg dry material can generate 1kwh power.
Biomass generator requirements for biomass gas:
Within 1meter from gas intake valve of generator
1. Gas temperature ≤ 40ºC
2. Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
3. H2S ≤ 200mg/Nm3
4. NH3 ≤ 20mg/Nm3
5. CH4 content ≥ 40%, changing rage ≤ 2%/min
6. Tar Content ≤ 20 mg/Nm3
7. Heat value ≥ 4.2MJ/Nm3
8. Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
9. Moisture content ≤ 40g/Nm3
| Model Number (Engine Type) | LHBMG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000r/min |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1 |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.45L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electic motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1500 running hours |
| Type | Open |
| Control system | ATS |
| Function | Automatic alarm system |
| Size | 5300x2100x2700mm |
| Weight | 12500kg |
| Prod Model: | LHBMG500 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Intake Mode: | Natural Intake |
| Sparking Mode: | Spark Plug |
| Cooling Mode: | Circulating Water Cooling |
