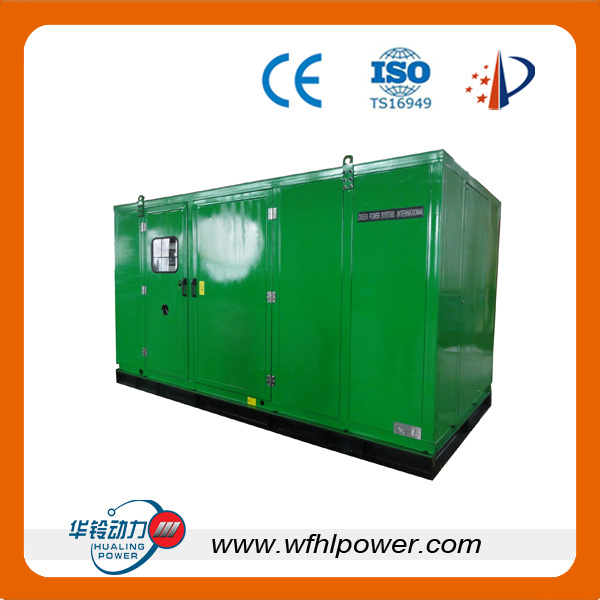

Biogas cogeneration
Type of cogeneration unit HL100
Nominal electrical power output (kW)
Warranty:
1. Since gen-set reached the agreed destination, its main parts will be guaranteed within 12 months or 1000
Hours. (which comes first )
2. We take charge of all troubles caused by gen-set's fault and repair according to the regulation stipulated by
Original plants.
3. Factors not accordance with the regulation of original plants such as fragile parts, daily consumed components,
Wrong operating, lack of maintenance are not include in the quality guarantee.
Type of cogeneration unit
|
HL100
|
Nominal electrical power output (kW)
|
100 |
Nominal voltage
|
400/230 V
|
Frequency
|
5 0 Hz
|
Operating power factor
|
0,8 – 1,0
|
Operating pressure of gas on the inlet gas train
|
2-5 kPa
|
Temperature gradient of heating system
|
90/70 C
|
Water flow of secondary circuit
|
1,73 l/s
|
Weight of cogeneration unit
|
2 50 0 kg
|
Dimensions (length x with x height)
|
3600*1180*1760
|
Exhaust temperature behind exhaust boiler
|
125-185 ° C
|
The engine comply with
|
CE, I SO16949
|
Noise pressure level of unit at distance 7 m from Silent c anopy
|
7 5 +- 3 dB/A/
|
Total recommended air exchange
|
7200 m /h
|
Installed power load
|
5,1 kW
|
Average operating power load (without emergency cooling)
|
3,4 kW
|
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
