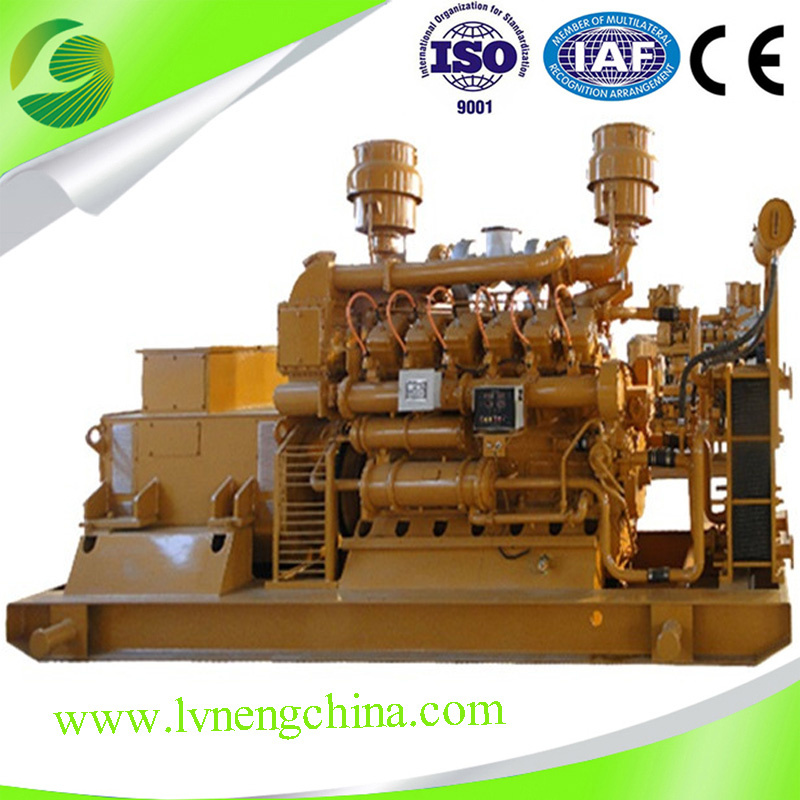

Best Seller!500Kw Shale Gas Generator price CHP
Shale gas is exploited from shale bed, its main part is located in dark mud shale or high carbon clay shale, it a kind of natural gas which absorbs or dissociates in mud stone, high carbon mud stone, shale and silt shale. Etc. Its main content is alkane. Among its compositions, the majority is methane. Ethane, propane and butane take a little proportion, it also contains H2S, CO2, N2, aqueous vapor and small amount of inert gas, such as He, and Ne, , etc. Besides, there are many by-products in the process of refining oil from oil shale. The exhaust gas can be used as gas fuel like coal gas.
Requirements for shale gas:
Within 1m to the intake valve of gas generator set
Gas temperature<40º C
Pressure of natural gas: 3--20 kpa, rate of pressure change <1 kpa/min;
H2S≤ 200mg/Nm3;
Moisture content ≤ 40g/Nm3;
Impurity particle size ≤ 5µ M, impurity content ≤ 30 mg/Nm3
Heat value≥ 4.2MJ/Nm3
Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Scope of application: Biogas generator set is widely used in the many area where can generate biogas, like rubbish landfill, livestock excrement disposal, industrial organism disposal.
SHANDONG LVNENG POWER EQUIPMENT CO., LTD. |
Address: High-Tech Industries Development Zone Jinan City, Shandong,China |
Website: www.lvnengdongli.com/en |
| |
| |
Parameter of shale gas Generator Set |
Model Number (Engine Type) | LNSG500 |
Brand Name | LVNENG |
Prime Power/Standby Power | 400KW/500KW |
Rated Speed | 1000/1200RPM |
Rated Frequency | 50/60Hz |
Rated Voltage | 400V/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1s |
Heat consumption | ≤11mj/kw.h |
Lubricant Consumption | ≤1.0g/kw.h |
Engine Capacity | 71.4L |
Cylinder Number | 12-V |
Cylinder Bore | 190mm |
Stroke | 210mm |
Starting System | DC 24V electric motor |
Cooling method | water cooler |
Lubricant method | Passive and flying lubricant |
Isolation class | H |
Protection | IP23 |
Alternator | Siemens |
Power Factor | 0.8 lagging |
Exciting method | brushless |
Colour | your choice |
Certificates | ISO 9001:2008, CE |
Warranty | 1 year or 1000 running hours which arrives first |
Type | Open |
Control system | Automatic alarm system |
Size | 6200x2100x2800mm |
weight | 12500kg |
JiNan LVNENG POWER MACHINERY EQUIPMENT Co., Ltd was founded in July, 2009. It's located in high-tech development zone in the east of Jinan city with advantageous geographical position and good transport facilities The Company owns two factory regions research and production, with more than 150 staffs in company. And twenty of them are high-level technical talented person We own developed production line, impeccable quality test system and professional sale and service-after-sell team, and our company is committed to research production marketing and after-sale service of synthesis firm. With our excellent quality product and perfect after-sale service, we won praises and approbation from our customers.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. And our main products are kinds of diesel engines, diesel generator and fuel gas generator, including natural gas generator methane gas generator straw gas generator biomass gas generator sets coal gas generator, coke oven gas generator sets, Mobile power station(Mobile trailer series), Static-speaker unit, Diesel engine and diesel generator sets etc.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
All large, medium and small power products can be produced and the power performance, economical efficiency and reliability are all in the advanced level of this field, with the improvement of R & D department, Our Company install the valve seal and exhaust temperature meter for the products which are out form company, really save fuel consumption/automatic temperature control. For the vast number of users to save a lot of cost, has been widely praised by users
JiNan LVNENG POWER MACHINERY EQUIPMENT CO, . Ltd persist in scientific and technological innovation manage Innovation development direction Always insist on customer-first Business ideas of Mutual benefit, insist on Energy saving and environmental protection Safe and reliable quality policy Insist on fast\Exquisite Standard Service tenet. Inherit" Quality is the first, credit as prerequisite" as Core concept, constantly creating greater value for customers, Promoting sustained and healthy development of the company
"LVNENG, Dedication power \Pursuit excellence" A broad application market, quality products, quality and service will be our cooperation to build a good platform. Join hands with LVNENG success-together. Looking forward to Look forward to working with you.
