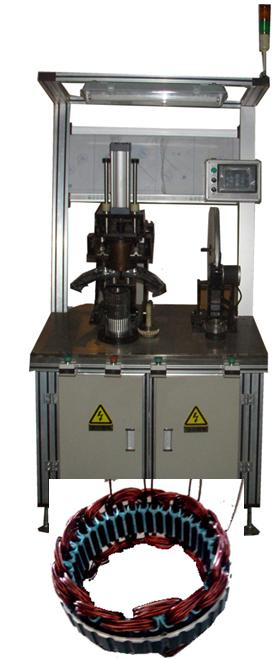

The generator stator winding embedding machine
JXFD1252

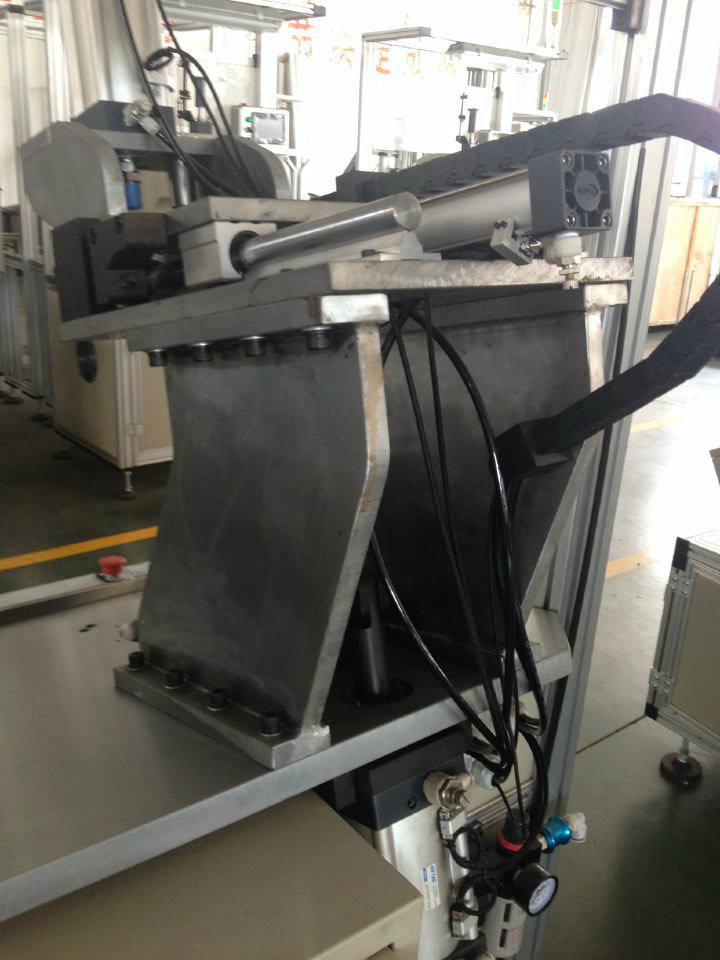

Generator stator wire inserting machine is mainly used for automatic embedded auto generator stator wave type coil after molding; automatic wire embedding mechanism of power by the brake motor driven precision ball screw, for wedge mechanism adopts the step feeding pneumatic molding structure; action can be divided into manual and automatic; the action process of touch screen monitor, with anti misoperation and fault alarm function.
It features
The AC servo motor drive system, pneumatic system, by the industrial programmable PLC integrated control. The machine is equipped with a man-machine control interface, with status display, fault alarm, all kinds of parameter settings and other functions, has wide adaptation range, high degree of automation, simple operation, mould replacement convenient etc..
| technical parameters |
| The machine type | automatic type |
| The machine features | stator coil automatic embedding, wave around after the automatic slot wedge |
| Drive mode | electric and pneumatic |
| Air pressure | greater than or equal to 0.6MPa |
| Input power | 3φ380V/50Hz |
| Input power | 1.7kw |
| Machine tact | Max 45s |
| Size | 1000*1400*1800mm |
