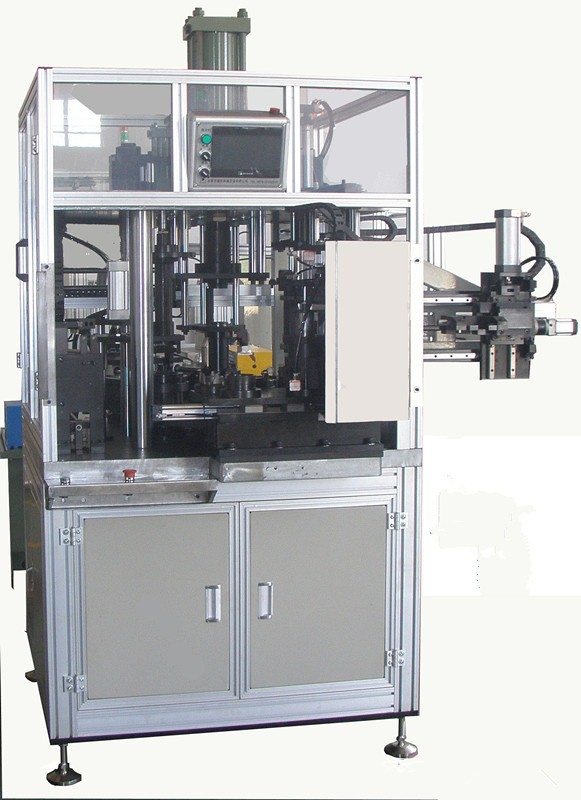

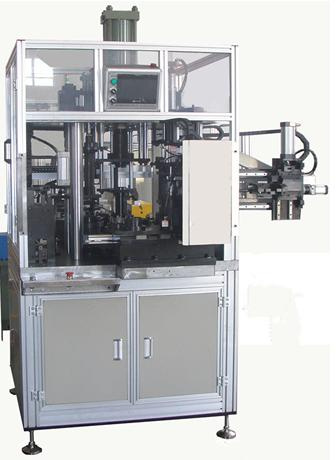

Alternator Rotor Shaft Entering MachineJXFD1441
use:Generator rotor shaft into machine is auto generator rotor shaft into special equipment, suitable for all kinds of shaft into iron core.
The working principleWhen working, the claw pole, coil and the shaft into the positioning tool, start the machine, the mechanical hand parts sequentially combination, combination is completed, the turntable will a good combination of components to the closure position, the closure mechanism of closure on the workpiece, folded after the completion of the rotation of the turntable, the workpiece to the input shaft station, into the shaft station into the shaft, closing in, after the completion of the turntable to rotate, to detect station, shaft height of workpiece detection, detection of qualified manipulator remove the qualified workpiece, into the pipeline.
Features: use automatic structure; automatic closure, automatic shaft, shaft automatic height detection, high production efficiency;
Each module can be quickly and convenient replacement or adjustment, to adapt to different specifications and models of shaft;
This machine adopts Siemens PLC control, stable performance, with self check function, can display the common faults in the.
technical parameters | Conditions of use |
machine type | semi automatic | power supply input | 380V 50Hz three-phase |
Size | 1350*1120*2000mm | Input power | 10.5kw |
Hydraulic station size | 1250*1200*1300mm | The environment temperature | 0-45 degrees without freezing phenomenon |
Material used | enameled round wire | Humidity | 90% the following no condensation |
machine beats | MAX 20s | | |
