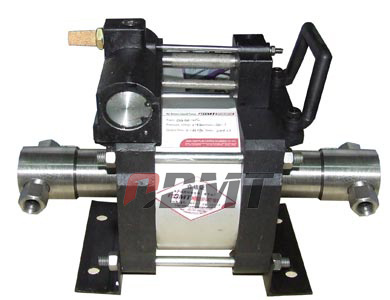

Air Driven Liquid Pump, Pnuematic Pump, Power for Impulse Calibration Bench, Liquid Compress Booster
| Price: |
US $ 589/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
Our air drvein liquid pumps offer many advantages over electrically driven pumps:
High quality product
Outstanding life time
Few moving parts
Portable design
Easy to install and operate
No electrical power required
Pressure held without energy consumption and without media heating
Standard ratios available for pressures to 300Mpa (43, 500 psi)
Requires no lubrication
Best price / performance ratio
Excellent worldwide service for spares and repairs
Applications include:
Pressure testing
Work holding/power clamping
Jacking/lifting
Valve actuator control
Hydraulic cylinder actuation
Press safety overload devices
Roller tensioning
Metering
Precision lubrication and spraying
Liquified gas transfer
Genaral Information
Air Driven Liquid Pumps ()
ODMT company has more than ten years of hydraulic and pneumatic engineering experience in the design and manufacture of air driven liquid pumps. Continuous investment in new machinery and advanced technology imported keeps ODMT at the forefront of the field. We offer the most complete range of models in the industry measured for:
A. Capability of ultimate pressure, flow or output horsepower.
B. Compatibility with a broad variety of liquids, such as oil, water and chemical applications.
ODMT high efficiency pumps are available for a wide range of applications, which are air driven pumps at a drive air pressure of 1 to 8 bar (14, 5 to 116 psi). Basically the principle of operation is similar to a reciprocating amplifier where control of the piston at the end position is regulated by a pilot operated 4/2 way valve.
ODMT pumps feature a large air piston joint to a smaller diameter plunger. The pressure ratio is the difference of these two areas and is the method to determine maximum outlet pressure. Higher pressures are obtained by using higher pressure ratios. ODMT model numbers reflect the pumps' nominal pressure ratios, The nominal liquid pressure can be calculated by multiplying the pressure ratio by the available shop air pressure. The outlet pressure is easily to set through a simple air regulator.
ODMT liquid pumps cycle automatically. When the pressure is built up, the number of cycles slow down. The pump stops automatically when the output pressure forces are equal. The pumps restarts with a slight drop in the outlet pressure or an increase in the air drive pressure. It should be mentioned that pump performance can be affected by a number of conditions, such as freezing of muffler or pilot valves(which is caused by moisture in air lines), inadequate inlet air line sizes and dirty filters.
Please consult ODMT for exact flow conditions.
ODMT will offer complete technical and service support for all ODMT pumps.
Applications for Air Driven Liquid Pumps
Series S up to 1, 920 bar (27, 840 psi)
The rugged construction, light weight and wide range of pressure ratios make these series of pumps ideal for powering a variety of oil/hydraulic operations.
They are available as single or double acting models.
| Driving gas pressure 6bar,M Series gas-liquid booster pump,gas-liquid booster pump parameter table |
| |
|---|
| Type |
Pressure
ratio | (bar)
Outlet pressure | Inlet
A | Outlet
B | Output pressure(bar) |
|---|
| 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
|---|
| Flow L / min(L/min) |
|---|
| M4 | 4:1 | 32 | 1″ | 1/2″ | 15.07 | 0 | | | | | | | | | | | | | | |
|---|
| M10 | 10:1 | 80 | 1/2″ | 1/2″ | 5.88 | 1.52 | 0 | | | | | | | | | | | | | |
|---|
| M16 | 16:1 | 128 | 1/2″ | 1/2″ | 3.76 | 1.67 | 0 | | | | | | | | | | | | | |
|---|
| M30 | 30:1 | 240 | 1/2″ | 3/8″ | 1.85 | 1.72 | 1.42 | 0.51 | 0 | | | | | | | | | | | |
|---|
| M44 | 44:1 | 352 | 3/8″ | 3/8″ | 1.35 | 1.12 | 0.84 | 0.69 | 0.36 | 0.22 | 0 | | | | | | | | | |
|---|
| M64 | 64:1 | 512 | 3/8″ | 3/8″ | 0.94 | 0.84 | 0.56 | 0.37 | 0.23 | 0.15 | 0.11 | 0.06 | 0 | | | | | | | |
|---|
| M100 | 100:1 | 800 | 3/8″ | 3/8″ | 0.60 | 0.52 | 0.49 | 0.45 | 0.37 | 0.32 | 0.31 | 0.26 | 0.21 | 0.12 | 0.09 | 0 | | | | |
|---|
| M170 | 170:1 | 1360 | 3/8″ | 3/8″ | 0.33 | 0.32 | 0.31 | 0.29 | 0.27 | 0.25 | 0.22 | 0.19 | 0.16 | 0.15 | 0.13 | 0.12 | 0.08 | 0.03 | 0.01 | 0 |
|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Air Driven Liquid Pump,pnuematic pump,power for impulse calibration bench/static and burst test bench,liquid compress booster
| Prod Model: |
OGD06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
ODMT the field of fluid control company as a global professional services provider, serving the petroleum, petrochemicals, CNG vehicles, shipbuilding, aviation, aerospace, marine, military, automotive, nuclear power, transportation, metallurgy and other industries and major universities, research institutes related laboratories, provide all kinds of fluid transfer equipment, pressure detection and control equipment, research and development, production, sales and service of high-tech enterprises.
My company has its own oil and gas wellhead equipment, detection and control technology research and development center, and automotive parts testing technology research and development center, specializing in wellhead control panel and field pressure test equipment and auto parts pressure testing equipment and new technology development demand for research and development.
Specializing in gas-charged, high-pressure systems engineering consulting, design, manufacture, installation, commissioning, maintenance services, using the world's most advanced charging technology, the liquid pressure up to 1000MPa, gas pressure up to 200MPa.
Services:
(1) as a professional automotive hose testing machine manufacturer, main products are: Automotive hose burst test machine, flex hose testing machine, tube burst test machine, hose pressure testing machine, and other auto parts pressure test etc., is a national car testing center standards required testing equipment;
(2) Office Depot U. S. Special oil-free gas booster including air booster, nitrogen booster compressor, oxygen booster, booster helium, hydrogen booster, argon gas booster, etc.;
(3) can also be customized according to customer needs tightness pressure (leak) test systems, hydraulic (hydrostatic) pressure test systems, fittings, valves, fittings, cylinders, pressure vessels, pressure switches, sensors, and instruments stress testing instrument systems, pressure testing and pressure monitoring system data acquisition and processing system.
(4) agent in Germany MAXIMATOR pneumatic booster pump
(5) by force-cylinder gas-liquid, liquid by power cylinder stamping equipment, no rivets to connect the mold, no rivets to connect the device, bolt nut pressing machine, the pressure assembly production lines,
To ensure quality, improve competitiveness, reduce customer production costs, ODMT continue to integrate the upstream resources, agents and equipment used by the U. S. HASKAL pneumatic pumps, pneumatic pumps SC United States, Germany MAXIMATOR pneumatic pump, pneumatic valve FESTO of Germany, the United States WIKA pressure gauges, etc. The world's top good parts, high-quality, top-level configuration to ensure that the overall performance of equipment ODMT stability, to end customers minds at ease.
Pursuit of excellence, first fight forever is our business philosophy, customer win-win situation, what customers are thinking, is the company's business ideas. Willing to work with customers to create a better tomorrow.
