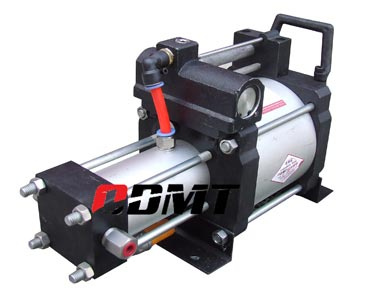

ODMT Air Driven Gas Boosters provide for pressures up to 39, 000 psi (2690 bar). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging. Key features include:
Air driven - no electricity required
No airline lubricator required
Hydrocarbon free - separation between air and gas sections
Pressures to 39, 000 psi (2690 bar)
Wide range of models
Built-in-cooling on most models
Standard and custom systems available.
Applications for Air Driven Gas Boosters
ODMT Air Driven Gas Boosters are suitable for the oil free compression of
Gases and air. Industrial gases like Argon, Helium, Hydrogen and Nitrogen can be
Compressed to operating pressures to 800 bar.
Air driven boosters are an efficient alternative instead of electrically driven products and can be used in explosion- proof areas.
As a result of the wide range of models it is possible to select the optimum booster for each application. Single stage, double acting or two stage boosters or a combination of these models can be used to achieve different operating pressures and flow capacities.
Applications
Pressure test with gas
Gas transfer
Gas recovery
Charging of nitrogen accumulators
Supply for isolating gas systems
Gas assisted injection moulding
Transfer of oxygen cylinders
Charging of breathing air bottles
Leak test
Static strength and blasting tests for valves, pipelines and pressure vessels.
Safety valve adjusting
Operating Principle
ODMT air driven gas boosters feature a large air piston is charged with low pressure (air piston (3)) and works on a small area with high pressure. The continuous operation is achieved by a pilot operated 4/2 way valve. The outlet pressure is directly related to the set air drive pressure.
According to the formulas indicated in the table with technical features of the boosters, the static end pressure can be calculated. At this pressure a force balance between drive section and gas section is achieved. The booster stalls when this end pressure is reached, and does not consume any further air.
A pressure drop at the high pressure side or a pressure increase at the drive side starts the booster automatically until the force balance is achieved again.
Additionally the ODMT boosters can be switched on and off automatically through ODMT air pilot switches, contact gauges or external control devices
Key feautures:
STA pumps are available with polyurethan seals, which provides significantly better service life as well.
Pump head fitted with exhaust cooling devices.
Provide for air drive pressures up to 10 bar (145psi). Suggest operating pressure be not above 8 bar so as to protect pumps for long life durability.
All parts in contact with the gas are made of aluminium or resp. Stain- less steel.
