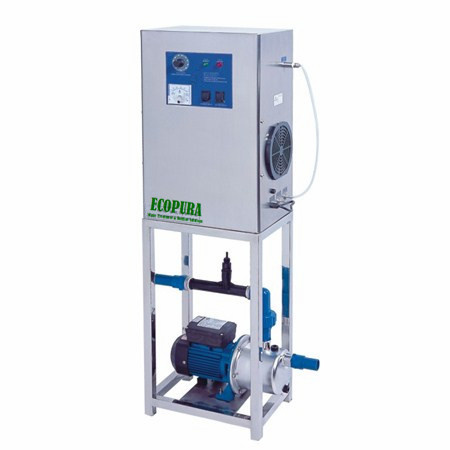

All our ozone generators are based on the latest modern technologies, including Insulated Gate Bipolar Transistors (IGBT) and Modular Power Supply units. Ozone is generated by corona discharge in a tubular chamber with glass sleeve working as a dielectric. All key components are made of highly corrosion-resistant materials, preventing their oxidation by ozone and prolonging system service life. System is also equipped with an anti-backflow device, preventing water from entering the unit
Advantages:
Compact and easy to use;
Flexible ozone production rate
Unique electrode and dielectric design provide maximum discharge efficiency
Anti-backflow design prevents water backflow
24h/7D continuous operation
High-quality stainless steel housing to avoid corrosion
Air/oxygen intake; Can be easily switched from one source to another;
|
Model |
OZ-3g |
OZ-5g |
OZ-7g |
OZ-10g |
OZ-15g |
|
Capacity ( g/h) |
3 |
5 |
7 |
10 |
15 |
|
Cooling method |
Air-cooling |
Air-cooling |
Air-cooling |
Air-cooling |
Air-cooling |
|
Max Output concentration |
Oxygen source:30~50 Air source:l0~25 |
|
Size:L*W*H |
350*230*530 |
350*230*600 |
470*230*730 |
|
Weight |
11 |
12 |
12 |
18 |
19 |
|
Power |
120 |
140 |
160 |
320 |
350 |
|
Total Power input |
220~240V, 50~60 HZ; 110V, 50~60 HZ |
|
Gas sources |
Oxygen or dry clean air |
