Description:

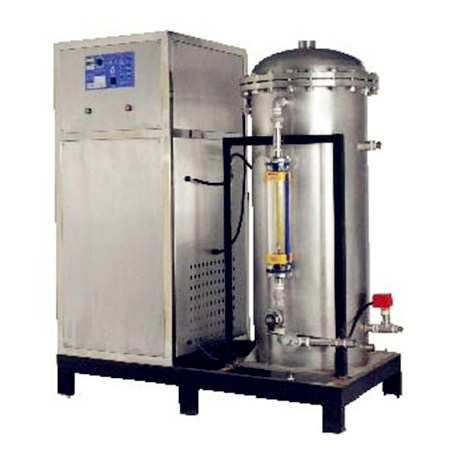

The products utilize large power IGBT modules, extremely stable, high efficiency, long lifespan Ti-gold dehydroxylation quartz glass structure, special Ozone-resistant dual pipeline design, world-class essential components and patented world-leading intelligent design.
Features:
Intelligent design
1. No ozone alert. Ozone generator does not stop automatically, and alert stops when ozone detected. The functionindicates whether the discharging units work normally, and no alert will be issued in the following occasions: A. No gas input; B. Blocked or leaking gas pipeline
2. Water backflow alert. Shutdown the oxygen concentrator or dry
3. Over temperature alert and protection by shutdown. Alert stops and ozone generator resumes operation when temperature is lower than 50° C (Celsius degree)
4. Circuit failure alert
5. Stepless Ozone output adjustment
6. Ti-gold dehydroxylation quartz glass structure design makes it extremely long lifespan, high concentration ozone output and power consumption and volume are about 20%-50% of similar product on the market.
|
Model |
SOZ-
300G |
SOZ-
400G |
SOZ-
500G |
SOZ-
600G |
SOZ-
1000G |
SOZ-
1500G |
SOZ-
2000G |
|
Capacity (g/h) |
300 |
400 |
500 |
600 |
1000 |
1500 |
2000 |
|
Cooling method |
Water cooling |
|
Max. output concentration (g/m 3) |
Oxygen source:60~120 Air source:16~35 |
|
L*W*H(mm) |
800*600*1450 |
1200*600*1450 |
2000*600*1450 |
2600*600*1450 |
3500*600*1450 |
|
Weight( kg) |
120 |
150 |
200 |
250 |
350 |
500 |
700 |
|
Power (Kw) |
3.2 |
4.5 |
5.5 |
6.5 |
10.2 |
15.5 |
22 |
|
Electrical power supply |
380~417V, 50~60 HZ |
|
Gas source |
oxygen or dry clean air |
