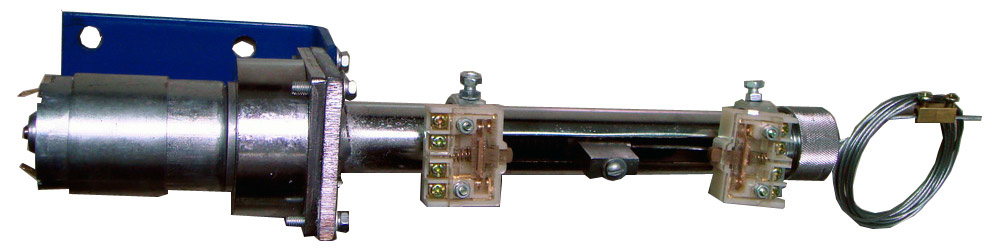

Ace/Dec Regulator used in mechanical adjustment generator accelerograph control to achieve frequency adjustment, transfer power.
Mainly used in the mechanical adjustment diesel gen-set's accelerograph control, engine Acc and Dec control component, Also acts as rotate speed controlling in The automatise diesel gen-set to achieve the gen-set frequency adjustment or parallel running adjustment. Can be distribute and transfer the power loaden.
Specification:
Rating voltage: 24V
Traction: 45N
Weight: 1.75kg
Working environment:
Height above sea level: 4000m
Environment temp.: -40° C~+55° C
Comparatively temp.: ≤ 95% (25° C)
Characteristic:
Can be achieved the timing, positive and reverse stepless adjusting smoothly.
Can be electric operation and hand operation, once the electric operation is failure, it can be hand operation through the clutch transfer.
When the diesel engine accelerograph positioned in the lowest rotate speed limit or in the highest rotate speed limit, the security protector will take action and the Acc/Dec adjustmnet will auto-stop immediately.
When the diesel engine approach or up to the rating rotate speed, it will be a rotate speed signal from the Acc/Dec adjustmnet to the automatize gen-sets to achieve the auto switch.
