Half-wave phase-controlled thyristor type (AVR),
Suits to Stanford generators.
Automatic Voltage Regulator

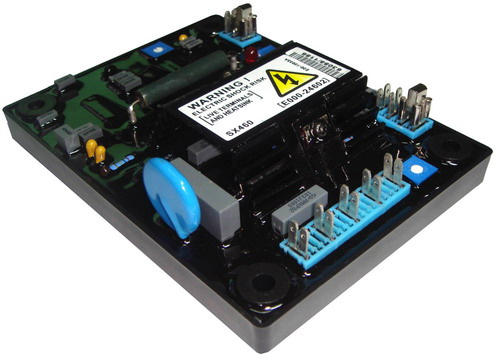

SX460 Automatic Voltage Regulator is a half-wave phase-controlled thyristor type.
Automatic Voltage Regulator(AVR) and forms part of the excitation system for abrush-less generator. It suits to Stanford generators.
In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived
Directly from the generator terminals.
Positive voltage build up from residual levets is ensured by the use of efficient semiconductors in the power circuitry of the AVR. The AVR is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/-1.0%.
Technical specifications
1. Input
Voltage Jumper selectable
95-132V AC or 190-264V AC
Frequency 50-60Hz nominal
Phase 1
2. Output
Voltage Max 90V DC at 207V AC input
Current Continuous 4A DC, Intermittent 6A for 10 secs
Resistance 15 ohms minimum.
3. Regulation
+/-1.0% ( with 4% engine governing)
4. Thermal drift
0.05% per deg. C change in AVR ambient (after10minutes)
5. Typical system response
AVR response 20ms
Filed current to 90% 80ms
Machine volts to 97% 300ms
6. External voltage adjustment
+/-10% with 1k ohm 1 watt trimmer (Applies to mod status F onwards. Generator de-rate may apply. Check with factory.
7. Under frequency protection
Set point 95%Hz( Factory set, semi-sealed, jumper
Selectable) slope 170% down to 30Hz
8. Unit power dissipation
10 watts maximum
9. Build up voltage
4 volts @ AVR terminals
10. Environmental
Vibration 20-100Hz 50mm/sec
100Hz 2KHz 3.3G
Operation temperature - 40 to +70oC
Relative humidity0-70oC 95%( Non condensing)
Storage temperature - 55 to 80oC
