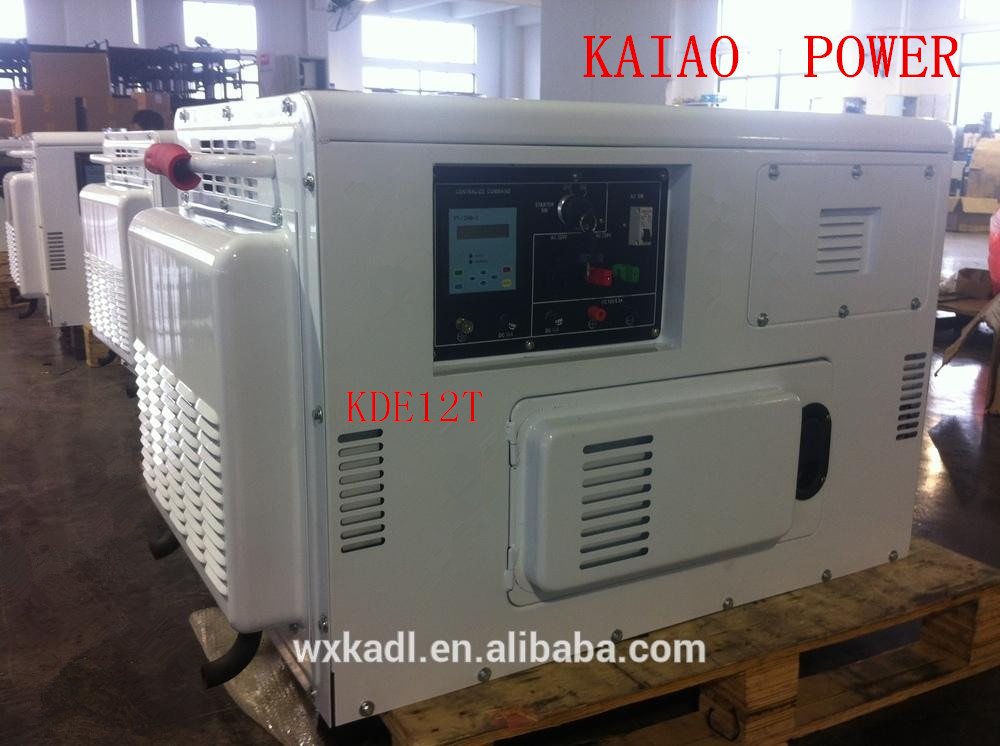

KDE12T(AC Single Phase 50HZ/8KW key start silent diesel generator with digital panel board for shop and hotel use )
Engine Model: KA840.11KW/3000rpm , Twin-Cylinders air-cooled diesel engine
1. Factory directly supply
2. CE&ISO9001 approved
3. Various kinds&accept OEM design
4. Aviation Technology, Military Quality
5. Rapid starts
| Diesel generator set KDE12T |
| Model | KDE12T |
| Frequency (HZ) | 50HZ | 60HZ |
| Output power (KVA) | 8.5HZ | 9.5HZ |
| Max. Power(KVA) | 9.5KW | 10.5KW |
| Voltage (V) | 115/230V | 120/240V |
| Current (A) | 73.9/36.9A | 79.2/39.6A |
| Engine speed (r/min) | 3000rpm | 3600rpm |
| Phase | A C Single Phase |
| Power factor(cosφ) | 1 |
| Excitation system | Self-excited constant voltage |
| Noise level (7m) | DB (A): 72 |
| Fuel tank capacity (L) | 25L |
| Structure | Silent Type |
| Panel | digital panel board |
| Output socket | Two |
| DC12V output | Terminal post |
| Engine Model | KA840 |
| Bore*stroke (mm) | 86 *72mm |
| Displacement (L) | 0.863L |
| Power (KW) | 11KW/3000rpm |
| Fuel consumption rate (g. KW/h) | <340 |
| Compression ratio | 19 |
| Lubrication system | Spring |
| Engine starting system | Electric starter |
| Diesel oil model | Summer: 0#, winter: -10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.65 |
| Battery capacity(V-AH) | 12V-36Ah |
| Net weight (KG) | 245Kg |
| Dimension(L*W*H) | 1180×720×820mm |
