AC Automatic Generator Testing Load Bank
1.Product Introduction

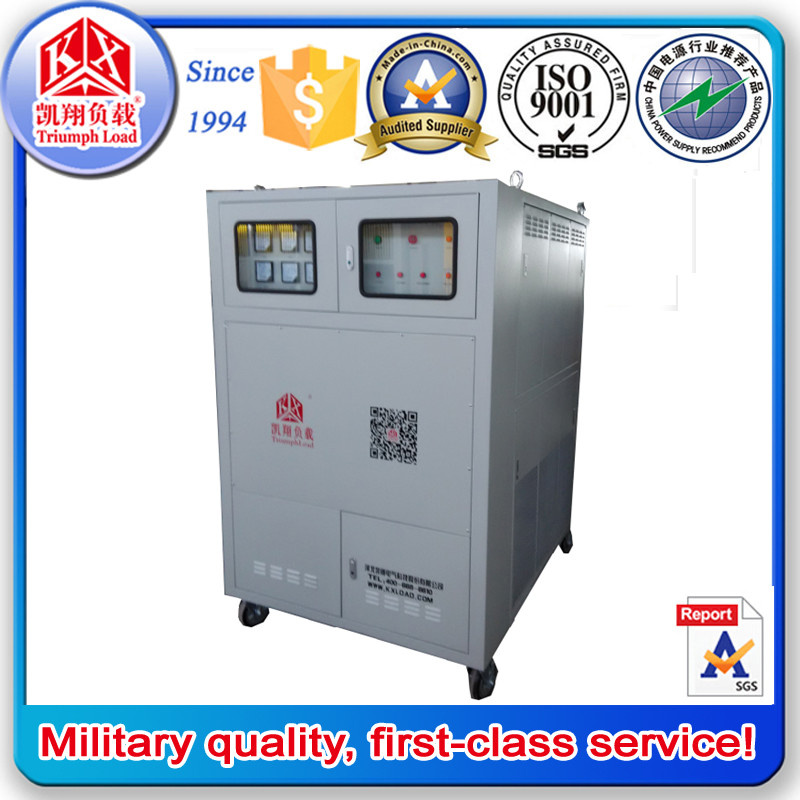

AC415V 180KW AC Automatic Generator Testing Load Bank
It is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.
This machine is small,light weight digital table display,easy operation,high intelligence, set the parameters of constant
current discharge process can be done automatically.

2. AC415-180KW AC Automatic Generator Testing Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)

3. AC415-180KW AC Automatic Generator Testing Load Bank Technical  Specifications

Technical parameter

AC415-180kW

Rated voltage /Frequency
AC 415V/50Hz,3 Phase 4 Wire

Max load power
Resistive load: 180kW

Load step
Resistive load: 5steps, 36,36,36,36,36KW

Power factor
1

Load Tolerance(each step)
±5%

Load Tolerance(overall)
±3%

Display Precision
0.5 class

Control Power Supply
External AC415/240V,50Hz  3 phase 4 wire

Wire Connection
Load power supply input--Copper bar (star coupling)

Insulation grade
F class

Duty cycle
Continuous

Cooling
Forced air cooling, Horizontal inlet air, Upward cooling

Transportation
Hoisting, there are lifting lug in top of 304 stainless steel casing and casters in
bottom of load bank

Casing Color
Grey(RAL7035)

Dimension
About 120mm*1500mm*1700mm(length*width*height)

Weight
About 300kg

Operating Environment Parameter

Ambient Temperature
-10ºC~+50ºC

Relative Humidity
≤95%

Altitude
≤2500 meters

Atmospheric Pressure
86~106kPa

Main components brand

Contactor
Schneider

Circuit Breaker
Siemens

Fuse
Delixi

SCM
Infineon

Alloy Resistor
Kaixiang

Data Management Software
Kaixiang

4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.

5.Contact Information
Stella Cao
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT
TEL:+86-0311-86125326
FAX:+86-0311-86128298
Mobile:+86-15081159220
Web:www.load-banks.com
Add:No.68,Jianshe Street,Yuhua District,Shijiazhuang,Hebei,China
Prod Model: AC415-180KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: AC415V
Frequency: 50Hz
Rated Power: 180kw
Insulation Grade: F Class
