AC 380V Generator Test Dummy Loadbank 1000kw

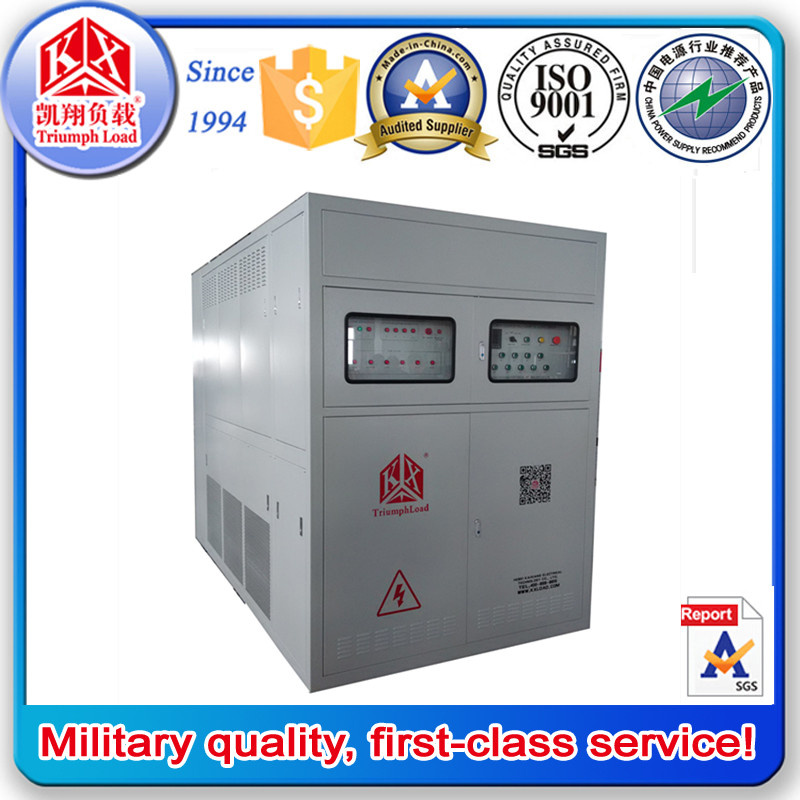

AC 380V Generator Test Dummy Loadbank 1000KW

1.Product Introduction
AC 380V Generator Test Dummy Loadbank 1000KW
The system can accurately test output power and load capacity with all kinds of generators, generator sets for all main electrical parameters including the dynamic parameters tested.
System monitoring and load the cabinets of two parts, with the host computer with the use of intelligent, auto-complete for all the electrical parameters of the generator set special test, while generating charts, graphs and test reports, from full manual operation. Provides a scientific means of detection equipment for the power generators.

2.AC 380V Generator Test Dummy Loadbank 1000KW Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)

3.AC 380V Generator Test Dummy Loadbank 1000KW Technical Specifications

Technical parameter
AC380-1000kW
Rated voltage /Frequency	3 Phase 4 Wire AC 380V/50Hz
Max load power	Resistive load: 1000kW
Load step	Resistive load: 10 steps; 10,20,20,50,100,100,100,200,200,200kW
Power factor	1
Load Tolerance(each step)	±5%
Load Tolerance(overall)	±3%
Display Precision	0.5 class
Control Power Supply	External AC380V/50Hz  3 phase 4 wire
Wire Connection	Load Power Supply Input--Copper bar (star connection) Control power supply input--Connector bar
Insulation grade	F class
Duty cycle	Continuous
Cooling	Forced air cooling, Horizontal inlet air, Upward cooling
Transportation	Hoisting, there are lifting lug in top of casing and casters in bottom of load bank
Casing Color	Grey(RAL7035)
Dimension	About 2500 mm*2000mm*2000mm(length*width*height)
Weight	About 1500kg
Operating Environment Parameter
Ambient Temperature	-10ºC~+50ºC
Relative Humidity	≤95%
Altitude	≤2500 meters
Atmospheric Pressure	86~106kPa
Main components brand
Contactor	Schneider
Circuit Breaker	Siemens
Fuse	Delixi
SCM	Infineon
Alloy Resistor	Kaixiang
Data Management Software	Kaixiang


4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
