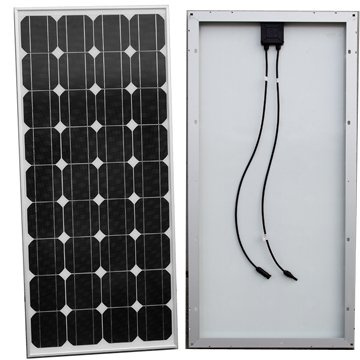

Soalr panel
High efficiency 17.3%
Size: 1195*541*40
CE, TUV, IEC, ISO certificate
Limited warranty 25 yrs
Features
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Rigorous quality control to meet highest international standards.
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
4. Unique frame design with high mechanical strength for easy Installation.
5. Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
6. Outstanding electrical performance under high temperature and low irradiance conditons.
Solar Panel Applications
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems.
3. Residential roof-top systems.
4. Any commercial or industrial ground mount systems.
5. Other industrial or commercial applications
Solar Panel Quality and Warranty
1. Peak power of single module in guaranteed in +3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power.
3. Rigorous quality control meets the highest international standard.
4.5 years limited warranty on material and workmanship.
5.10 years and 25 years limited warranty for minimum power output.
Solar Panel Data Sheet |
Description of Specification |
Configuration |
Units |
Model |
NES36-5-95M |
General Data |
Maximum Power |
Pm(W) |
Watts |
95 |
Watt Tolerance |
|
% |
± 3 |
Application |
|
|
DC12V |
Storage & Operating Temperature |
|
Deg. C |
-45~85 |
Standard Test Conditions: Cell Temperature: 25 Deg. C, Irradiance: 1kW/m 2, Air Mass: 1.5 |
Voltage & Ampereage |
Maximum System Voltage |
|
Volts |
1000VDC |
Maximum Operating Voltage |
Vmp |
Volts |
18.6 |
Maximum Operating Current |
Imp |
Amps |
5.11 |
Open Circuit Voltage |
Voc |
Volts |
22.4 |
Short Circuit Current |
Isc |
Amps |
5.59 |
Solar Cell |
Cell Type and Diameter |
|
|
Monocrystalline, 125mm× 125mm |
Number of Cells |
In Series |
|
36(4× 9) |
Temperatures Coefficients |
Temp Coefficent of Isc |
Tk Isc |
% per deg. C |
0.055 |
Temp Coefficent of Voc |
Tk Voc |
% per deg. C |
-0.34 |
Temp Coefficient of Pmax |
Tk Pmax |
% per deg. C |
-0.48 |
Normal Op. Cell Temp (NOCT) |
|
deg. C |
45± 2 |
Materials & Accessories Data (All Certified by CE and TUV) |
Junction Box |
|
|
IP65 rated |
Output Cable: Wire Diameter: 4m |
Length |
mm |
900 |
Type of Cable Connector |
|
|
MC Plug Type IV |
Frame: Aluminum Alloy |
|
|
Anodized |
Front Glass: Low Iron, High Transmisson, Tempered glass |
Thickness |
|
3.2mm |
Cell Encapsulation Material |
EVA |
mm |
0.5mm |
Backsheet Cover Material |
TPT |
mm |
0.3mm |
Quality Warranty (Output Power) |
|
Power Production |
90% |
Years |
10 |
80% |
Years |
25 |
Manufacturing |
|
Years |
5 |
Dimensions, Packing & Loading |
Dimensions: Length× Width× Height |
|
mm |
1195× 541× 35 |
Weight |
|
kg |
8 |
No. 36 Research Institute of CETC is A FIRST CLASS Scientific Research Institute engaged in Technical Research & Equipment Development in the fields of Communication & Specialized communication. Specialized Fields comprises of broadly as Signal processing, RF Power, Antennas, Software & Computer Application, Wired & Wireless Communication, Chip Board Electronics, Solar Panel & Systems, Solar Applications & Configuration, etc. Our R & D Center is rated as a 1st Class Center in China, with considerations towards Green Energy, Environment Protection coupled with most Advanced Scientific Equipments to assist our Research Facilities, Design & Development Methods. Our Testing Equipments & Machinery are from high quality manufacturers from around the world and also from within China. We also have the largest setup for the lowest frequency Anechoic Chamber in China. Our Computer Aided Design Center (CAD), Simulation Laboratory, Testing Centre, Precision Component Manufacturing Center are considered the best in the industry.
New Energy Sector is the primary division of No. 36 Research Institute, which specializes in Design, Development, Manufacture, and Distribution of High Quality Solar Modules & Solar Application System and offers Technology Services. The products include High Efficiency Mono Crystalline & Polycrystalline Solar Panel ranging between 10 Watts & 300 Watts; Solar Power Generation Systems for Home & Commercial establishments for use with different appliances; Solar Off Network / Grid connected Power Generation Systems and customized products tailor made to specific requirements. The New Energy Sector is equiped with advanced testing and manufacturing devices to cater with and excellent product line. We are capable of conducting a thorough Analysis & Evaluation of Raw Materials, Performance & Finished Products. Our products have been Certified by bodies such as: TUV, CGC, and CE.
