Our company supply high quality: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter. And high efficiency: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter And low price: Grid tie inverter, Grid-connected inverter, Power inverter, On grid inverter, Solar inverter, Solar on grid inverter, Wind on grid inverter, PV inverter, Hybrid inverter.
1. Using the fifth generation lntelligent power module from mitsubishi, improve the system efficiency
2. High conversion efficiency
3. Advanced technology for maximum power point tracking (MPPT)
4. MPPT efficiency (>97%)
5. Wide input voltage range
6. High reliability due to perfect protection function
7. Powerful communication interfaces
8. Easy operation and installation
9. Easy-to-set multilingual LCD display
10. Adjustable protection/operation parameters.
Have passed CE, ISO9001, G83, G59, AS3100, AS4777 certificates
|
Model |

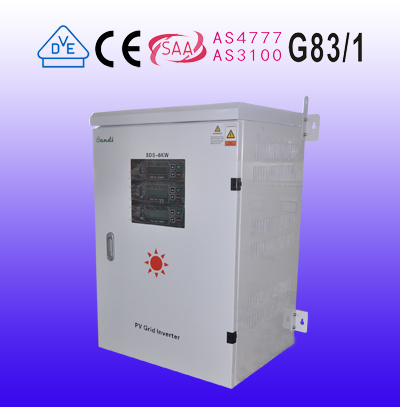

SDS- 8000W |
DC Input |
MPPT Voltage Range |
DC100~500V |
Rated DC Voltage |
200-400V |
Control System |
MPPT |
AC Output |
Output Power |
8000W |
Rate voltage range |
AC220± 13V (Grid voltage) |
Normal Grid Frequency |
50/60Hz (Grid frequency) |
Phases |
1 phase 2 wire |
Power Factor |
> 0.95 |
Current THD |
At rated power and in the sine wave < 5% |
Control System |
PWM |
Anti-islanding |
≤ 0.5 sec |
Output Overload |
100% |
Max. Efficiency |
97% |
Euro Efficiency |
96.4% |
Structure |
Protection Class |
IP65 |
Cooling system |
Natural cooling |
Noise |
< 50dB |
Data Interfaces |
External RS232C/RS485 |
Web Module( Option) |
RS232C to TCP/IP |
Display |
LCD |
Dimensions(W*H*D) |
410*555*745mm |
Weight |
63kgs |
Protection |
Inverter |
Input overvoltage, output short circuit, overheat, output DC component. |
Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
Operation temperature |
-10C~40C (50C) |
Stored temperature |
-20C~65C |
Relative humidity |
0~100% (Do not wet with dew) |
Yueqing Sandi Electric Co., Ltd specialized in the new energy source and electrical source scientific research, development, manufacture and service had surpasses for 10 years of electrical source field; Which recognized by widely customers according to entirely varieties, high quality and service first. At present, the researched products by our company basically contain the best product at home and abroad, which delegated the top level of electrical source manufacture all over the world. The main products are: PV Grid-Connected Inverter, Solar Inverter, PV Solar Pumping Inverter, Water Pumping Inverter, Grid Tie Inverter, On Grid Inverter, Solar pumping inverter, Wind Turbine Controller, Solar Charge Controller, Pure Sine Wave Inverter, Off-Grid Inverter, power Inverter. The products of company are widely applied in fire fighting, construction, industry, new energy source, civilian use, finance, business tax, electric power, medical treatment, aviation, automatically control system of war industry and national heavy engineering project.
SANDI Electric Company insist on technology as forerunner, keep long-term, good research cooperation with all universities; Fetch in and absorb international advanced technology, built strictly quality control system.
We will take the work objective of "unremitting exploration, endeavor and innovation, honesty and dedication, perfect and practicality" and quality guideline of "criterion management, intensive manufacture, quality first, service with all hearts". Seek excellence, value innovation!
We will ceaselessly struggle and create refulgence with you together.
