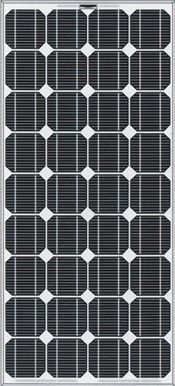

Product Name: 80W Solar Panels:
Model Number: BR-M80W (4*9=36 Cells)
Standard: TUV, IEC61215, CE & EN
Place of Origin: China
Specification: 125*125 Monocrystalline silicon solar cells
| Electrical characteristics: |
| Open circuit voltage(V): | 21.50V |
| Short circuit current(A): | 5.11A |
| Max. power voltage(V): | 17.5V |
| Max. power current(A): | 4.57A |
| Cell efficiency(%): | ≥16.4% |
| Module efficiency(%): | ≥13.7% |
| FF(%): | 70-72% |
| Conditions (STD): |
| Irradiance: | 1000W/M2 |
| Temperature: | 25°C |
| Absolute maximum rating: |
| Operating temperature: | -40°C to +80°C |
| Storage temperature: | -40°C to +80°C |
| Packing: | 2 PCS/CTN |
Max. System voltage: 715V DC
80W Solar Panels Power tolerance: 0%-3%
Surface max. Load capacity: 70m/S(200KG/sq. M)
80W Solar Panels Weight: 8.5KG
80W Solar Panels Dimensions: 830*808*30mm
More information for 80W Solar Panel or other power solar Panels, Mail us please.
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
