Home Generator Products 800W Permanent Magnet Motor Wind Generator

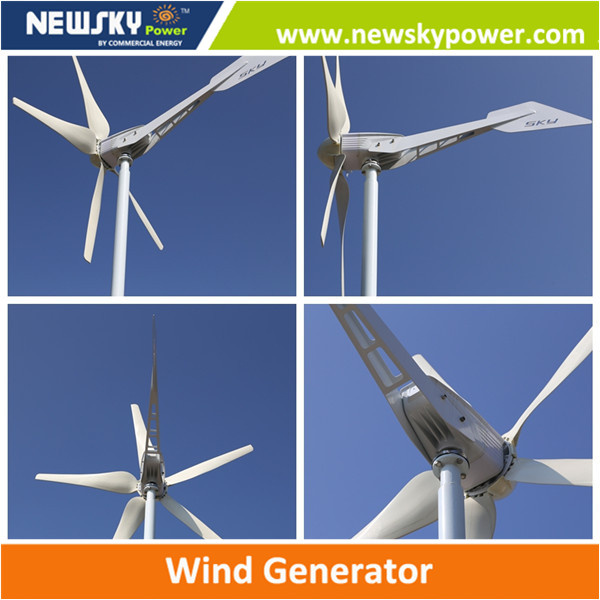

800W Permanent Magnet Motor Wind Generator

800W Permanent Magnet Motor Wind Generator
Price: US $ 200/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

                              800w permanent magnet motor wind generator


Features:
1.Bearing from "SKF" Sweden.
2.Stainless steel screw bolt from "THE".
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.

Specification:

Model
Mini300W-3Mini300W-5
Rated power300 watts at 11 m/s
Max Capacity350watts
Voltage12, 24 VDC
Blades3 Pcs Nylon Fiber5 Pcs Nylon Fiber
Start-Up Wind Speed2.0 ( m/s)1.5 ( m/s)
Cut-In Wind Speed2.5(m/s)2.0(m.s)
Rotor Diameter1.16 m1.21m
Weight6.2 kg7.1 kg
Shipping Dimensions790x 430x 220 mm (8 kg)790x 430x 220 mm ( 9.3 kg)
Mount1.9 inch (48 mm) OD pipe
Turbine Controller (Optional)Maximum Power Point Tracking, MPPT
BodyCast aluminum
Overspeed ProtectionElectronic torque control
Working temperature-20ºC~ 120ºC
CertificateISO9001:2008 ,CE, RoHS
Survival Wind Speed50 m/s
Warranty3 year limited warranty
ModelMAX 400WMAX 600WMAX 800WMAX 1200W
Rated power400W600W800W1200W
Max power450W750W950W1300W
Rated voltage12/24 VDC24 VDC48 VDC48VDC/110VDC
Rated current33A/16.7A25A16.7A25A/10.9A
Rated Rpm650
Blades5 Pcs Nylon Fiber glass
Rated wind speed11m/s12m/s
Start-Up Wind Speed1.5 ( m/s)1.5 ( m/s)1.5 ( m/s)2.0 ( m/s)
Cut-In Wind Speed2.0 (m/s)2.0 (m/s)2.0 (m/s)2.5 (m/s)
Rotor Diameter1.7 m1.7 m1.8 m2.0 m
N.W23KG28.5KG30KG36KG
G.W28KG33KG35.5KG41KG
Shipping Dimensions1690*540*290mm1690*540*290mm1690*540*290mm1890*540*290mm
MountFlange connection
Turbine ControllerMPPT wind solar hybrid controller
BodyCast aluminum
Overspeed ProtectionElectromagnetic & blade aerodynamic braking
Working temperature-20ºC~ 120ºC
CertificateISO9001:2008 ,CE, Rohs
Survival Wind Speed50 m/s
Warranty3 year limited warranty


FAQ:
1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
It just needs a steel pipe and easy to configure.

 2,Does it work on foreland?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment.

3,Do you provide the spare parts?
Yes,our company could provide the spare parts such as blades and other components in your second order .Thanks.

4,Is it convinient for you if we visit your factory ?
Welcome to come to China and visit our company, please kindly inform us before your visit, thanks.


Our  Company information:
Our Company:
COMMERCIAL ENERGY GROUP LIMITED is a an energy-saving technology pioneer company, engaged in develop and apply wind power generator and solar system. Located in the QINGDAO Development Zone nearby Qingdao port, the

company enjoys an excellent traffic convenience.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.

Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of "credit,innovation,hard working and social responsibility".

Contact Information:
Smile
Tel:+86-532-86943160
Mob:+86-15854292836
Prod Model: 300W 400W 600W 800W 1200W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: 800W Permanent Magnet Motor Wind Generator
Blades: 5 PCS Nylon Fiber Glass
Body: Cast Aluminum
Mount: Flange Connection
Certificate: ISO9001:2008 ,CE, RoHS
Warranty: 3 Year Limited Warranty
Overspeed Protection: Electromagnetic & Blade Aerodynamic Braking
Rotating Shaft: Horizontal
Stress Way Of Blade: Resistance
Number Of Blade: Multiple-Blade
Phase: Three Phases
Power: 300W to 1200W
Qingdao commercial energy electronics Co., Ltd is subsidiary corporation of Commercial energy group limited, We are manufacturer of solar and wind products over 7years with well-equipped testing facilities and strong technical force. Our main products are all in one solar street light, MPPT solar charge controller, Phocos solar charge controller, solar refrigerator & freezer, wind turbine.

"NEWSKY POWER" is our brand which is one of the famous trademarks of China. With world advanced quality and technology, the products enjoy high reputation and wide influence in the domestic and overseas markets. It occupies most of the consumption market with its high product quality and sincere service

Thanks to its strong professional technical strength, strict quality management system, measuring and inspection system, standardization system, informatization system and modernized scientific management means, it exerts the potential advantages of sustainable development and undisputedly ranks the leading position in the same industry, becoming an acknowledged leading enterprise and excellent representative in China renewable industry.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
