features

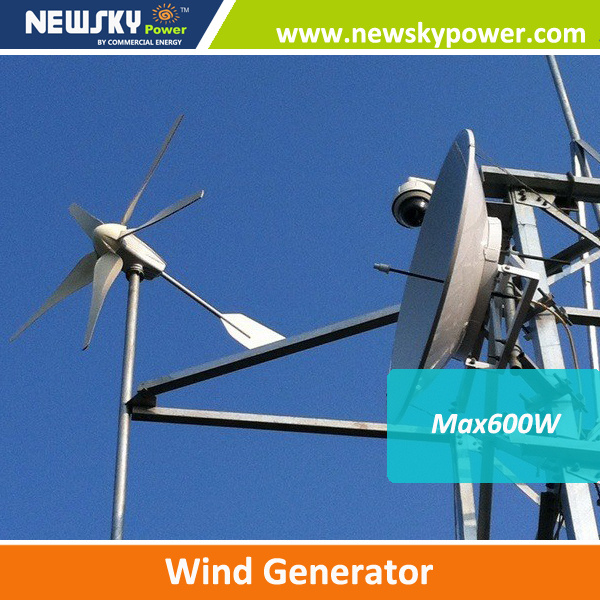

800w 1000W 1kw 1200W Wind generator for House Use
Bearing from "SKF" Sweden.
Stainless steel screw bolt from "THE".
Primary aluminum housing, not secondary aluminum.
Low start-up wind speed
High-efficient Generator
Perfect Wind Wheel System
Unique Design Of The Rudder
Damp-proof, sand-proof, Anti-rust, Anticorrosion
Easy installation, Free of maintenance, Long lifespan
over 15years.
800w 1000W 1kw 1200W Wind generator for House Use
specification
Product introduction
Ø Stainless steel screw bolt from "THE".
Ø Primary aluminum housing, not secondary aluminum.
Ø Low start-up wind speed
Low wind speed series wind turbines generate more than 60% effective power than the same rotor diameter wind turbine annually.
Ø High-efficient Generator
Three-phase permanent magnet synchronous wind turbine, more than 10% of the efficiency of ultra-GB, starting resistance, only be 1/3 of the GB limit, motor insulation rating class H insulation.
Ø Innovative Noise Reduction Technology
Start and product electricity at the 1.5m/s, noise only at 40db at 13m/s.
Ø Perfect Wind Wheel System
The wind turbine wheel are made of a low temperature resistance, aging high strength compound material, can cope with a variety of complex wind conditions, charge wind energy into electrical energy efficiently and sustainably..
Ø Unique Design Of The Rudder
Wind turbine rudders are ale to respond to the wind speed and wind direction flexibly, enhancing the efficiency of power generation.
800w 1000W 1kw 1200W Wind generator for House Use
Model | MAX 400W | MAX 600W | MAX 800W | MAX 1200W |
Rated power | 400W | 600W | 800W | 1200W |
Max power | 450W | 750W | 950W | 1300W |
Rated voltage | 12/24 VDC | 24 VDC | 48 VDC | 48VDC/110VDC |
Rated current | 33A/16.7A | 25A | 16.7A | 25A/10.9A |
Rated Rpm | 650 |
Blades | 5 Pcs Nylon Fiber glass |
Rated wind speed | 11m/s | 12m/s |
Start-Up Wind Speed | 1.5 ( m/s) | 1.5 ( m/s) | 1.5 ( m/s) | 2.0 ( m/s) |
Cut-In Wind Speed | 2.0 (m/s) | 2.0 (m/s) | 2.0 (m/s) | 2.5 (m/s) |
Rotor Diameter | 1.7 m | 1.7 m | 1.8 m | 2.0 m |
N.W | 23KG | 28.5KG | 30KG | 36KG |
G.W | 28KG | 33KG | 35.5KG | 41KG |
Shipping Dimensions | 1690*540*290mm | 1690*540*290mm | 1690*540*290mm | 1890*540*290mm |
Mount | Flange connection |
Turbine Controller | MPPT wind solar hybrid controller |
Body | Cast aluminum |
Overspeed Protection | Electromagnetic & blade aerodynamic braking |
Working temperature | -20ºC~ 120ºC |
Certificate | ISO9001:2008 ,CE, Rohs |
Survival Wind Speed | 50 m/s |
Warranty | 3 year limited warranty |
800w 1000W 1kw 1200W Wind generator for House Use
Warranty
3 years warranty time.
Shipment :
1. By EMS,DHL,FEDEX,TNT,UPS Or other expresses ( door to door)
2. By Air ,By sea
