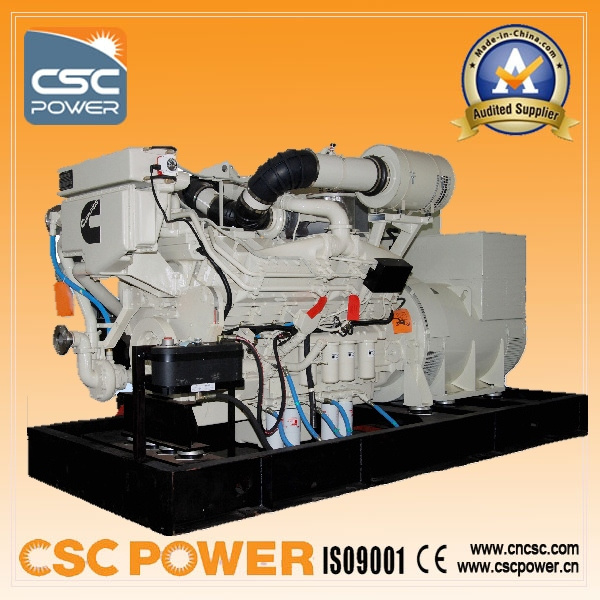

8% Marine Diesel Generators Set with Cummins Engine

Name: 8% Marine Diesel Generators Set with Cummins Engine
Brand: aboutgenerator.com
SKU: 712112395
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 10000-50000/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Fuzhou Century Sea Co., Ltd.

Showroom Product Company Profile

We CSCPower, manufacturer specializing in generators,
Are qualified and hoping to supply you with different solutions (quotations+specifications) for generators according to your specific requirements.
Hope more about our generators could be known to you.

About our Cummins diesel engine generator sets:
Cummins engines: From Cummins China Dongfeng / Chongqing, enjoying official global warranty.
Alternator: Three brands options, original Stamford / Leroy Somer / China Alternator.
Control panel: Four brands options, Smartgen / ComAp / Deepsea / Harsen, Smartgen is chosen as standard supply scopy.

Supply Scope:
1. Brand new diesel engine (already mounted on the genset base)
2. Brand new alternator (already mounted on the genset base)
Ratings: 220/380V-adjustable, 3P4W, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
3. Radiator with engine driven fan (already mounted on the genset base)
4. Auto start control panel (already mounted on the genset base)
5. MCCB mounted (already mounted on the genset base)
6.12/24V DC Electric start system with lead-acid type starting batteries
7. Anti-vibration mountings (already mounted on the genset base)
8. With fuel tank for 6-8 hours running.
9. Industrial silencers with flexible connects and elbow (already mounted on the genset base)
10. Test report of generator, Set of drawings and O&M manuals
11. A set of digital automation controllers
12. A high acoustic canopy (for silent type only)
13. Standard tools kit

Terms:
Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier.
Delivery / Manufuacuring time: 1-4 weeks after receiving down payment

Quality Standards:
Our diesel generating sets meet the following standards: GJB1488, GB/T2820, GB1105, GB/T12786-91, ISO8525, ISO8525-3-5-6. ISO8528
Gensets Factory Testing:
Each our generating sets must get through 1 hour load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch, all protective devices, control functions are simulated and it's system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

CSCPOWER Marine Diesel Generator Sets-50HZ/1500RPM, 400/230V, 3P4W Cummins+Stamford
Genset Model	Power in KW		Power in KVA		Diesel Engine Model	No. & Type	Bore & Stroke (mm)	Comp. Ratio	Displacement (L)	Start Mode	Insulation Grade	Lub Capacity (L)	Feul Consumption (L/H)	Weight (KG)	Dimension L× W× H (MM 3 )
Genset Model	Prime	Standby	Prime	Standby	Diesel Engine Model	No. & Type	Bore & Stroke (mm)	Comp. Ratio	Displacement (L)	Start Mode	Insulation Grade	Lub Capacity (L)	Feul Consumption (L/H)	Weight (KG)	Dimension L× W× H (MM 3 )
CSCCM55	40	44	50	55	4BTA3.9-GM47	4 Cylender Straight	102× 120	16.5: 1	3.9	24DCV	H	9	10	1130	2100× 810× 1230
CSCCM110	80	88	100	110	6BT5.9-GM100	6 Cylender Straight	102× 120	17.3: 1	5.9	24DCV	H	16.3	20	1360	2380× 830× 1230
CSCCM138	100	110	125	138	6BTAA5.9-GM115		102× 120	17.3: 1	5.9	24DCV	H	16.3	24	1360	2380× 830× 1230
CSCCM193	140	154	175	193	6CTA8.3-GM155		114× 135	17.3: 1	8.3	24DCV	H	19	33	1380	2500× 830× 1230
CSCCM248	180	198	225	248	6LTAA8.9-GM200		114× 135	16.6: 1	8.9	24DCV	H	27.6	42	1500	2500× 830× 1330
CSCCM206	150	165	188	206	NT855-D(M)		140× 152	14.5: 1	14	24V/Air	H	38.6	38	2550	2650× 1000× 1625
CSCCM248	180	198	225	248	NT855-D(M)		140× 153	14.5: 1	14	24V/Air	H	38.6	45	2550	2650× 1000× 1625
CSCCM275	200	220	250	275	NTA855-D(M)		140× 154	14.5: 1	14	24V/Air	H	38.6	50	2850	2750× 1000× 1675
CSCCM344	250	275	313	344	NTA855-D(M)		140× 155	14.5: 1	14	24V/Air	H	38.6	63	2850	2750× 1000× 1675
CSCCM385	280	308	350	385	NTA855-D(M)		140× 152	14.5: 1	14	24V/Air	H	38.6	70	2850	2750× 1000× 1675

CSCCM413	300	330	375	413	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	71	3230	3050× 1000× 1725
CSCCM481	350	385	438	481	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	81	3230	3050× 1000× 1725
CSCCM550	400	440	500	550	KTA19-D(M)	6 Cylender Straight	159× 159	13.9: 1	19	24V/Air	H	50	93	3360	3200× 1000× 1725
CSCCM688	500	550	625	688	KT38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	121	8100	4000× 1700× 1725
CSCCM825	600	660	750	825	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	146	8100	4000× 1700× 1725
CSCCM963	700	770	875	963	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	170	8300	4100× 1700× 1725
CSCCM1100	800	880	1000	1100	KTA38-D(M)	12V	159× 159	15.5: 1	38	12V/Air	H	135	194	8600	4100× 1700× 1725
CSCCM110	80	88	100	110	6BT5.9-D(M)	6 Cylender Straight	102× 120	16.5: 1	5.9	24V/Air/Spring	H	16.3	19	1360	2380× 810× 1200
CSCCM193	140	154	175	193	6CTA8.3-D(M)	6 Cylender Straight	114× 135	16.8: 1	8.3	24V/Air/Spring	H	25	34	1680	2500× 850× 1230
CSCCM1375	1000	1100	1250	1375	KTA50-D(M1)	16V	159× 159	14.5: 1	50	24V/Air	H	164.7	217	15360	4500× 1700× 1725
CSCCM1513	1100	1210	1375	1513	KTA50-D(M2)	16V	159× 159	14.5: 1	50	24V/Air	H	164.7	257	15360	4500× 1700× 1725
CSCCM2063	1500	1650	1875	2063	QSK60-D(M)	16V	159× 190	14.5: 1	60	24V/Air	H	416.4	345	17630	5000× 1760× 1825
CSCCM124	90	99	113	124	6BT5.9-D(M)	6 Cylender Straight	102× 120	16.5: 1	5.9	24V/Air/Spring	H	16.3	21	1360	2380× 810× 1200
CSCCM220	160	176	200	220	6CTA8.3-D(M)	6 Cylender Straight	114× 135	16.8: 1	8.3	24V/Air/Spring	H	25	39	1680	2500× 850× 1230
CSCCM1650	1200	1320	1500	1650	KTA50-D(M1)	16V	159× 159	14.5: 1	50	24V/Air	H	164.7	260	15360	4500× 1700× 1725
CSCCM1788	1300	1430	1625	1788	KTA50-D(M2)	16V	159× 159	14.5: 1	50	24V/Air	H	164.7	304	15360	4500× 1700× 1725
CSCCM2509	1825	2008	2281	2509	QSK60-D(M)	16V	159× 190	14.5: 1	60	24V/Air	H	416.4	420	17630	5000× 1700× 1825
Product Manufacture Standards: 1. The complete gensets design, production and service accord with ISO9001standard. 2. The product performance accords with GB2820 and GB12786 standard (same as ISO8528).
Certificates: BV and CCS marine class society, ISO9001-2000 ABS, BV and CCS etc.
4 Sets of Advanced Product Test Equipments from UK: 1. PT Pump 2. inspection and test for injector 3. Gearbox 4. Water and electricity power test equipment for generator. It is able to test four gensets (each under 1000KW) at the same time.
Generator Sets Supply: a. Marine classification society certificate b. Genset including public foundation c. Appurtenance and tools delivered by subconstractors d. Spare parts of the gensets (according the ordering protocol signed by parties) e. Genset quality certificate f. Genset/Diesel engine/Generator/Turbocharger operation and maintenance instruction g. Genset/Diesel engine/Generator outline and installation drawings h. Generator excitation system dragram i. Genset operation and maintenance records j. Genset attached tools list k. Package list l. Spare parts list

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine Brand:	Cummins China Dongfeng / Chongqing
Alternator Brands:	Stamford / Leroy Somer / China Alternator
Control Panel:	Smartgen / Comap / Deepsea / Harsen
Feul Tank Capacity:	Genset 6-10 Hours Continuous Running
Global Warranty:	12 Months / 1000 Running Hours
Genset Types:	Open Frame / Silent Type / Trailer / Auto Station
Certificates:	CE, ISO, Soncap
Options For Daily Operation:	ATS, ABB Breaker, Trailer, Parelleling System, etc
Synchronization System:	Synchronization Cabinet with ATS
Unique Advantage:	Cscpower Supply Gensets to China Army
Cooling Method:	Water Cooling
Stroke:	Four Stroke
Installation Method:	Fixed
Type:	Basic Diesel Generator
Output Type:	AC Three Phase

Fuzhou Century Sea Co., Ltd is a global leading manufacturer of diesel generator sets, alternator and transformer. We are located in Fuzhou, near fuzhou sea port and Fuzhou airport.
We supply diesel generators set, alternator, light tower, trailer genset, marine generators and transformer. The power is range from 10kVA to 3000kVA. We can provide diesel generator with cummins, Duetz, Doosan Daewoo, China egine with stamford, Leory somer alternator, etc. We also manufacture alterantor and medium frequency inverter by ourself. Besides, we have ability to customize gensets according to customers' special demands.

Dedicated to strict quality control and thoughtful customer service, our generator sets have been exported to Europe, South America, Africa, etc. We'd like to join hands with friends from all over the world in different domains on the basis of equality and mutual benefits. With principle of "credit today is future tomorrow", we are looking for agents and talents to join with us and create a great future.

Why to choose CSCPOWER?
1. Army quality, reasonable price
2. Quick delivery time
3. Excellent pre-sale and after sale serice
4. Strong technical support
