Home Generator Products Cscpower Cummins Marine Diesel Generator Set 50-1000kVA (6BT5.9-D(M))

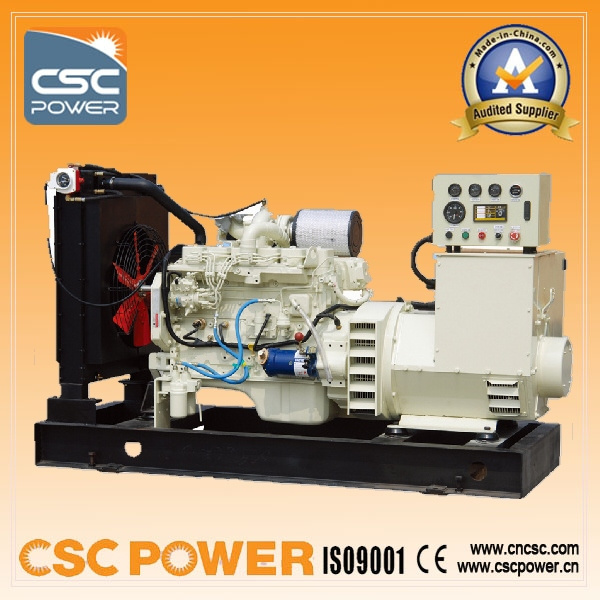

Cscpower Cummins Marine Diesel Generator Set 50-1000kVA (6BT5.9-D(M))

Cscpower Cummins Marine Diesel Generator Set 50-1000kVA (6BT5.9-D(M))
Price: US $ 5000-25000/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
We CSCPower, manufacturer specializing in generators,
Are qualified and hoping to supply you with different solutions (quotations+specifications) for generators according to your specific requirements.
Hope more about our generators could be known to you.
5% Off! ! CSCPower Cummins Marine Diesel Generator Set 50-1000kVA
Introduction:
Dongfeng Cummins series of marine diesel generator sets select B, C and L series engines, Chongqing Cummins series of marine diesel generator sets select N. K series engines, of Sino-US joint venture with Stamford and other world famous joint venture power generation alternator to meet the IMO TIER 2 emission standards, the economy, power, reliability, durability and environmental security of the product are well praised by the majority of shipowners. The product can be used as marine main generator, parking generator and emergency generator and enjoy the Cummins world global warranty.

About our Cummins diesel engine generator sets:
Cummins engines: From Cummins China Dongfeng / Chongqing, enjoying official global warranty.
Alternator: Stamford

Generator Sets Supply Scope
A. Marine classification society certificate
B. Genset including public foundation
C. Appurtenance and tools delivered by subconstractors
D. Spare parts of the gensets (according the ordering protocol signed by parties)
E. Genset quality certificate
F. Genset/Diesel engine/Generator/Turbocharger operation and maintenance instruction
G. Genset/Diesel engine/Generator outline and installation drawings
H. Generator excitation system dragram
I. Genset operation and maintenance records
J. Genset attached tools list
K. Package list
L. Spare parts list

Product Manufacture Standards
1. The complete gensets design, production and service accord with ISO9001standard.
2. The product performance accords with GB2820 and GB12786 standard (same as ISO8528).
Certificates:
BV and CCS marine class society, ISO9001-2000 ABS, BV and CCS etc.

Advanced Product Test Equipments from UK
1. PT Pump 2. Inspection and test for injector 3. Gearbox
4. Water and electricity power test equipment for generator. It is able to test four gensets (each under 1000KW) at the same time.
CSCPOWER  Marine  Diesel  Generator  Sets-50HZ/1500RPM,   3P4W
Cummins+Stamford
Genset
Model
Power  in  KW Power  in  KVA Diesel  Engine  Model No.   &   Type Bore
&   Stroke
(mm)
Comp.
Ratio
Displacement
(L)
Start  Mode Insulation
Grade
Lub  Capacity
(L)
Feul
Consumption
(L/H)
Weight
(KG)
Dimension
L*W*H
(MM3)
Prime Standby Prime Standby
CSCCM55 40  44  50  55  4BTA3.9-GM47 4  Cylender  Straight 102× 120 16.5: 1 3.9 24DCV H 9 10  1130 2100*810*1230
CSCCM110 80  88  100  110  6BT5.9-GM100 6  Cylender  Straight 102× 120 17.3: 1 5.9 24DCV H 16.3 20  1360 2380*830*1230
CSCCM138 100  110  125  138  6BTAA5.9-GM115 102× 120 17.3: 1 5.9 24DCV H 16.3 24  1360 2380*830*1230
CSCCM193 140  154  175  193  6CTA8.3-GM155 114× 135 17.3: 1 8.3 24DCV H 19 33  1380 2500*830*1230
CSCCM248 180  198  225  248  6LTAA8.9-GM200 114× 135 16.6: 1 8.9 24DCV H 27.6 42  1500 2500*830*1330
CSCCM206 150  165  188  206  NT855-D(M) 140× 152 14.5: 1 14 24V/Air H 38.6 38  2550 2650*1000*1625
CSCCM248 180  198  225  248  NT855-D(M) 140× 153 14.5: 1 14 24V/Air H 38.6 45  2550 2650*1000*1625
CSCCM275 200  220  250  275  NTA855-D(M) 140× 154 14.5: 1 14 24V/Air H 38.6 50  2850 2750*1000*1675
CSCCM344 250  275  313  344  NTA855-D(M) 140× 155 14.5: 1 14 24V/Air H 38.6 63  2850 2750*1000*1675
CSCCM385 280  308  350  385  NTA855-D(M) 140× 152 14.5: 1 14 24V/Air H 38.6 70  2850 2750*1000*1675
CSCCM413 300  330  375  413  KTA19-D(M) 6  Cylender  Straight 159× 159 13.9: 1 19 24V/Air H 50 71  3230 3050*1000*1725
CSCCM481 350  385  438  481  KTA19-D(M) 6  Cylender  Straight 159× 159 13.9: 1 19 24V/Air H 50 81  3230 3050*1000*1725
CSCCM550 400  440  500  550  KTA19-D(M) 6  Cylender  Straight 159× 159 13.9: 1 19 24V/Air H 50 93  3360 3200*1000*1725
CSCCM688 500  550  625  688  KT38-D(M) 12V 159× 159 15.5: 1 38 12V/Air H 135 121  8100 4000*1700*1725
CSCCM825 600  660  750  825  KTA38-D(M) 12V 159× 159 15.5: 1 38 12V/Air H 135 146  8100 4000*1700*1725
CSCCM963 700  770  875  963  KTA38-D(M) 12V 159× 159 15.5: 1 38 12V/Air H 135 170  8300 4100*1700*1725
CSCCM1100 800  880  1000  1100  KTA38-D(M) 12V 159× 159 15.5: 1 38 12V/Air H 135 194  8600 4100*1700*1725
CSCCM110 80  88  100  110  6BT5.9-D(M) 6  Cylender  Straight 102× 120 16.5: 1 5.9 24V/Air/Spring H 16.3 19  1360 2380*810*1200
CSCCM193 140  154  175  193  6CTA8.3-D(M) 6  Cylender  Straight 114× 135 16.8: 1 8.3 24V/Air/Spring H 25 34  1680 2500*850*1230
CSCCM124 90  99  113  124  6BT5.9-D(M) 6  Cylender  Straight 102× 120 16.5: 1 5.9 24V/Air/Spring H 16.3 21  1360 2380*810*1200
CSCCM220 160  176  200  220  6CTA8.3-D(M) 6  Cylender  Straight 114× 135 16.8: 1 8.3 24V/Air/Spring H 25 39  1680 2500*850*1230
Terms:
Global Warranty: 12 months after installation or 1000hrs running, depend on which come to earlier.
Payment term: T/T, 30% deposit, 70% paid before delivery out of factory
Delivery/Manufuacuring time: 15-40 days after down payment

Prod Model: 6BT5.9-D(M)
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Cummins China Dongfeng / Chongqing
Alternator: Stamford
Marine Class Society Certificate: CCS, ABS, Gl, etc
Application: Fishing Boat, Marine Ship, Big Ship, etc
Factory Certificates: ISO9001-2000 BV CCS Marine Class Society
Production Equipment: UK PT Pumps, Inspection and Test Equipment for Inj
Global Warranty: 12 Months or 1500hr
OEM: Accept
Delivery Time: 45 Days After Receiving Down Payment
Options: Control Panel, Battery, Base Frame Fuel Tank
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Output Type: AC Three Phase
Fuzhou Century Sea Co., Ltd is a global leading manufacturer of diesel generator sets, alternator and transformer. We are located in Fuzhou, near fuzhou sea port and Fuzhou airport.
We supply diesel generators set, alternator, light tower, trailer genset, marine generators and transformer. The power is range from 10kVA to 3000kVA. We can provide diesel generator with cummins, Duetz, Doosan Daewoo, China egine with stamford, Leory somer alternator, etc. We also manufacture alterantor and medium frequency inverter by ourself. Besides, we have ability to customize gensets according to customers' special demands.

Dedicated to strict quality control and thoughtful customer service, our generator sets have been exported to Europe, South America, Africa, etc. We'd like to join hands with friends from all over the world in different domains on the basis of equality and mutual benefits. With principle of "credit today is future tomorrow", we are looking for agents and talents to join with us and create a great future.

Why to choose CSCPOWER?
1. Army quality, reasonable price
2. Quick delivery time
3. Excellent pre-sale and after sale serice
4. Strong technical support
