8.5-23kw Sine Wave Alternators (QFB270B)
| Price: |
Negotiable |
| Min Order: |
1 |
| Pay Type: |
T/T |
1, Portable emergency power supply when working with gasoline generator;
2, Monophase(QFB) or three phase(QFBS) AC power output;
3, Special design, keeps the THDu less than 5%;
4, AVR (automatic voltage regulator) makes the stable voltage output (brush excitation);
5, High quality AC power output.
Type
| Frequency
& r.p.m
| Rated Power
(KW)
| Max. Power(KW)

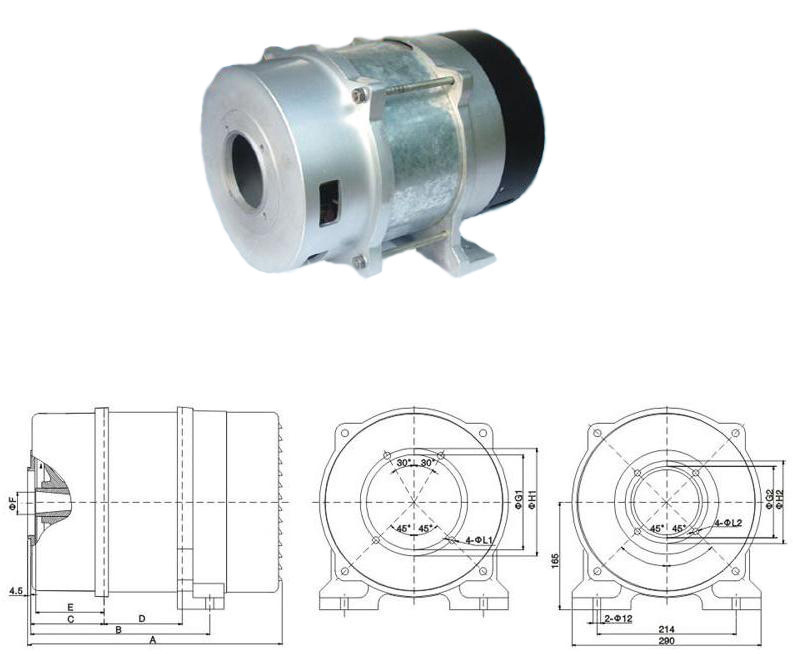

| Overall & Mounting Dimensions
| Matching Engine Type &
Taper parameters
|
|
A
| B
| C
| D
| E
| ΦF
| ΦG
| ΦH
| ΦL
|
|
A1
| A2
| G1
| G2
| H1
| H2
| L1
| L2
|
|
E1
| E2
|
|
QFB270B-8.5
QFBS270B-8.5
| 50Hz/3000r.p.m
| 8.5
| 9.5
| 390.5
| 386
| 275
| 113
| 120
| 105
| 101
| 35
| 146
| 110
| 165.1
| 127
| 10.5
| 9.5
|
Honda GX620 Type engine 3:16
|
|
60Hz/3600r.p.m
| 9.5
| 10.5
|
|
QFB270B-10.5
QFBS270B-10.5
| 50Hz/3000r.p.m
| 10.5
| 11.5
| 400.5
| 396
| 285
| 130
|
|
60Hz/3600r.p.m
| 12
| 13.5
|
|
QFB270B-15
QFBS270B-15
| 50Hz/3000r.p.m
| 15
| 16.5
| 410.5
| 406
| 295
| 140
|
|
60Hz/3600r.p.m
| 18
| 20
|
|
QFB270B-20
QFBS270B-20
| 50Hz/3000r.p.m
| 20
| 22
| 425.5
| 421.5
| 330
| 175
|
|
60Hz/3600r.p.m
| 23
| 25
|
|
Insulation Class
| F (T≤105K) & H (T≤125K)
|
|
Power Factor (cosφ)
| Single phase cosφ=1 / Three-phase cosφ=0.8
|
|
Rated Voltage (V)
| 110115120220230240110/220115/230120/240230/400
|
|
DC Output
| 12V / 8.3A
|
|
Excitation
| Brush-excitation + AVR
|
|
Note
| THDu ≤ 5%
|
|
Parts list
| Stator + Rotor (Include Ball Bearing & Radiator Fan) + Protect Plate + Electric Brush+ AVR+ End Cover + Head Cover +Fix Frame +Other Parts
|
