3-7kw QFD/QFDW190 Monophase/QFS190 Three-phase Series Alternator
| Price: |
Negotiable |
| Min Order: |
1 |
| Pay Type: |
T/T |
1, AVR (automatic voltage regulator) makes the stable voltage output (QFD brush excitation);
2, The capacitance compensation makes easy maintenance and reliable operation(QFDWbrushless excitation).
3, Parts list: Stator + Rrotor+ Radiator Fan + Protect Plate + Electric Brush+AVR(or Capacitor)+End Cover+Head Cover+Fix Frame+Other Parts)
Type
| Frequency
| Rated Power
(KW)
| Max. Power
(KW)

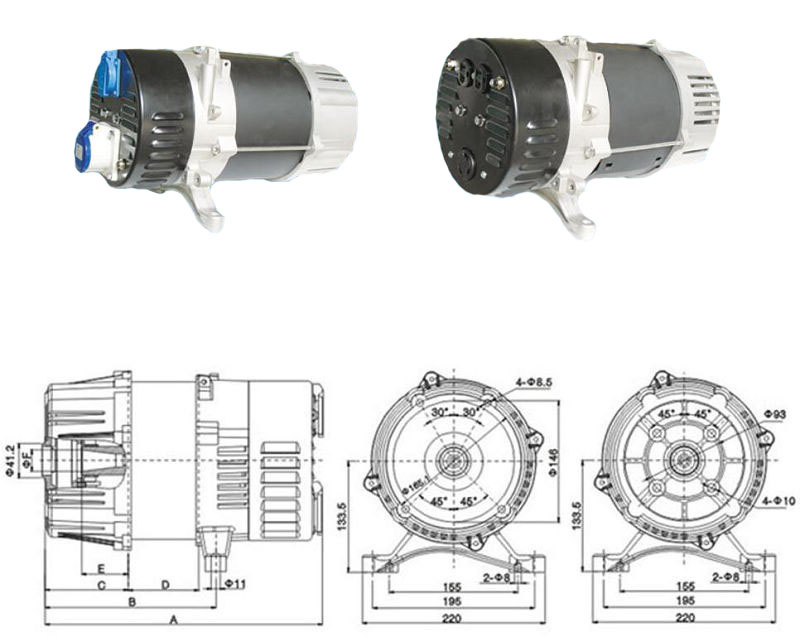

| Overall & Mounting Dimensions
| Matching Engine Type &
Taper parameters
|
A
| B
| C
| D
| E
| ΦF
|
QFD190-3
QFDW190-3
| 50Hz
| 3
| 3.3
| 334
| 205.5
| 100
| 85
| 56
| 26.35
| General engine 1:5
(Data) belong to Honda engine 1:5.33
|
60Hz
| 3.5
| 3.8
|
QFD190-4
| 50Hz
| 4
| 4.5
| 374.5
| 246
| 100
| 125.5
| 56
(56/31.5)
| 26.35
(20.5/24)
|
60Hz
| 4.5
| 5
|
QFD190-5
QFDW190-5
QFS190-5
| 50Hz
| 5
| 5.5
| 389.5
| 261
| 100
| 140.5
| 56
| 26.35
|
60Hz
| 5.5
| 6
|
QFD190-7
QFS190-7
| 50Hz
| 7
| 7.5
| 397
| 268.5
| 100
| 148
| 56
| 26.35
|
60Hz
| 7.5
| 8
|
QFD190-5.5
QFS190-5.5
| 50Hz
| 5.5
| 6
| 389.5
| 261
| 100
| 140.5
| 56/31.5
| 20.5/24
| Honda engine 1:5.33
|
60Hz
| 6
| 6.5
|
QFD190-6.5
QFS190-6.5
| 50Hz
| 6.5
| 7.2
| 397
| 268.5
| 100
| 148
| 56/31.5
| 20.5/24
|
60Hz
| 7
| 7.8
|
Insulation Class
| F (T≤105K) & H (T≤125K)
|
Power Factor (cosφ)
| Single phase cosφ=1 / Three-phase cosφ=0.8
|
Rated Voltage (V)
| 110,115,120,220,230,240,110/220,115/230,120/240,230/400
|
DC Output
| 12V / 8.3A
|
Excitation
| QFD/QFS190 Type: Brush-excitation + AVR
QFDW190 Type : Brushless-excitation + Capacitor
|
Note
| Single phase :THDu ≤ 15% Three-phase: THDu ≤ 10%
|
