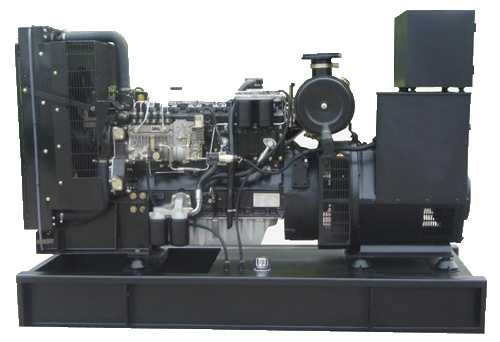

75kw power generator sets
1. Powered by original engine
2. High stability, reliability, durability and long life with a wide range of power output
3. Widely used in the area of cummunication, industry, projects, mining, rescuing, military and so on
|
1. Specification of genset |
|
Gensets model |
KH-75GF |
|
Prime power(KVA) |
93.7 |
|
Rated Voltage(V) |
380/220 |
|
Rated frequency(HZ) |
50 |
|
Rated Speed (rpm) |
1500 |
|
Power Factor(COS) |
0.8(lagging) |
|
Dimensions(mm) (L×W×H) |
2512x735x1545 |
|
Net Weight(kg) |
1180 |
|
2. Specification of diesel engine |
|
Engine brand |
Perkins |
|
Engine model |
1006TG1A |
|
Number of Cylinders |
6 |
|
Cylinder arrangement |
Vertical in-line |
|
Cycle |
Four stroke |
|
Aspiration |
Turbo charged and Water/Air cooling |
|
Combustion system |
Direct injection |
|
Bore×Stroke (mm×mm) |
100x127 |
|
Displacement (Liter) |
5.99 |
|
Compression Ratio |
16.0:1 |
|
Speed Governor |
Mechanical |
|
Cooling System |
Forced Water Cooling Cycle |
|
Total lubrication system capacity (L) |
16.1 |
|
Fuel Consumption at 100% Load (g/kwh) |
21.8 |
|
Starting Method |
DC12V electrical starting |
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
