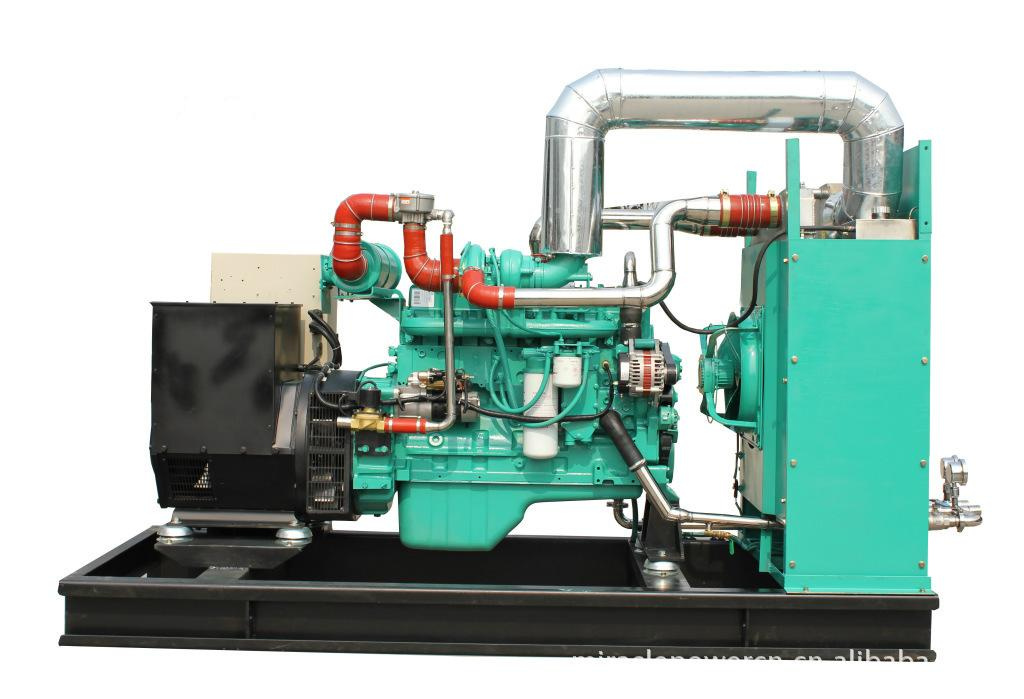

500kw Natural Gas Generator Sets
1. Short lead time
2. Rich experience in large power station project
Model
Item
MC500N
Genset Specifications
Rated Power (kW/kVA)
450 / 562.5
Standby Power
(kW/kVA)
500/625
Rated Voltage (V)
400/230
Frequency (Hz)
50
Rated current (A)
810
Voltage Stabilized Regulation
≤ ± 1.5%
Voltage Instantaneous Regulation
≤ ± 15%
Voltage Recovery Time (S)
≤ 0.5
Voltage Fluctuation Ratio
≤ 1%
Voltage Wave Distortion Ratio
≤ 5%
Frequency Stabilized Regulation
≤ 1%(adjustable)
Frequency Instantaneous Regulation
+/- 9%
Frequency Recovery Time (S)
≤ 13
Frequency Fluctuation Ratio
≤ 1%
Ignition System & Speed Governor
E3 Full Authority, Woodward USA, lean-burn combustion
Generator Insulation Class
H
Noise level dB(A) @ 1 meter
≤ 95
Overall Dimension(mm) (L*W*H)
(for open type)
4, 800(mm)× 2, 060(mm)× 2, 430(mm)
Weight: 7, 500kg
Silent Type
69 dB(A) @ 7 meters or 77 dB(A) @ 1 meter
(20'ft Containerized Canopy, Price is Available on Request)
Our company is maunfacturer of diesel generator, the OEM of cummins engines with certify of CE, ISO9001.
Mainly produce and sale diesel gen-sets, inland diesel gen-sets from 3-3000kVA, marine energent diesel gen-sets from 12-500kw and kinds of imported diesel gen-sets, movable power station, low-noise, multi-PCS connection, remote monitoring, gen-sets with ATS, gas gen-sets etc.
With good quality and low price.
