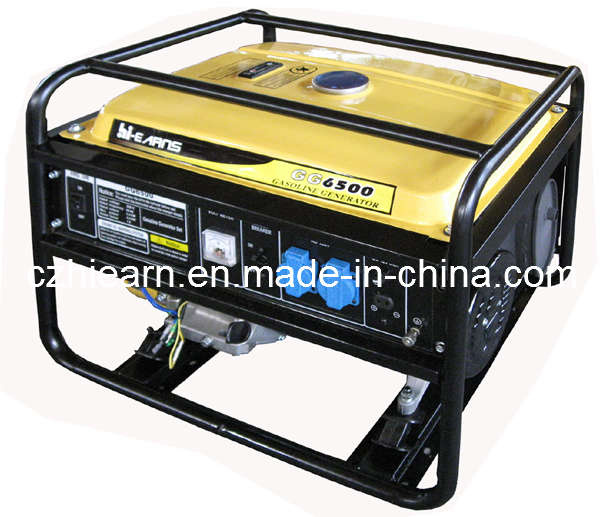

Gasoline Generator (GG6500)
Model: GG6500(E)
Frequency (Hz): 50, 60
Max. Output (kw): 4.0, 4.5
Rated output(kw): 4.5, 5.0
Rated. AC voltage(V): 120, 220, 230, 120/240
Power factor (cos) COSΦ =1
DC output (V): 12V/8.3A
Phase: Single phase
Alternator type: Self-excited, 2-pole, single phase alternator
Starting system: Recoil or Electric
Operating noise level(at 7m): 7, 70, 72
Fuel tank capacity(L): 25
Continues work(hr): 10, 7.5
ENGINE
Model: HR340
Engine type: Four-stroke, air-cooled, OHV gasoline engine, OHV
Bore*stroke (mm): 82x64
Fuel: Unleaded gasoline
Lubricatiom oil volume (l): 1.1
Combustion system: TCI(transistor ignition)
STANDARD FEATURES
Voltmeter: Yes
AC Output Socket: Yes
AC circuit breaker: Yes
Oil warning light: Yes
Oil alert: Yes
OPTIONAL FEATURES
DC circuit breaker: Optional
Oil warning light: Optional
Calculagraph: Optional
Wheel and handle: Optional
Current meter: Optional
Dimension
Dimension(L*W*H) (mm): 680x510x540
Dry weight (kg): 76
20FT: 136
| Model | GG6000E |
| Generator | Frequency (HZ) | 60 |
| AC Output voltage (V) | 220 |
| Rated AC output (kw) | 5.5 |
| Max.AC output (kw) | 6 |
| DC output | 12V/8.3A |
| Engine | Model | HR390 |
| Starting system | Electric |
| Fuel tank capacity (L) | 25 |
| Lubrication oil volume (L) | 1.4 |
| Dimensions | Dimension (L×W×H)(mm) | 680×510×540 |
| Net weight (kg) | 80 |
| 20FT | 136 |
| Picture |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Changzhou Hi-earns Mechanical & Electrical Co., Ltd is established in 2005, which is a high-tech(mechanical&electrical) enterprise, gather "development, production, sales and systematic after-sales services" in one. Our company is certified by ISO9001-2008 QMS, get the EPA approval from U. S. A, CE approval from the European Union, GS approval from Germany and RoHS approval. Our company is one of the most influential enterprise in Eastern China, which is in the field of internal combustion engine.
Our company actively introduce advanced foreign technology and scientific management experience. The company have more than 300 staff, 50 of whom are junior and senior technicists, have 6 advanced automatic production lines. In addition, our company adhere to the brand strategy and international strategy, this greatly improved core competitiveness of us. Our main business includes: Water-cooled diesel generator set, air-cooled diesel engine and generator set, gasoline engine and generator set, water pump, minor agriculture machinery and road machinery equipment. Our company have developed out HR170FB which is turbine type air-cooled diesel engine with the own property right. What's more, this product have gained many certification of practical new-type patent. Our newly developed super silent generator set have got certification of invention patent, and we are the only factory which could produce it. Our company have strong technical force, and perfect after-sales service system. Our products have been sold to many main cities in China, and all over the world including North America, European, South America, Southeast Asia, Middle East, Africa, etc.
"Widely making friends with universal heart, positively returning society with responsible mind", this is the aim of Changzhou Hi-earns Mechanical & Electrical Co., Ltd. In the fierce competition environment, we all Hi-earns staff shoulder to shoulder, insist the faith of "surpassing ourself continuously, developing innovation constantly", and continuously strive for being the first brand of domestic and overseas in mechanical & electrical field, this shows Hi-earns unique enterprise charm and grace, which means "sincerity, diligence, cooperation, devotion". We will continue to build enterprise brand sincerely, gain customers' trust with quality, stand on domestic and overseas market with good price, open the future of Hi-earns with strong ability.
