64kva portable generators with diesel engine Parameter:
Genset Specification:
- Genset Modle: DC64
- Dimension: 2200*800*1350mm
- Weight: 1600kg
- Prime Power: 64kw, 80kva
- Rated current: 115.2A
- Rated Voltage: 400/230V
- Speed: 1500/1800rpm
- Frequency: 50/60Hz
- Output Type: AC Three Phase
- Power factor (Cos Phi): 0.8
- Altitude: ≤ 1000 m
- Base Fuel Tank: Eight hours(Standard)
- Standards: JB/T 1403-1999, GB/T 12501-1990
- Warranty: 1 Year or 1500 running hours
- Engine Specification:
- Engine model: 4135AD
- Type of Governor: Electronic governor
- Type: 4 cyclinder in line
- Bore*Stroke: 135× 150mm
- Compression ratio: 17: 1
- Voltage regulation: ± 0.5%
- Fuel consumption rate: ≤ 205g/kw. H
Alternator Specification:
- Brand: Stamford, Simens, Marathon, Farady at option
- AVR model: R448 V50
- Number of phase: 3
- Overspeed: 2250RPM
- Exciter type: AREP
- Sustained short circuit curren --300% (3 IN): 10s
- Insulation class: H
- protection class IP22
- Total harmonics (TGH/THC): < 3.5 %
- Wave form NEMA = TIF: < 50
- Wave form I. E. C. = THF: < 2%
- Bearing: Single
- Coupling: Direct
Control panel:
- Automatic control panel(AMF), LED display.
- Four protection systems
- Emergency stop
- DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Soundproof/Silent box:
- Excellent ventilation
- Fuel tank mounted on baseframe for 12 Hours working
- Highly Corrosion Resistant construction
- Excellent Access for Maintenance
- Security and Safety
- 1m<80DBA / 7m<70DBA
|
|
|
|
|
|
|
|
|
|
|

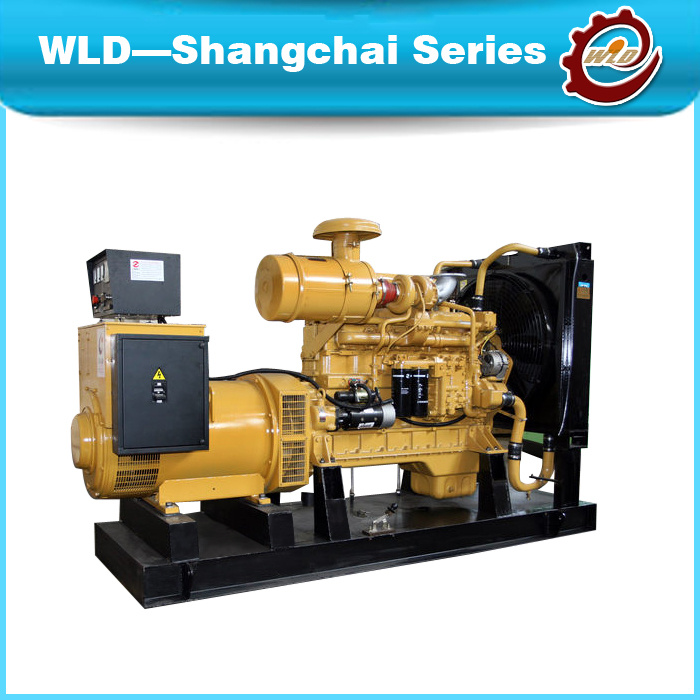

Shcngchai diesel generator Series Parameters |
Genset model |
Standby power |
Prime power |
Fuel cons. 100% (g/kw.h) |
Engine model |
Cyl. |
Bore/ Stroke |
Dimension |
Weight |
KW |
KVA |
KW |
KVA |
mm |
LxWxH(mm) |
kg |
DS36 |
29 |
36 |
26 |
33 |
≤241 |
495AD |
4 |
95/115 |
1800x750x1020 |
780 |
DS41 |
33 |
41 |
30 |
38 |
≤241 |
4100BD |
4 |
95/115 |
1800x750x1020 |
850 |
DS70 |
55 |
70 |
50 |
63 |
≤210 |
413D-1 |
4 |
135/140 |
2200x850x1350 |
1500 |
DS80 |
64 |
80 |
70 |
88 |
≤210 |
4135AD |
4 |
135/140 |
2200x850x1350 |
1600 |
DS104A |
83 |
104 |
75 |
94 |
≤200 |
6135D |
6 |
135/140 |
2600x900x1350 |
1720 |
DS104B |
83 |
104 |
75 |
94 |
≤210 |
SC5D122D |
4 |
114/130 |
2225x890x1100 |
1100 |
DS124 |
99 |
124 |
90 |
113 |
≤200 |
SC5D145D |
4 |
114/130 |
2300x890x1050 |
1250 |
DS138 |
110 |
138 |
100 |
125 |
≤210 |
6135AD-3 |
6 |
135/150 |
2600x900x1450 |
1820 |
DS165A |
132 |
165 |
120 |
150 |
≤210 |
D6114ZLD1A |
6 |
114/135 |
2400x800x1600 |
1800 |
DS165B |
132 |
165 |
120 |
150 |
≤195 |
SC8D200D |
6 |
114/135 |
2620x980x1570 |
1360 |
DS206A |
165 |
206 |
150 |
188 |
≤205 |
6135AZD-1 |
6 |
135/150 |
2600x900x1700 |
2150 |
DS206B |
165 |
206 |
150 |
188 |
≤195 |
SC9D245D |
6 |
114/144 |
2620x980x1570 |
1580 |
DS248A |
198 |
248 |
180 |
225 |
≤200 |
G128ZLD |
6 |
135/150 |
2900x1100x1700 |
2180 |
DS248B |
198 |
248 |
180 |
225 |
≤195 |
SC9D280D |
6 |
114/144 |
2860x1140x1850 |
1660 |
DS275 |
220 |
275 |
200 |
250 |
≤200 |
G128ZLD2 |
6 |
135/150 |
2900x1100x1700 |
2230 |
DS303 |
242 |
303 |
220 |
275 |
≤200 |
G128ZLD1 |
6 |
135/150 |
2770x1200x1700 |
2360 |
DS344 |
275 |
344 |
250 |
313 |
≤200 |
G128ZLD11 |
6 |
135/150 |
2850x1200x1700 |
2450 |
DS413 |
330 |
413 |
300 |
375 |
≤210 |
12V135AZD |
12 |
135/150 |
3300x1370x1850 |
3250 |
DS481 |
385 |
481 |
350 |
438 |
≤200 |
12V135AZLD |
12 |
135/150 |
3500x1650x1850 |
3350 |
DS550 |
440 |
550 |
400 |
500 |
≤200 |
12V135BZLD |
12 |
135/155 |
3550x1650x1850 |
3550 |
DS619 |
495 |
619 |
450 |
563 |
≤200 |
12V135BZLD2 |
12 |
135/155 |
3650x1700x2000 |
3760 |
