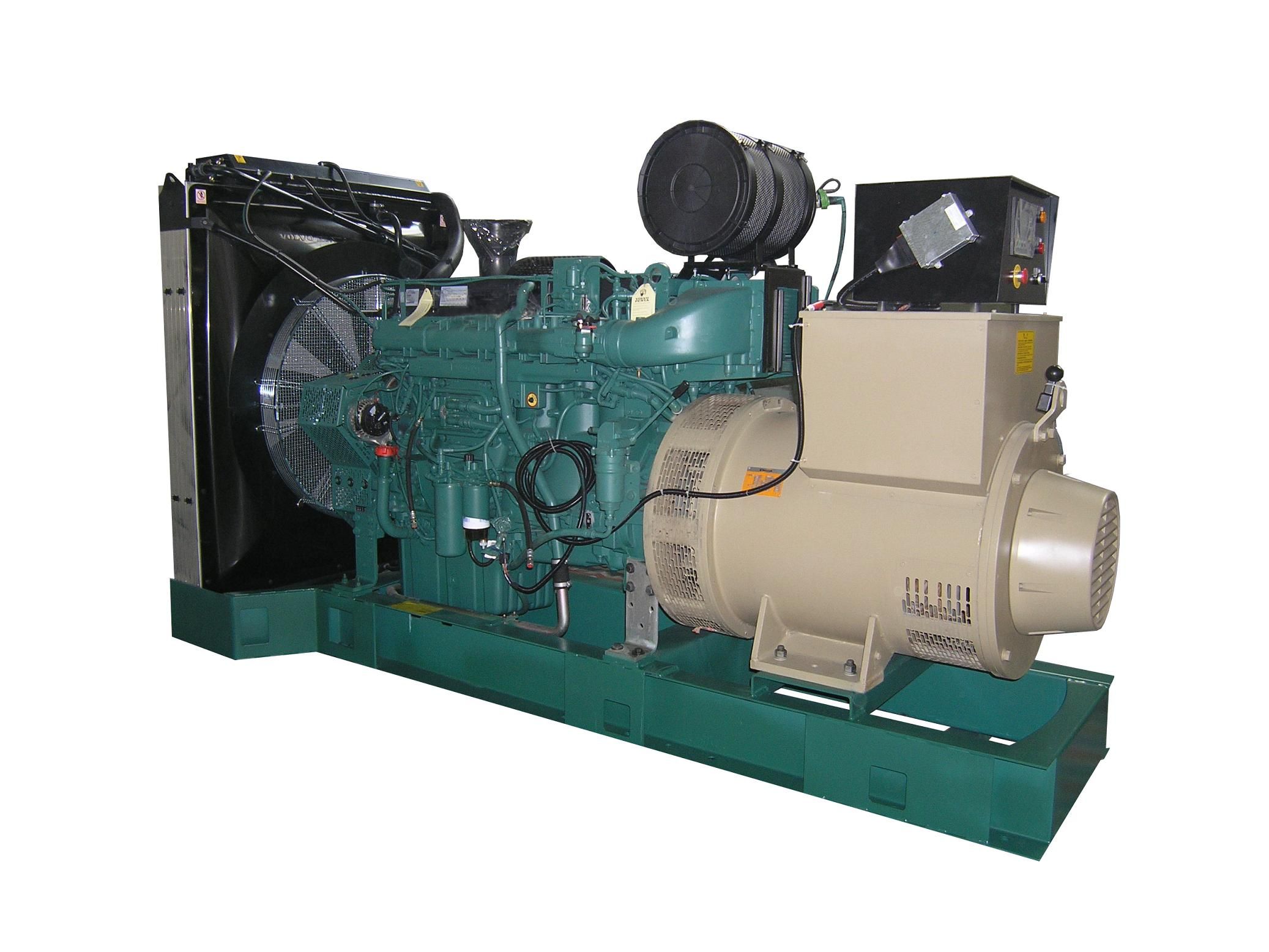

625kVA Volvo Petna Generator
Prime Power 625kVA
50Hz/1500rpm/400V
Prime power: Continuous running at variable load for unlimited periods with 10%
Overload available for 1 hour in any 12 hour period. In accordance with GB/T2820-2009.
Standby power: Continuous running at variable load for duration of an emergency.
No overload is permitted on these ratings.
Features:
Volvo Petna Engine:
Compact design, easy start & maintenance.
Low fuel consumption, low vibration & low noise.
Strong cold start, adaptable to different working conditions.
Low emissions-compliant with Europe stageII.
Global service network for excellent after-market service.
Faraday Alternator:
Compact, low noise, high reliability.
Class H insulation, IP23 protection.
Small voltage harmonic distortion of non-linear load.
2/3 pitch winding effectively removes the third harmonic voltage.
Damper winding excitation.
Comap control module:
Microprocessor based Intelligent controller.
Real-time display of engine and alternator operating parameters.
Monitor engine and alternator running status.
Gen-set alarming and performance message.
Manual and Automatic mode.
LCD display, LED indicator.
|
Gen-set |
|
Engine |
|
Brand WANDI |
Brand VOLVO PETNA |
|
Model |
|
WDV500 |
Model |
|
TWD1643GE |
|
Prime power |
KVA/KW |
625/500 |
Rated power(net) |
KVA/KW |
670/536 |
|
Standby power |
KVA/KW |
688/550 |
No. of cylinder |
|
6 |
|
Frequency |
Hz |
50 |
Cycle type |
|
4-cycle |
|
Rated voltage |
V |
400/230 |
Cylinder arrangement |
|
Vertical in line |
|
Rated current |
A |
900 |
Aspiration type |
|
Turbocharged |
|
Power factor |
COS Φ |
0.8(lag) |
Combustion system |
|
water cooled |
|
Fuel tank capacity |
L |
750 |
Speed mode |
|
EMS2 |
|
Sound pressure level LP |
dB(A)1m |
85 |
Bore |
mm |
144 |
|
Alternator |
Stroke |
mm |
165 |
|
Brand |
FARADAY |
Compression ratio |
|
16.5:1 |
|
Model |
FD5L |
Displacement |
L |
16.12 |
|
Connecting type |
3 phase and 4 wires |
Engine oil capacity |
L |
48 |
|
Excitation type |
brushless, self excited |
Total coolant capacity |
L |
95 |
|
Steady voltage regulation |
≤1% |
Exhaust smoke |
|
1bosch |
|
Transient voltage regulation |
≤±25% |
Lubrication consumption |
L/H |
0.1 |
|
Frequency recovery time |
≤3s |
Fuel consumption |
g/kw@h |
199 |
|
Protection |
IP23 |
Cooling max water temperature |
ºC |
104 |
|
Insulation |
Class H |
Governor type |
|
Electronic |
|
Overload capacity |
≤10% |
Start mode |
|
Electronic |
|
|
|
Emission standards |
|
Europe stageII |
|
Dimension/weight |
|
|
Open type |
Soundproof canopy type |
|
Dimension(L*W*H) |
mm |
3450*1400*1930 |
Dimension(L*W*H) |
mm |
4700*2100*2450 |
|
Net weight |
kg |
3850 |
Net weight |
kg |
6150 |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
