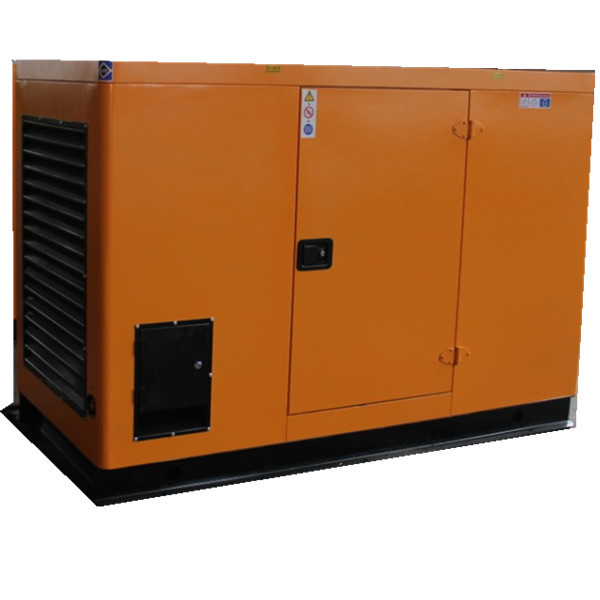

60kVA Diesel Generator Set with Shanghai Diesel Engine
Optional Configuration
1. Alternator: Stamford, Stamford, Marathon, Shanghai Lingyu...
2. Control: Deepsea, Comap, Smartgen, ATS, or regular control panel
3. Fuel Tank: Base fuel tank, Split type fuel tank,
4. Soundproof canopy
5. Mobile Trailer or with soundproof canopy
6. Regular Canopy
Description & Feature:
Control Systems:
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
ATS(Fully Automatic) is the configuration with LCD automatic control panel for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Soundproof Canopy
All metal canopy parts painted by electrostatic polyester power paint
Soundproof design ensure that the noise level be controlled in small scope
Convenient to lift and move
Easy to maintenance and operate
Protection of the Environment
Base fuel tank
Base frame including position for forklift and crane
Integral fuel tank
Daily fuel tank continuously supply for 8-24 hours
Fuel tank easy to maintain and clean
Anti-vibration pads are flexed between engine and alternator.
Split type fuel tank
Daily fuel tank continuously supply for 8-24 hours
Easy to maintain and clean
Increase oil
|
Diesel Generator Set Technology Parameters |
|
Type of Set |
KC48GF |
|
Frequency(Hz)/Speed (rpm) |
50 / 1500 |
|
Startup mode |
DC24V Electric start |
|
Power (KVA) |
60 |
|
Output Voltage(V) |
400 / 230 |
|
Maximum continuous output current(A) |
86 |
|
Noise LP7m (dB) |
≤113 |
|
Dimensions for set(LXBXH)(mm) |
|
|
Weight for set(KG) |
|
|
Diesel Engine Technology Parameters |
|
Engine |
Shanghai Diesel Engine |
|
Type |
SC4H95D2 |
|
Standby Power(KVA) |
122 |
|
Air discharge (L) |
4.3 |
|
Number of cylinder |
6 |
|
Configuration |
In-line |
|
Stroke |
4 |
|
Rated speed(rpm) |
1500 |
|
Boke/Stroke(mm) |
105/124 |
|
Compression ratio |
17.3:1 |
|
Fuel Consumption |
≤205 |
Yangzhou Kangcheng Power Equipment Co., Ltd. is a professional manufacturer of Generating Set, welcome to contact us for details!
Established in 2004, Yangzhou Kangcheng Power Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of diesel generator sets. We are located in Xiancheng Town Yangzhou City, Jiangsu Province, China, with convenient transportation access.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, our products have passed the ISO9001&2000 certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia and so on.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
